Driving Position Memory Switch Circuit (w/ Memory)

Driving Position Memory Switch Circuit (w/ Memory)

DESCRIPTION

The body ECU (Main) detects the condition of the driving position memory switch, and sends the information to the power seat control ECU, tilt and telescopic ECU and mirror control ECU via the multiplex communication circuit.

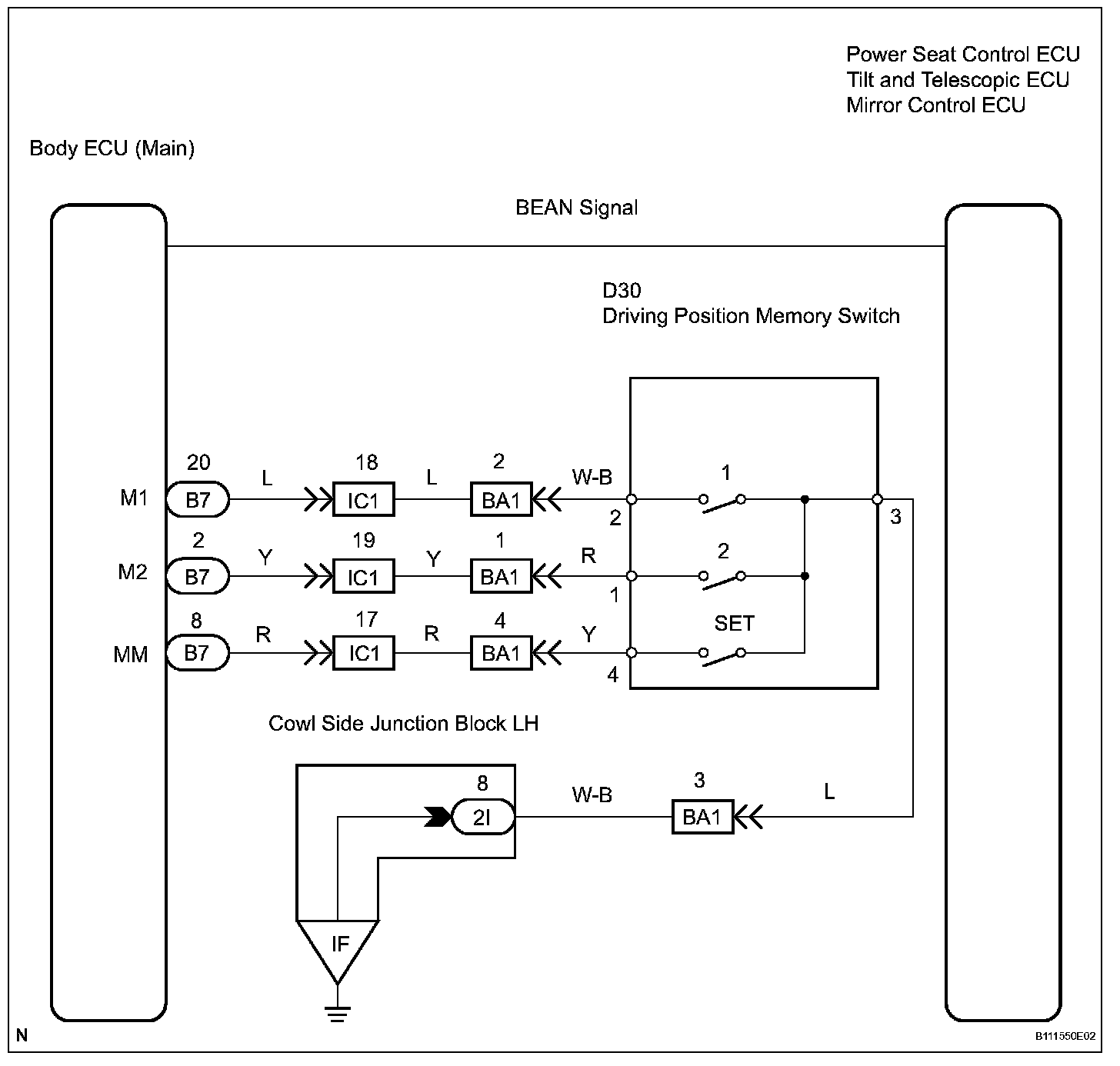

WIRING DIAGRAM
