Overhaul

Outer Rear View Mirror:

DISASSEMBLY

1. DISCONNECT MIRROR

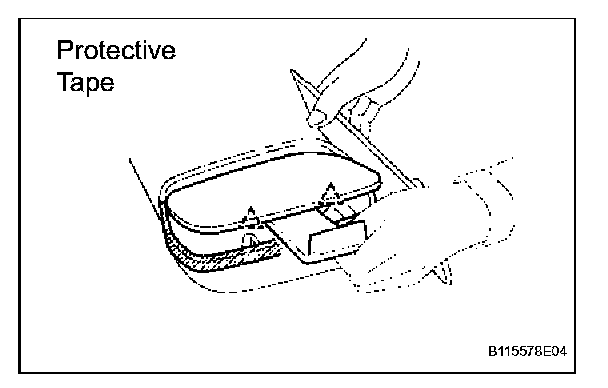

a. Using a moulding remover, detach the 2 claws.

HINT: Apply protective tape to the mirror body.

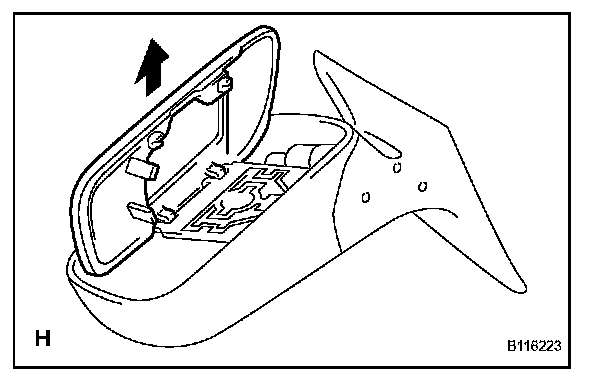

b. Pull up the mirror and disconnect it.




c. Disconnect the mirror connector.

REASSEMBLY

1. CONNECT MIRROR




a. Connect the mirror connector.

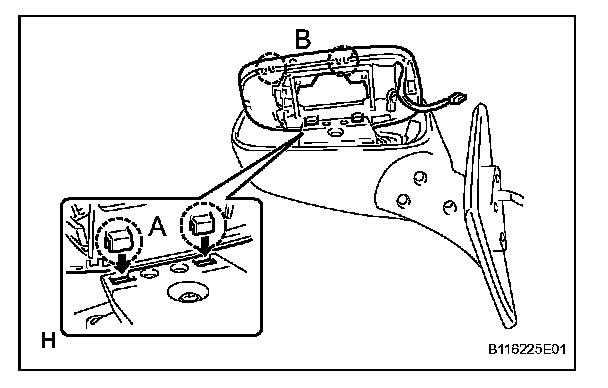

b. Attach the claws labeled A, and set the mirror to the mirror body.
c. Push the mirror to attach the claws labeled B and set it.
