Vehicle Position Is Deviated From Correct Point Badly

Vehicle Position is Deviated from Correct Point Badly

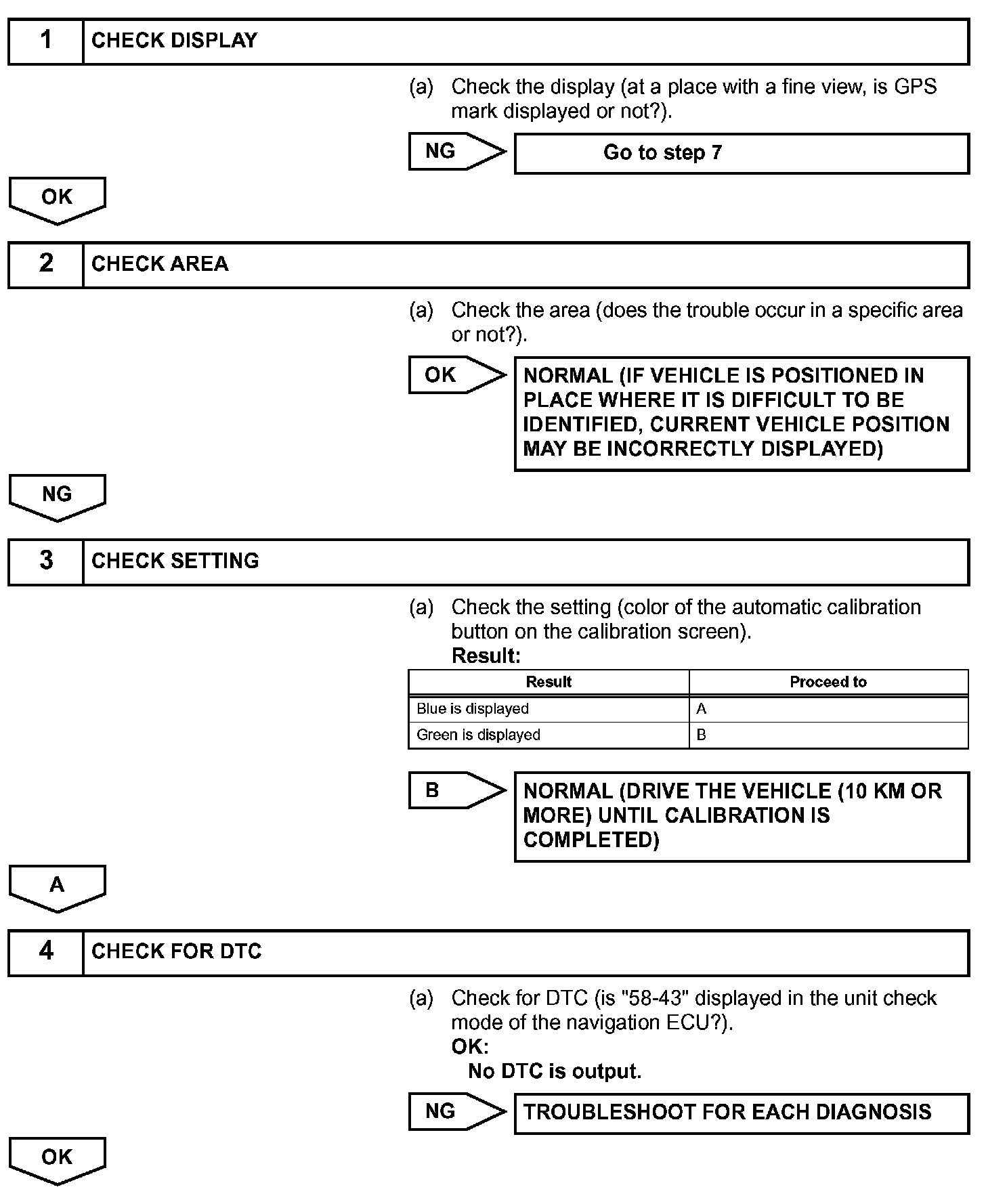

Step 1-4:

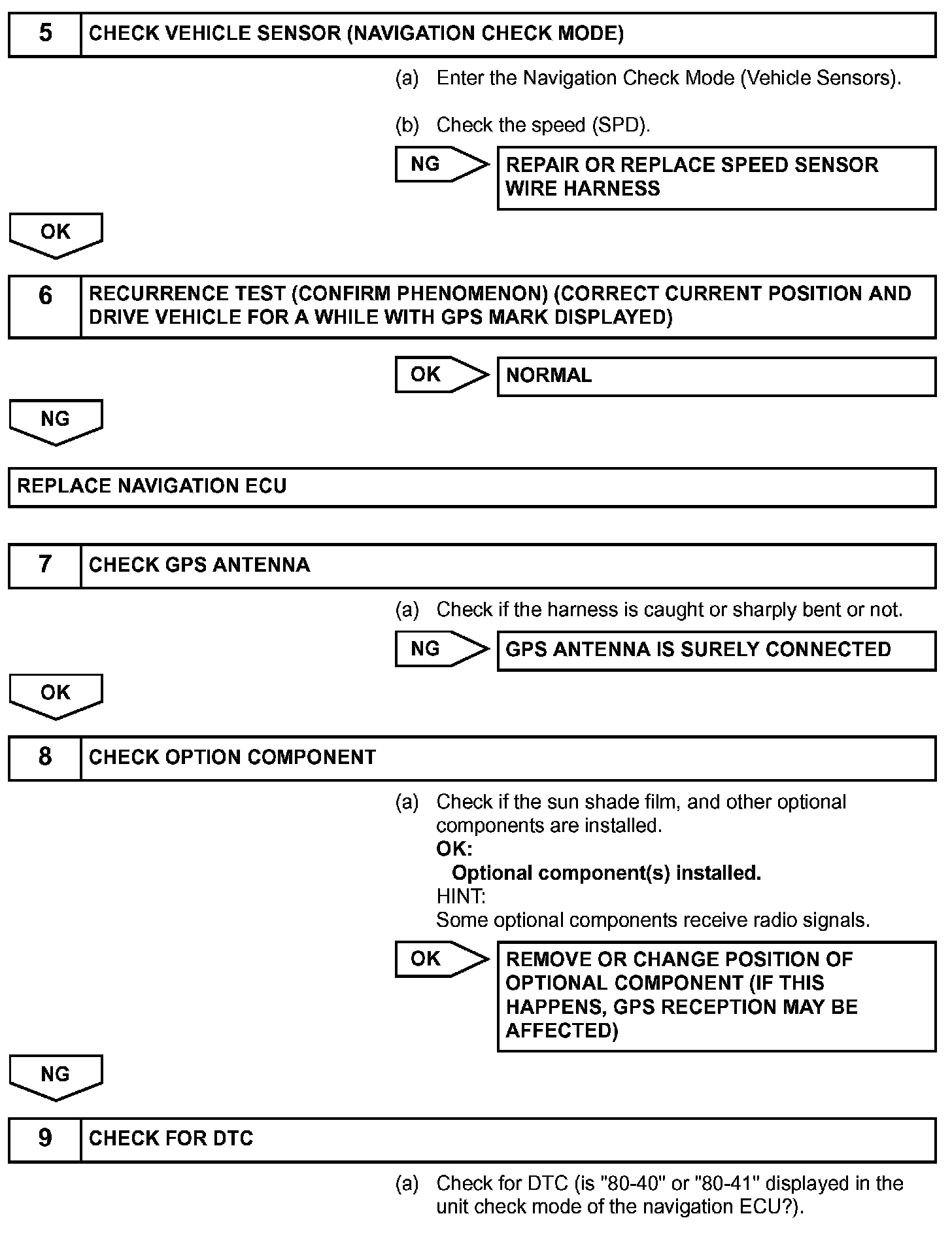

Step 5-9:

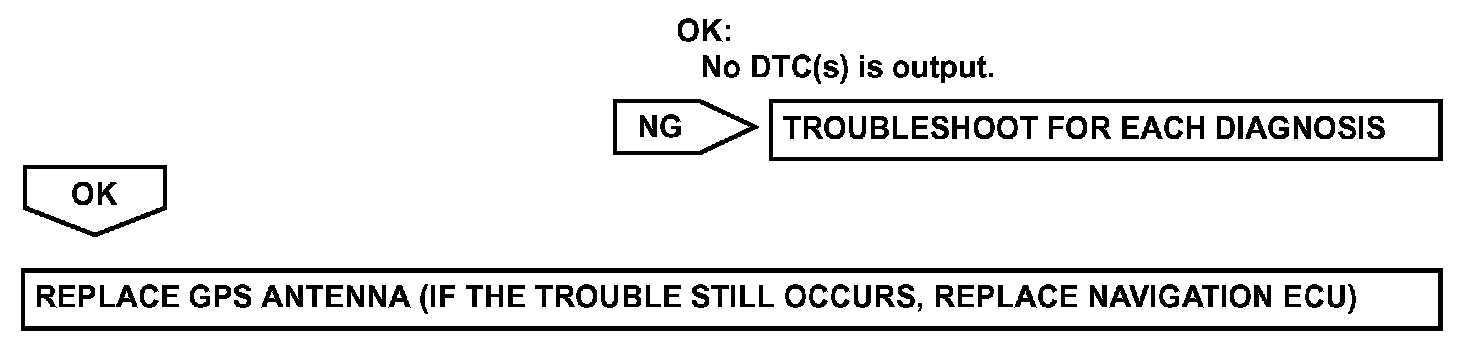

Step 9(continued):




INSPECTION PROCEDURE
