Emergency Contact Button: Service and Repair

Mayday Switch:

MAYDAY SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE MAP LIGHT ASSEMBLY

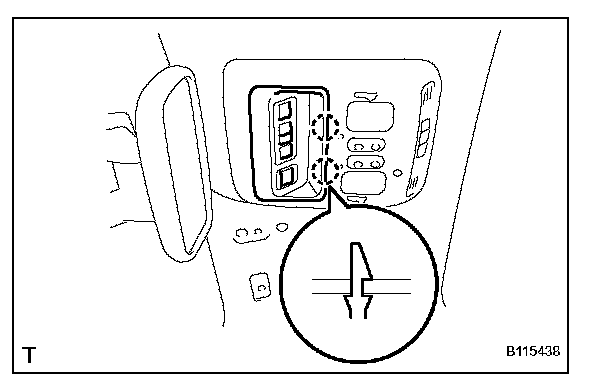

a. Using a screwdriver, detach the 2 claws and open the cover.

HINT: Tape the screwdriver tip before use.




b. Remove the bolt.

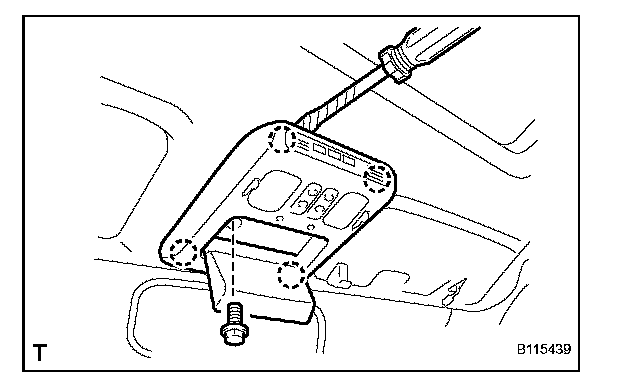

c. Using a screwdriver, detach the 4 clips and remove the map light. Then disconnect connector.

HINT: Tape the screwdriver tip before use.

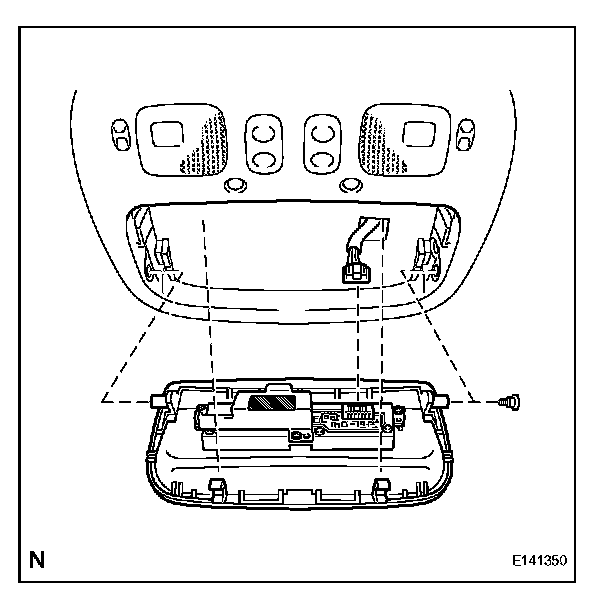

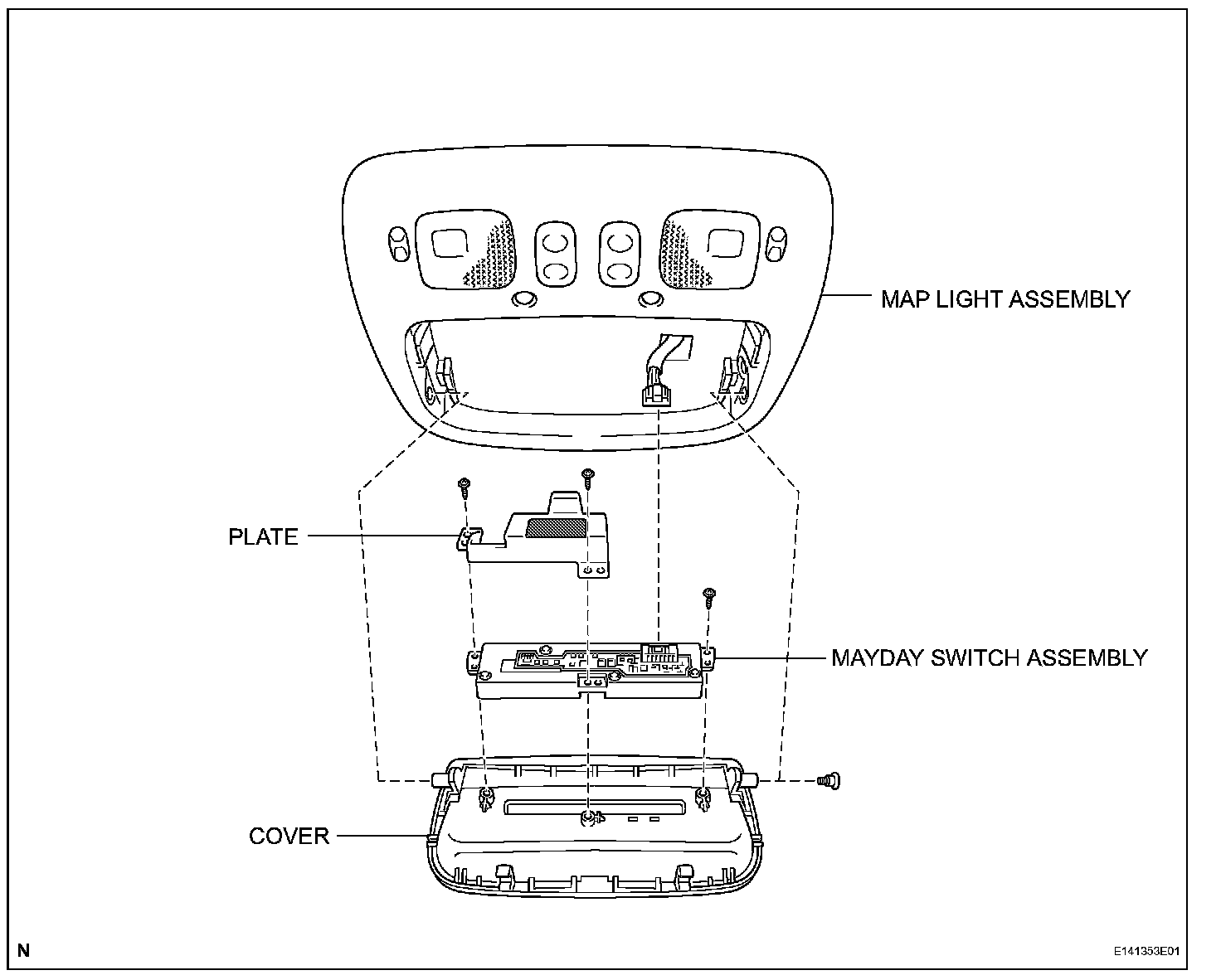

3. REMOVE MAYDAY SWITCH ASSEMBLY




a. Disconnect the connector.
b. Remove the screw and cover.

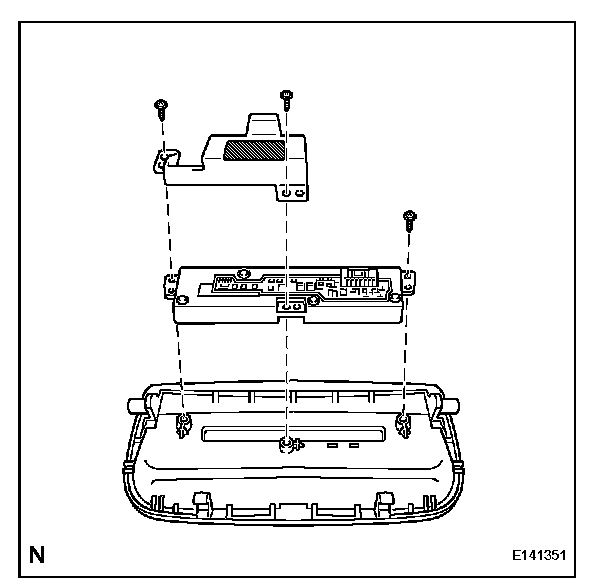

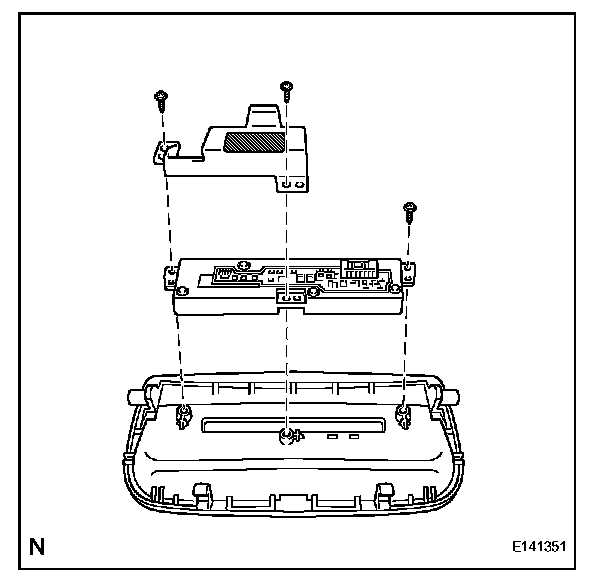

c. Remove the 3 screws, plate and switch.

INSTALLATION

1. INSTALL MAYDAY SWITCH ASSEMBLY




a. Install the plate and switch with the 3 screws.




b. Install the cover with the screw.
c. Connect the connector.

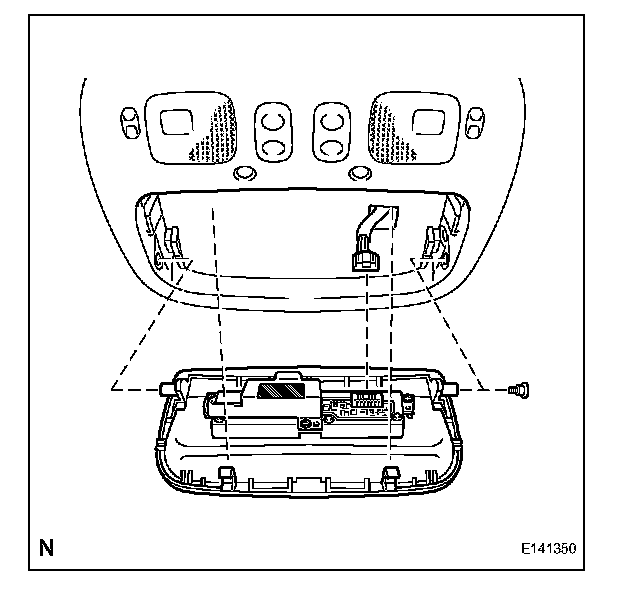

2. INSTALL MAP LIGHT ASSEMBLY




a. Connect the connector.

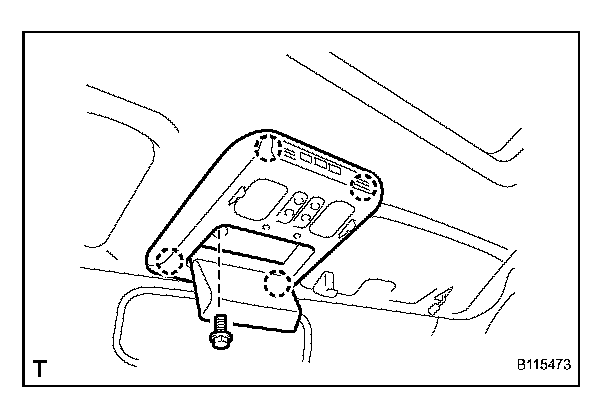

b. Attach the 4 clips to install the map light.
c. Install the bolt.

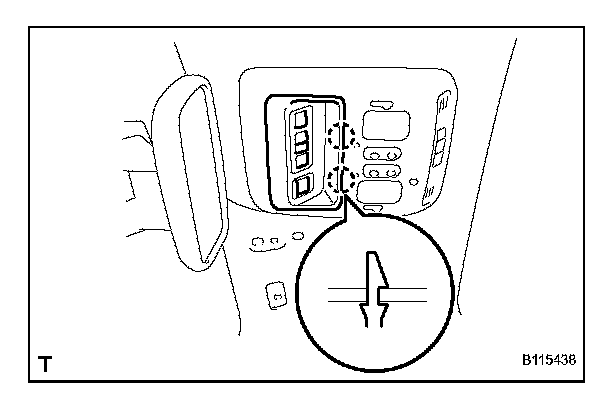

d. Attach the 2 claws to close the cover.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION
a. Perform initialization. Testing and Inspection

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
