Unlock Warning Switch

INSPECTION

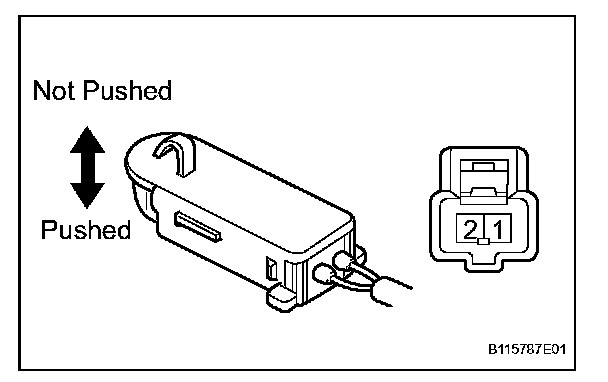

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

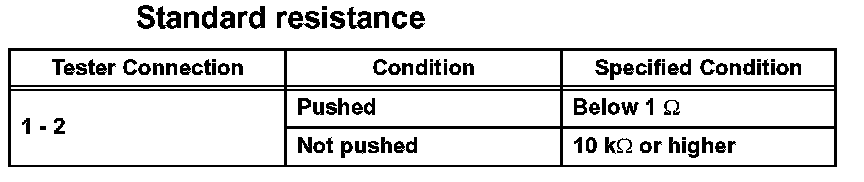

a. Measure the resistance of the switch.







If the result is not as specified, replace the switch.
