Lexus Truck
>>
2007
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Keyless Entry
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Wireless Door Lock Control System
Wireless Door Lock Control System

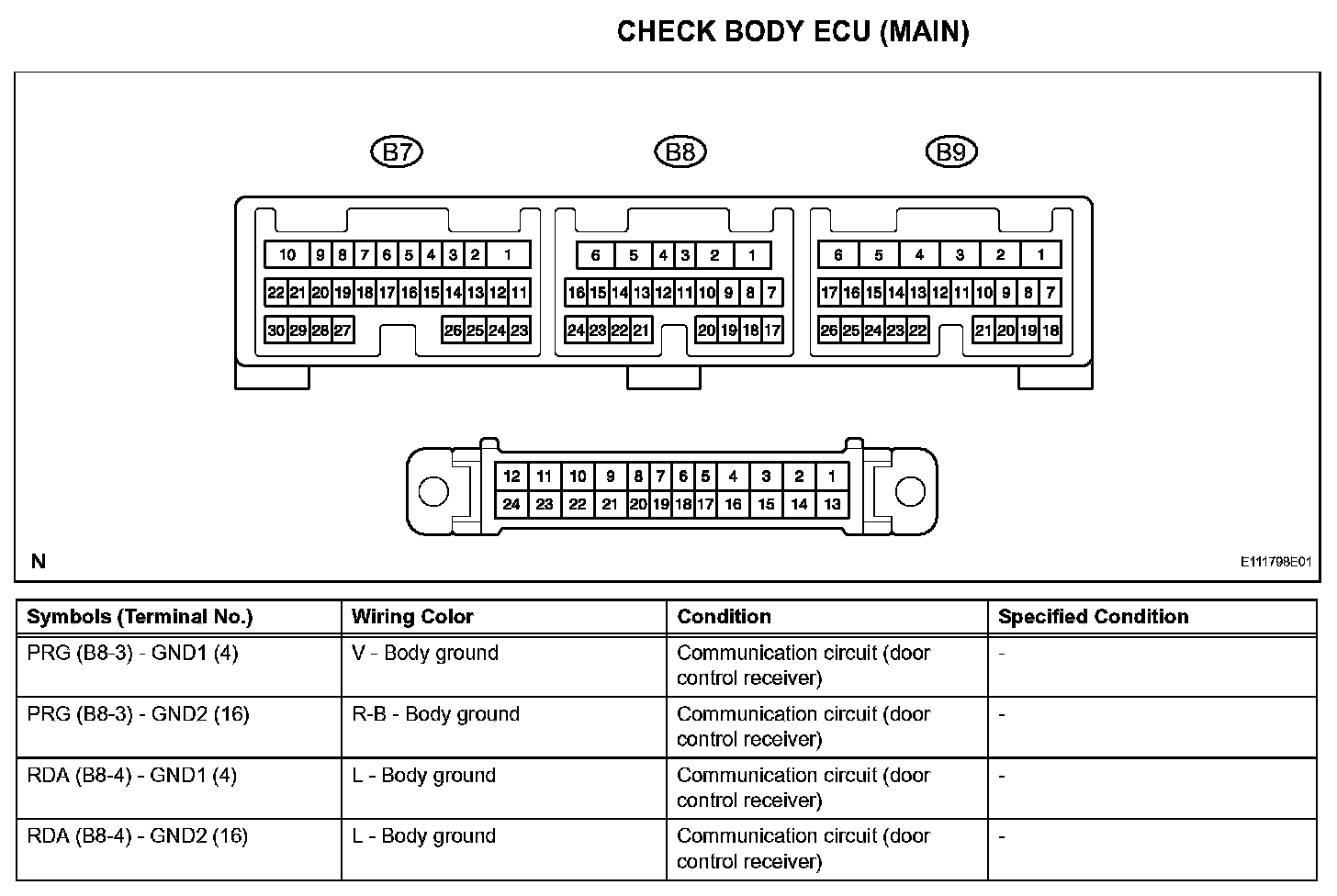

Terminals Of Control Module/Pinouts-Check Body ECU (Main):
