Ignition Key In Signal: Service and Repair

Unlock Warning Switch:

UNLOCK WARNING SWITCH

REMOVAL

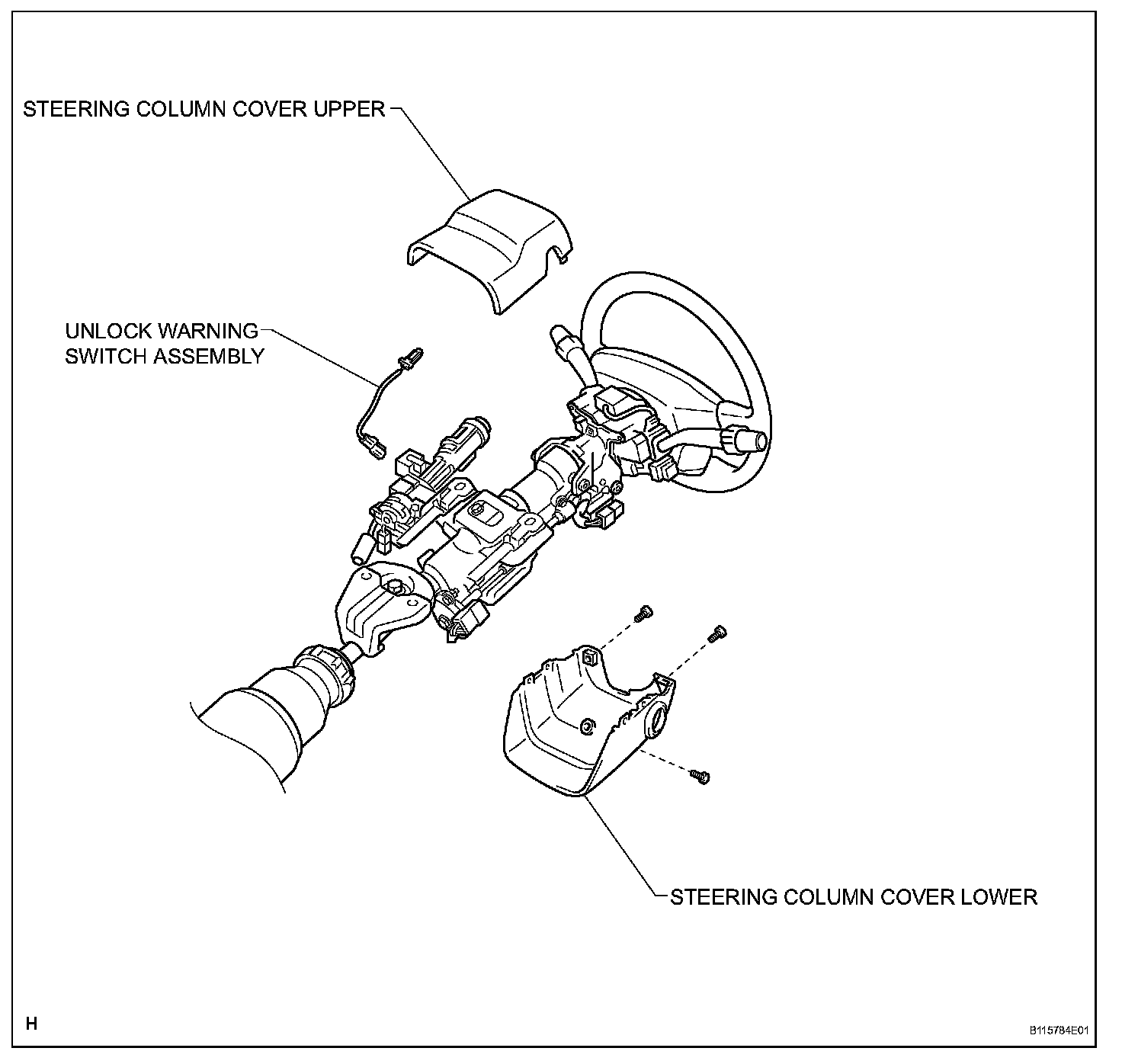

1. REMOVE STEERING COLUMN COVER
a. Remove the 3 screws, steering column cover lower and steering column cover upper.

2. REMOVE UNLOCK WARNING SWITCH ASSEMBLY
a. Slide out the switch

INSTALLATION

1. INSTALL UNLOCK WARNING SWITCH ASSEMBLY
a. Slide in the switch.

2. INSTALL STEERING COLUMN COVER
a. Install the steering column cover lower and steering column cover upper with the 3 screws.
