Symptom Index

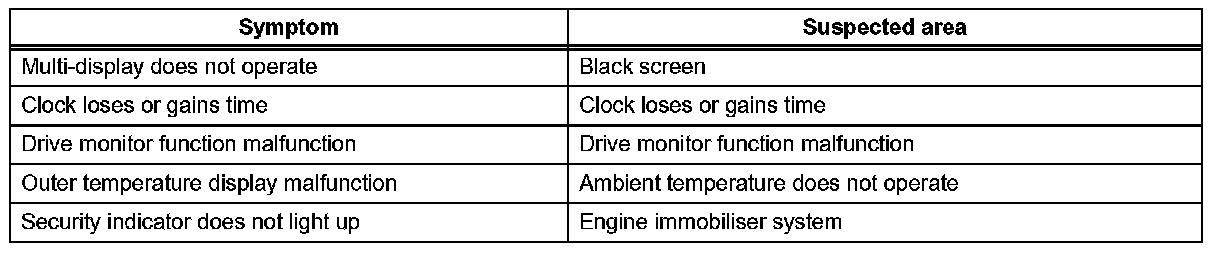

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table-Multi-Display:

HINT:
- For vehicle equipped with a navigation system, refer to "Navigation System" when inspecting the multi-display.
- Use the table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the ''Suspected Area'' column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
