Body - Power Window Initialization Procedure

PRE-DELIVERY SERVICE
PD016-05

March 25, 2005

Title:
INITIALIZATION OF POWER WINDOW DURING PDS

Models:
'06 RX 400h

Introduction

During Pre-Delivery Service (PDS), initialize the driver's door power window after installing the Short Pin in its original location.

The installation of the Short Pin will enable the "one-touch open and close" and "jam protection" functions of each door's power window.

NOTE:
Any time the battery terminal has been disconnected, initialize each door's power window after reconnecting the battery terminal.

Applicable Vehicles
^ 2006 model year RX 400h vehicles.

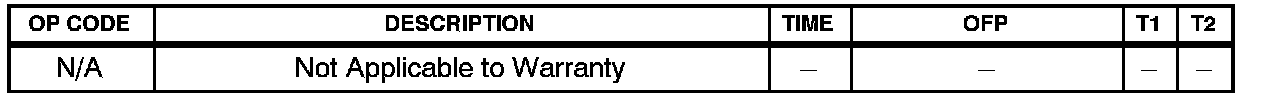

Warranty Information

Initialization Procedure

With ignition switch in the "ON" position, do the following:

NOTE:

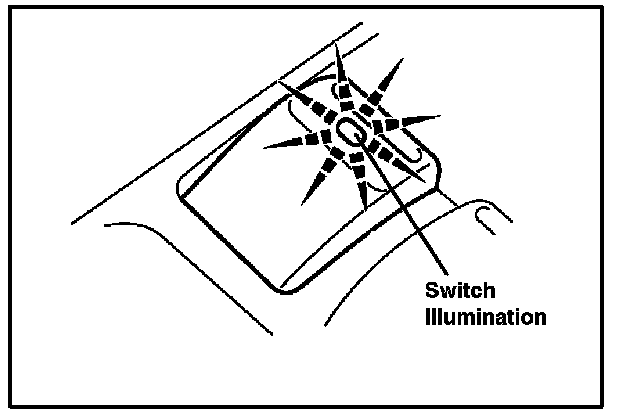

If the power windows have not been initialized, the driver's door power window switch should be blinking.





1. Push the driver's door power window switch to open the window.

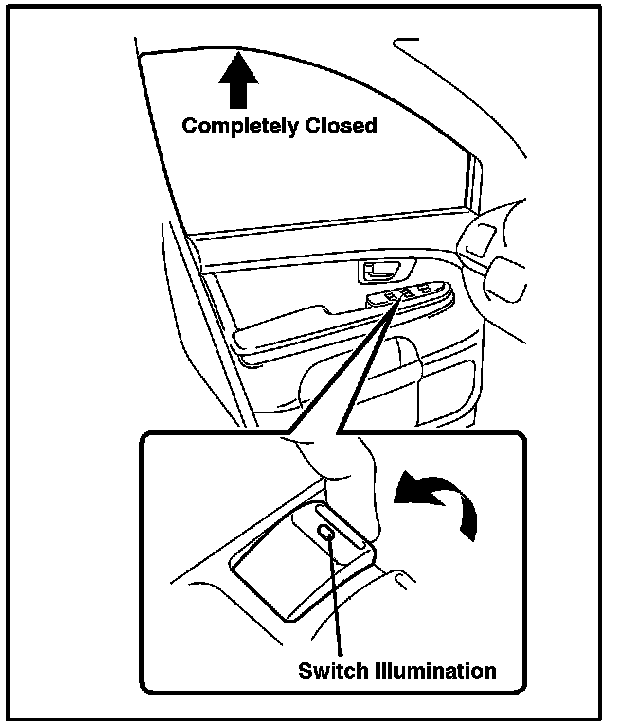

2. Pull up the driver's door power window switch until the window closes, and hold it for approximately one second. At this time, the driver's door power window switch illumination changes from blinking to constant illumination.

NOTE:
^ When the battery terminal has been disconnected, pull up each door's power window switch until the window closes, and hold it for approximately one second.

^ At this time, each door's power window switch illumination changes from blinking to constant illumination.

3. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE:
Jam protection function becomes effective through the above initialization procedure.
