RX 400h FWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Fusible Link Block
Fusible Link Block

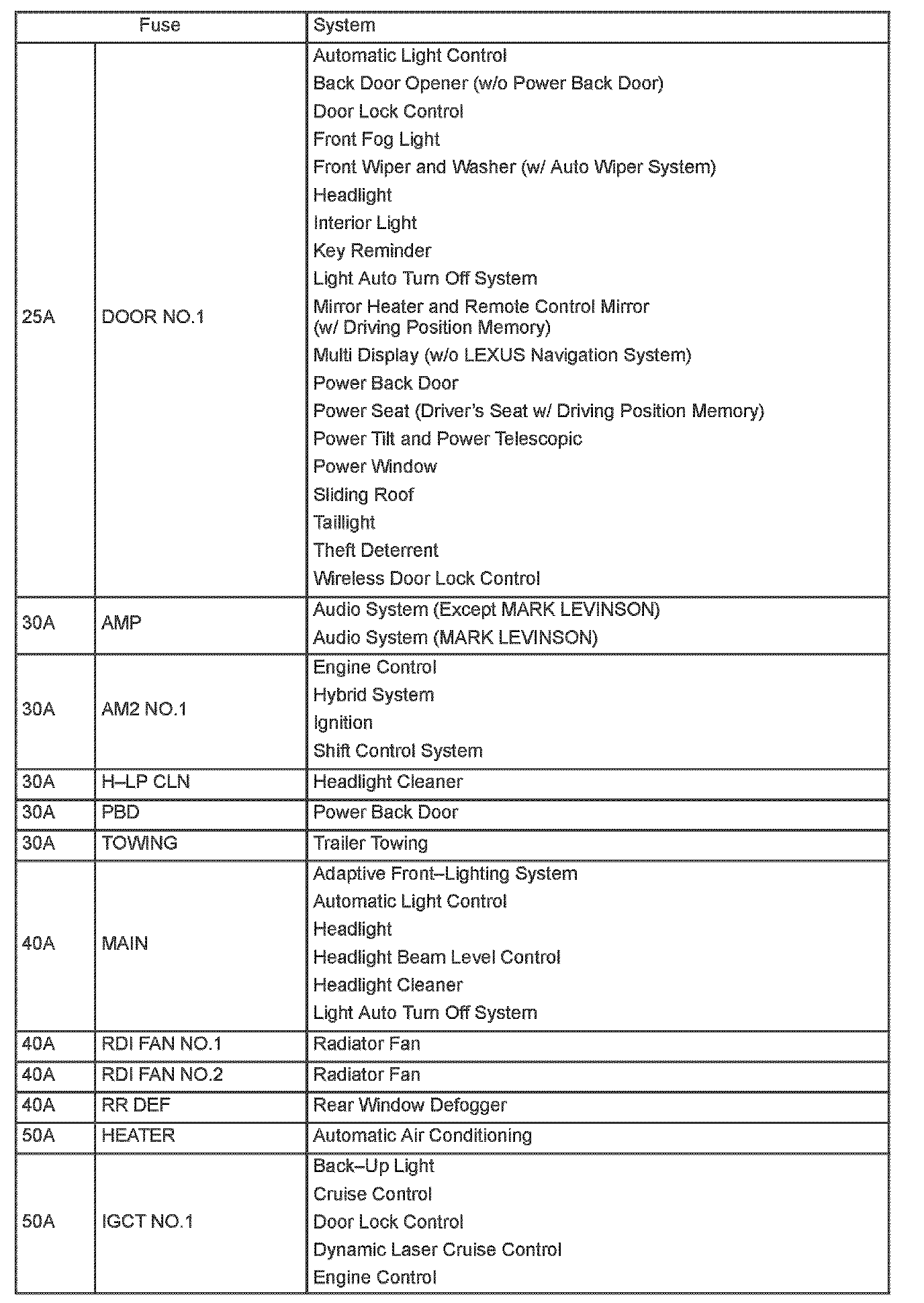

Fusible Link Block (Part 1):

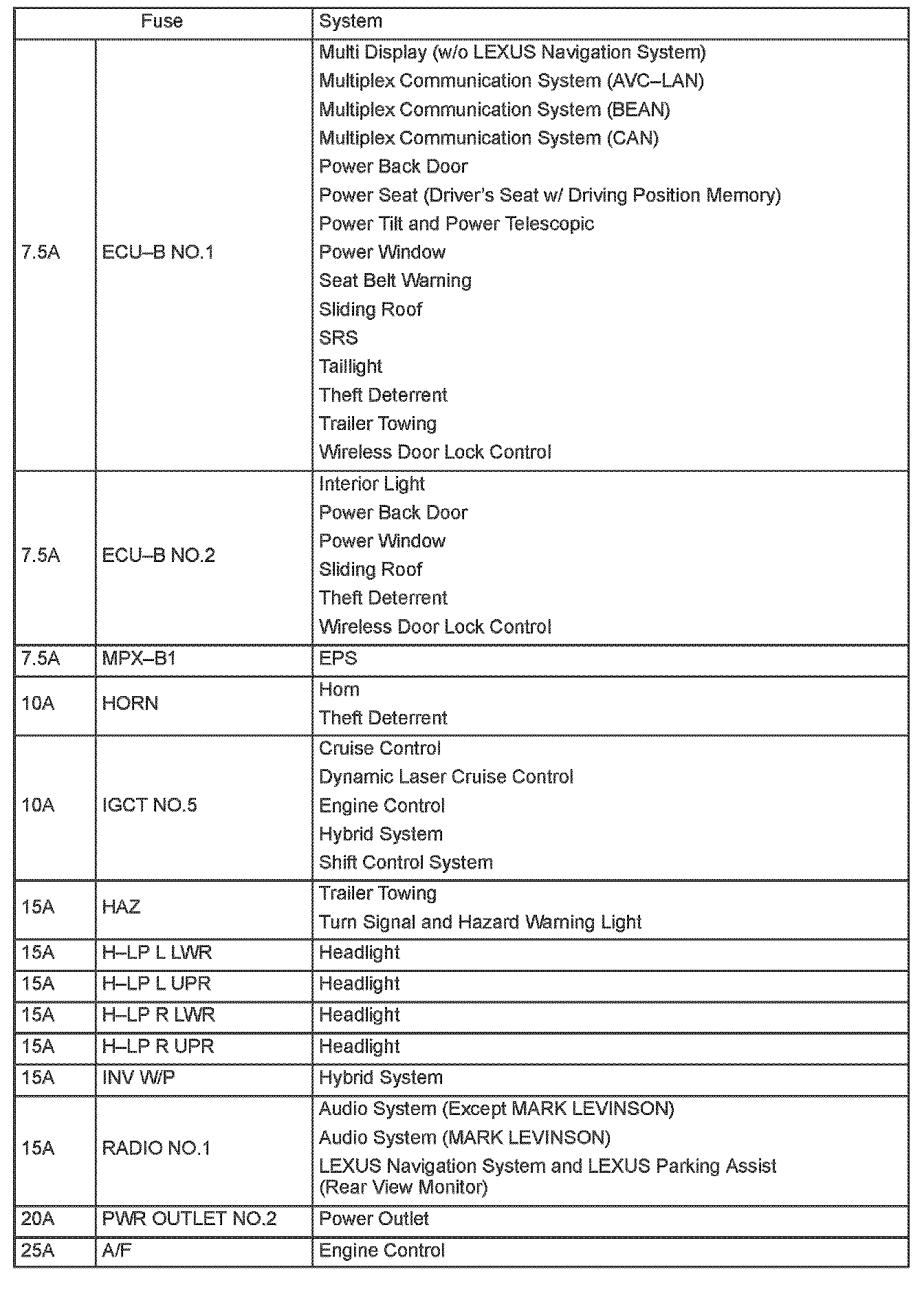

Fusible Link Block (Part 2):

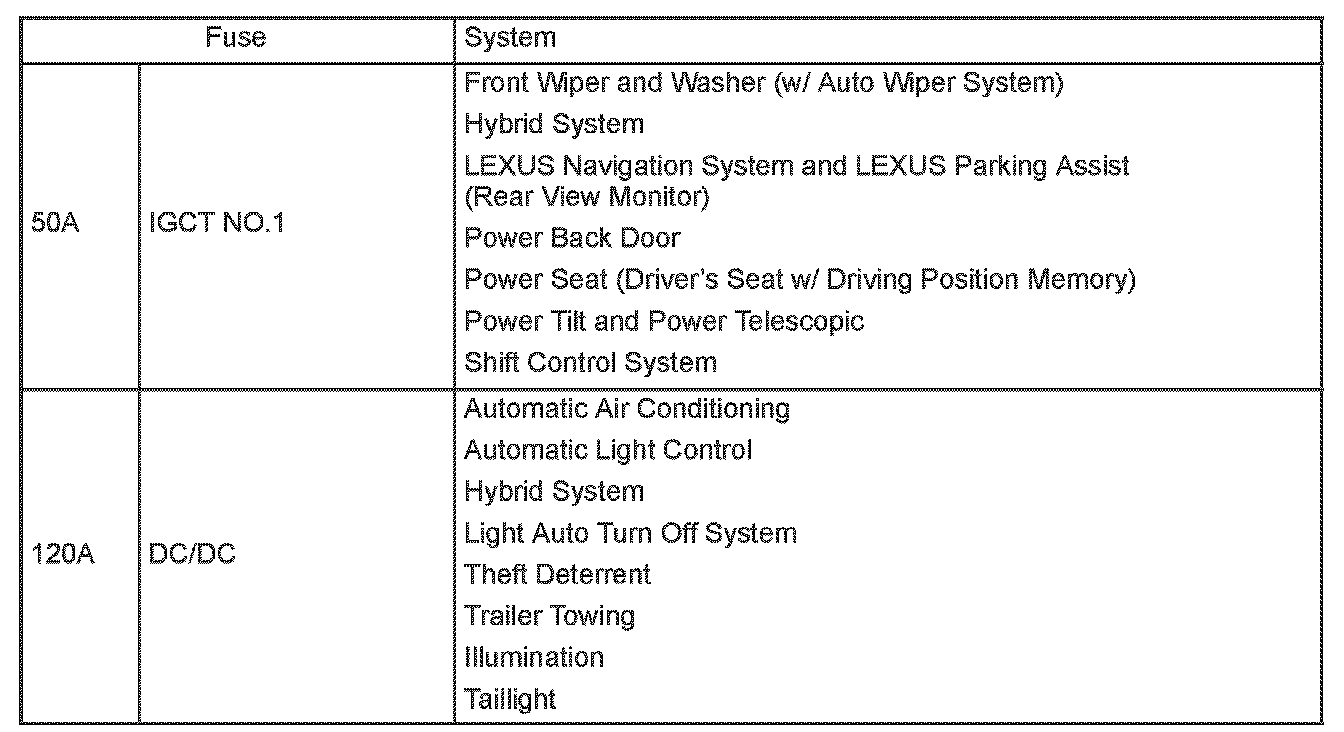

Fusible Link Block (Part 3):

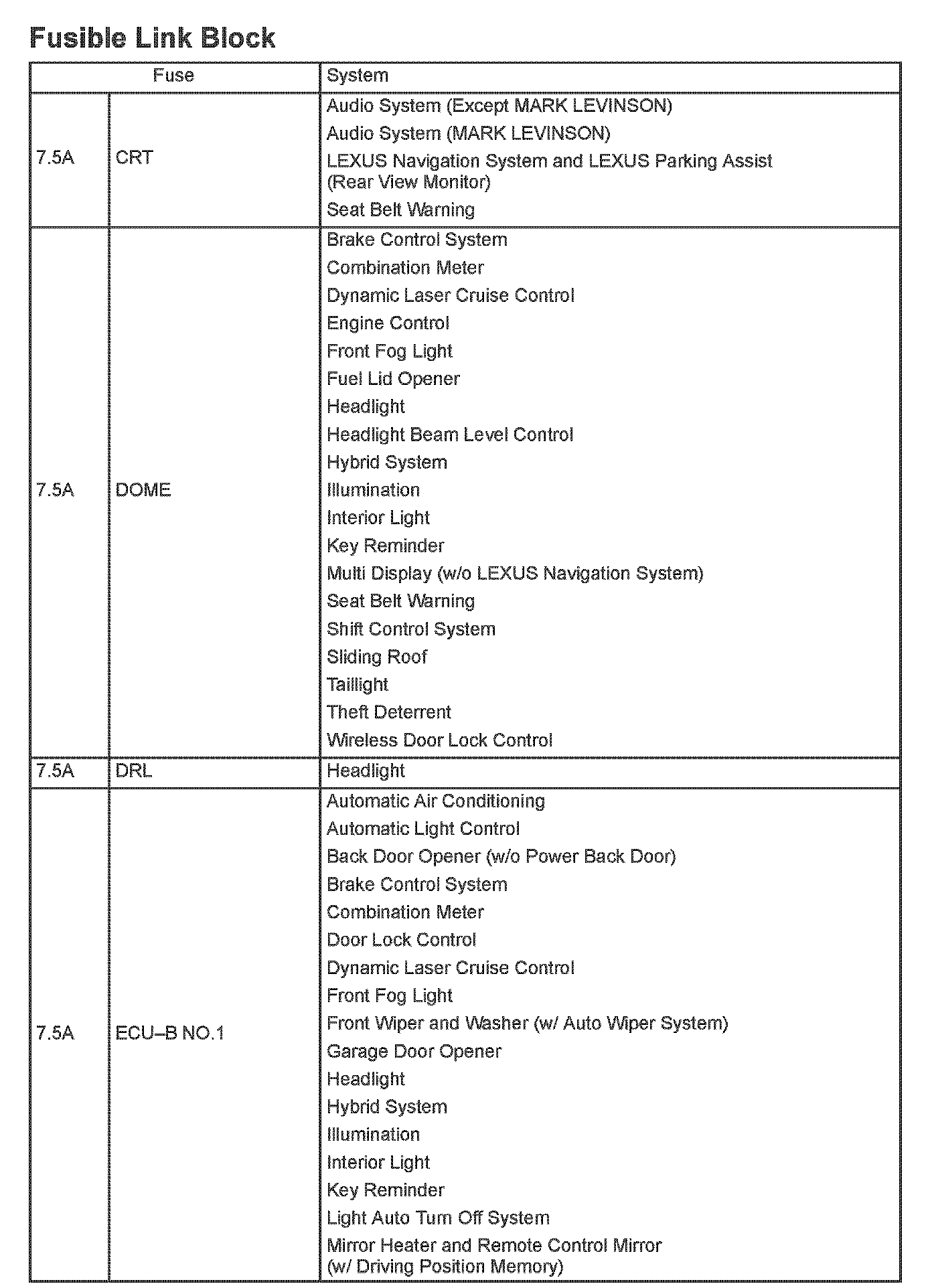

Fusible Link Block (Part 4):
