Disassembly and Reassembly

DISASSEMBLY

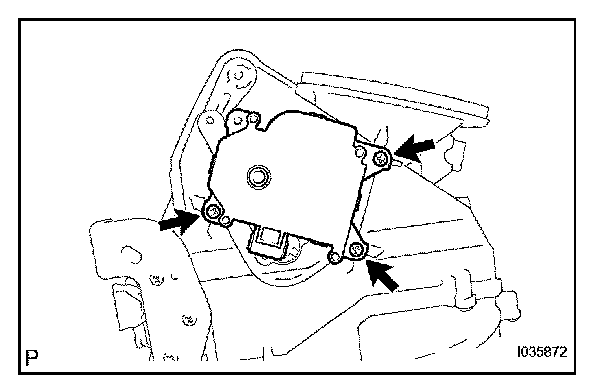

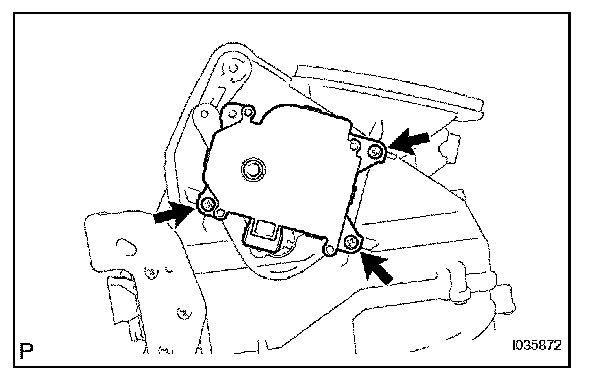

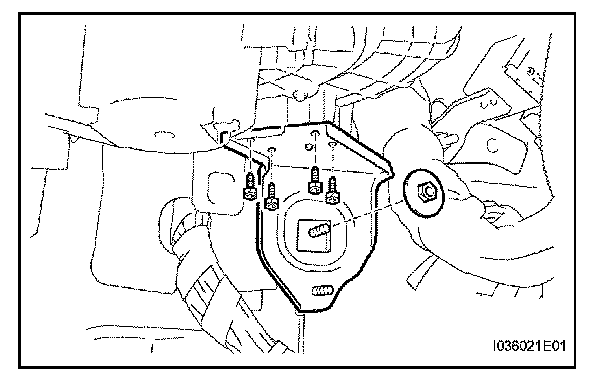

1. REMOVE AIR INLET SERVO MOTOR




a. Remove the 3 screws and air inlet servomotor.

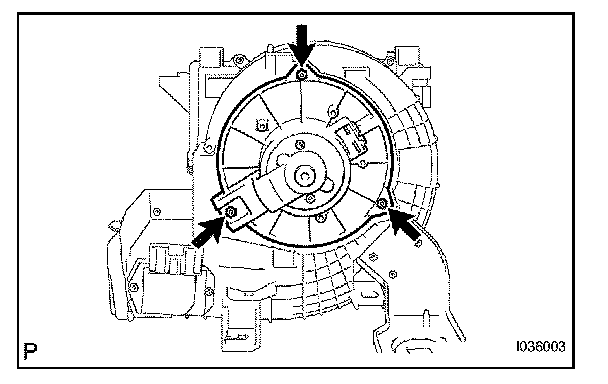

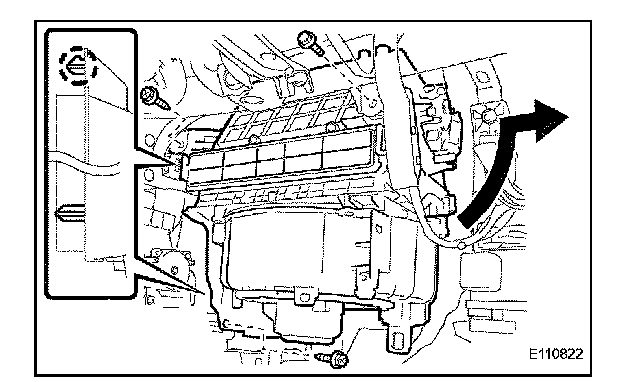

2. REMOVE COOLING UNIT MOTOR WITH FAN SUBASSEMBLY




a. Remove the 3 screws and cooling unit motor with fan sub-assembly.

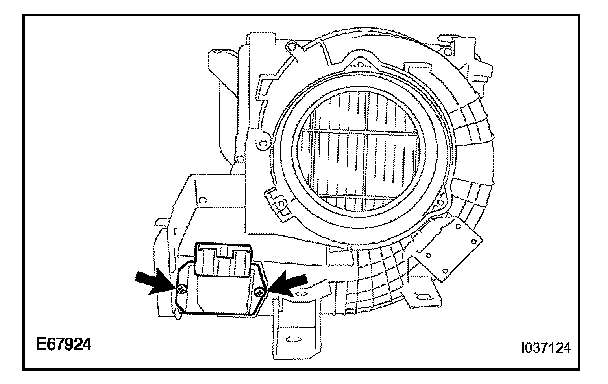

3. REMOVE BLOWER MOTOR CONTROL




a. Remove the 2 screws and blower motor control.

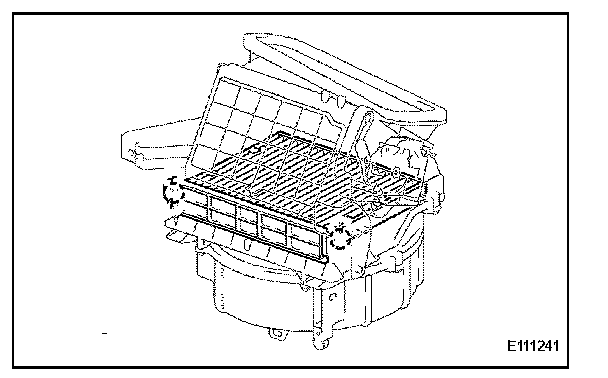

4. REMOVE CLEAN AIR FILTER




a. Release the 2 claws and remove the air filter subassembly.

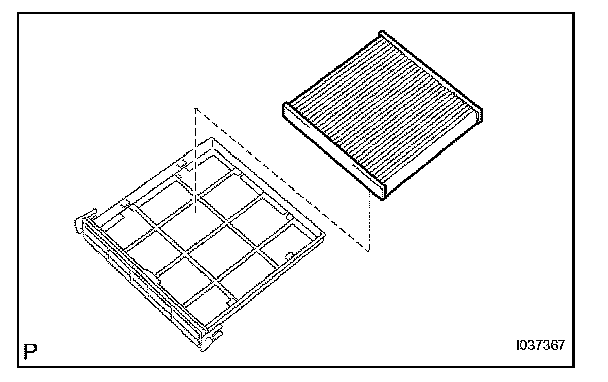

b. Remove the air refiner element from the air filter cover plate.

REASSEMBLY

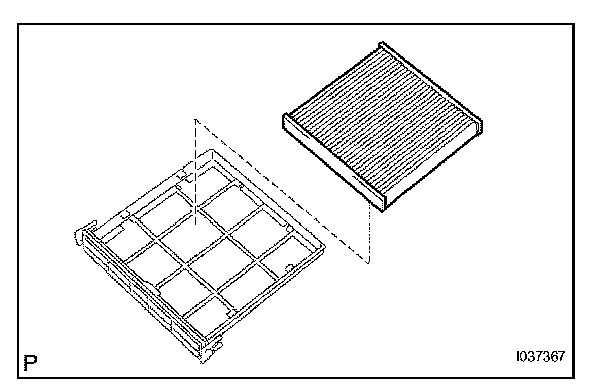

1. INSTALL CLEAN AIR FILTER




a. Install the clean air filter.
b. Engage the 2 claws to install the air filter subassembly.

2. INSTALL BLOWER MOTOR CONTROL




a. Install the blower motor control with the 2 screws.

3. INSTALL COOLING UNIT MOTOR WITH FAN SUBASSEMBLY




a. Install the cooling unit motor with fan sub-assembly with the 3 screws.

4. INSTALL AIR INLET SERVO MOTOR




a. Install the air inlet servomotor with the 3 screws.
