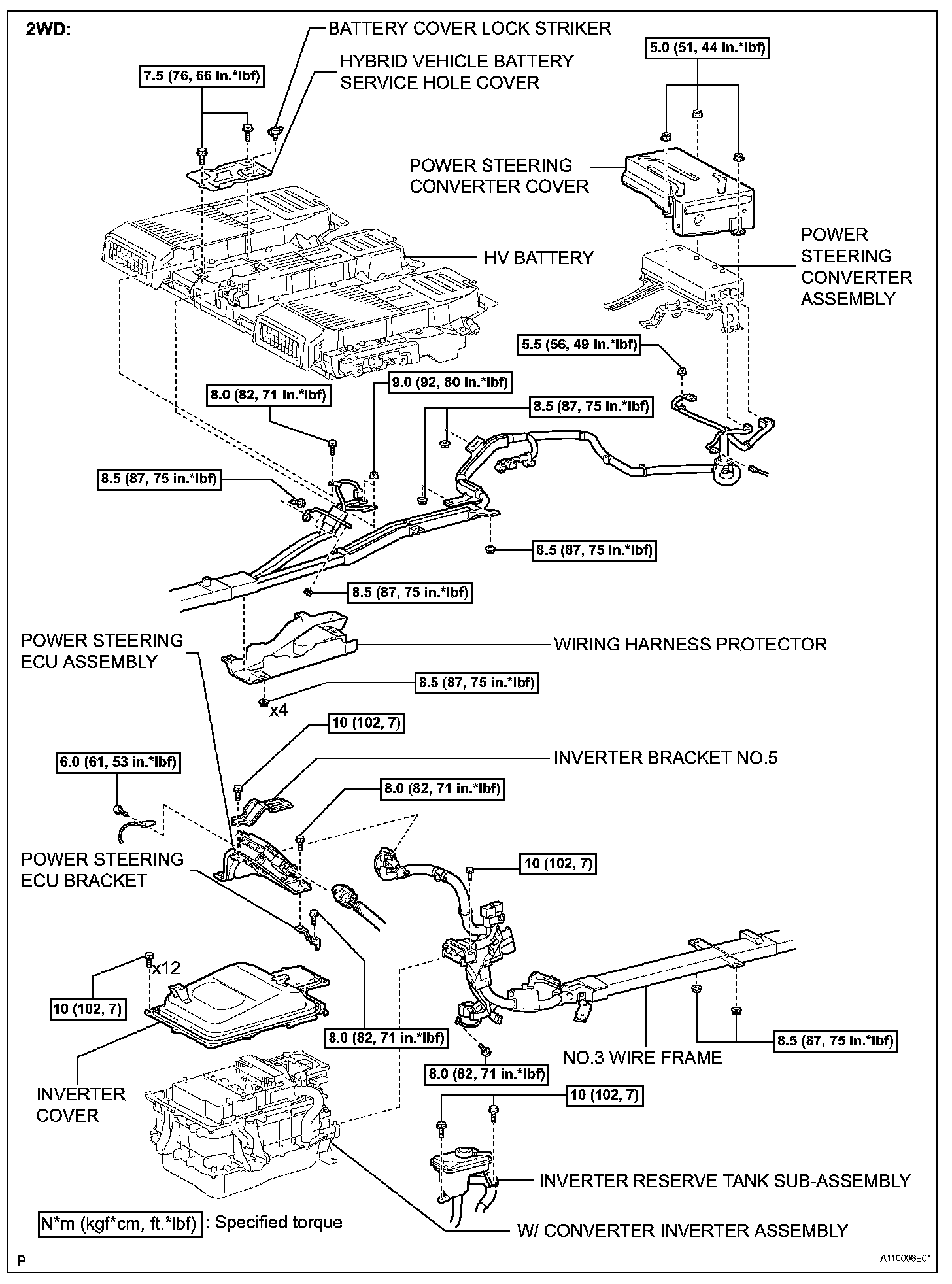

Hybrid Battery Bus / Cable
>>
System Diagram
System Diagram
Frame Wire:
Frame Wire:
Frame Wire:
Frame Wire:
Frame Wire:
