Lexus Truck
>>
2006
>>
RX 400h FWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Auxiliary Water Pump
Auxiliary Water Pump

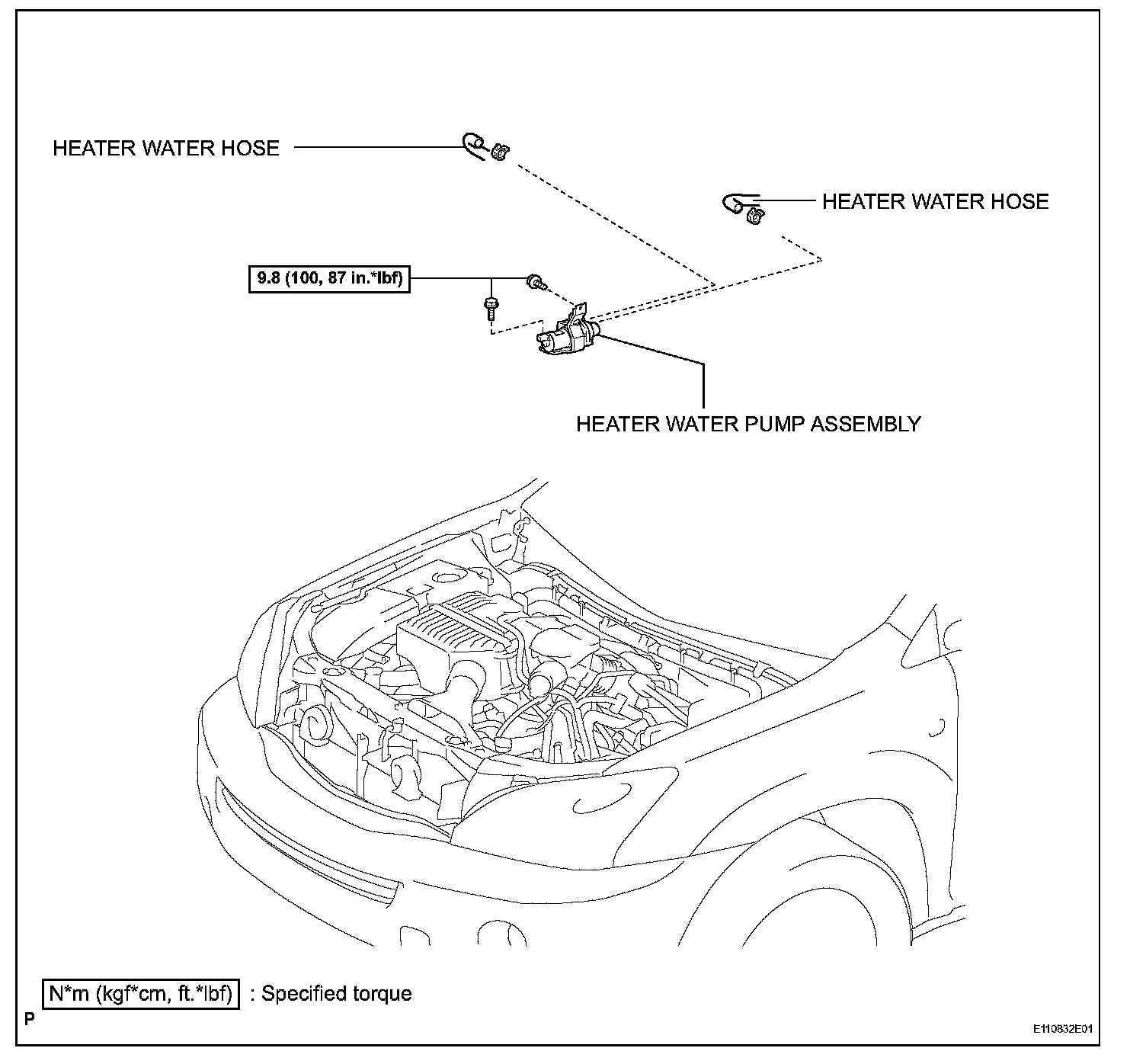

Heater Water Pump:
Heater Water Pump:
Heater Water Pump:
Heater Water Pump:
