Electronically Controlled Brake System
PROBLEM SYMPTOMS TABLEIf there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
NOTICE: When replacing the skid control ECU, sensor, etc., turn the ignition switch Off.
HINT:
Inspect the fuse and relay before investigating the suspected areas as shown in the table.
Inspect each malfunctioning circuit in numerical order for the corresponding symptom.

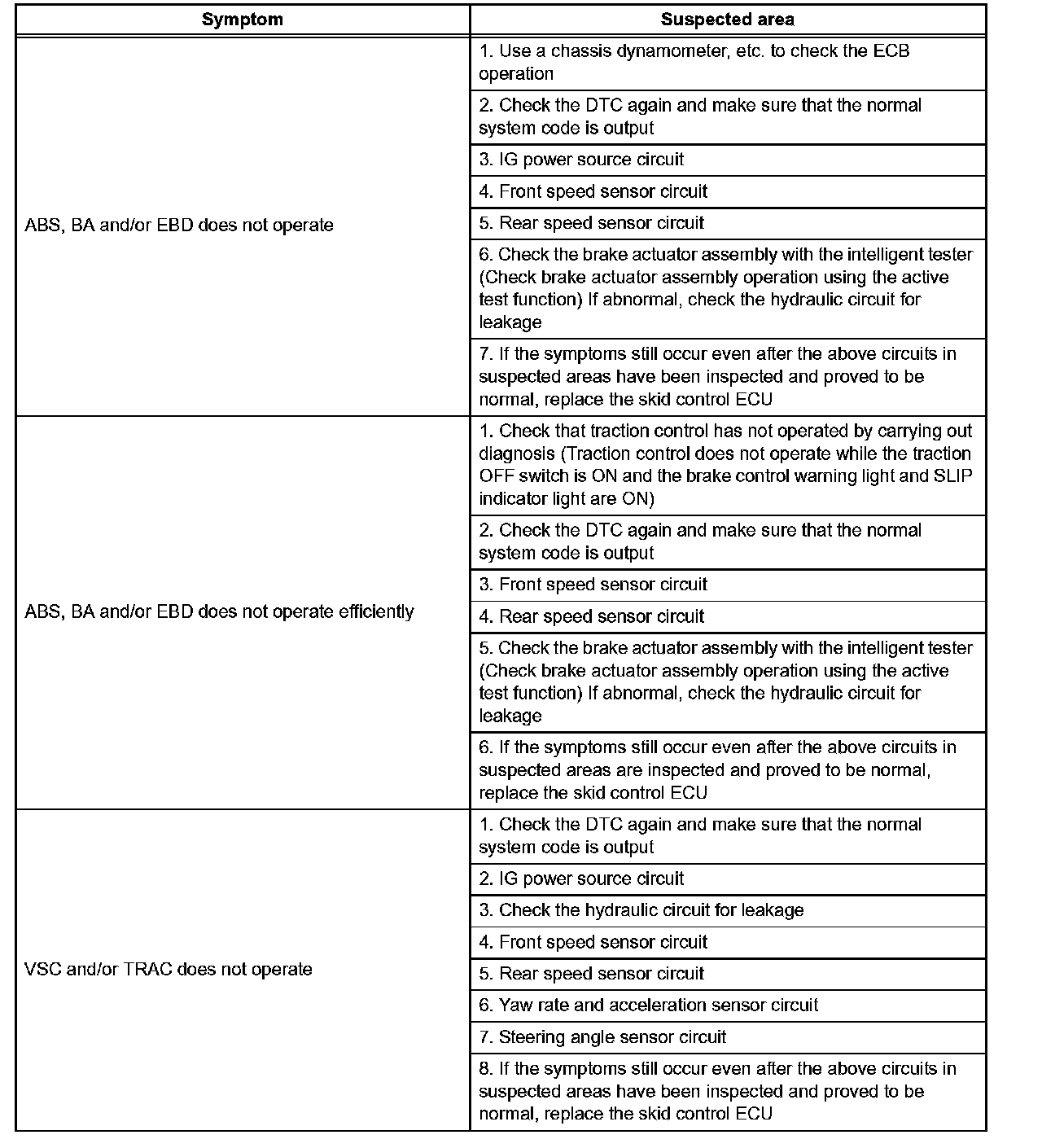

Problem Symptoms Table-Electronically Controlled Brake System:

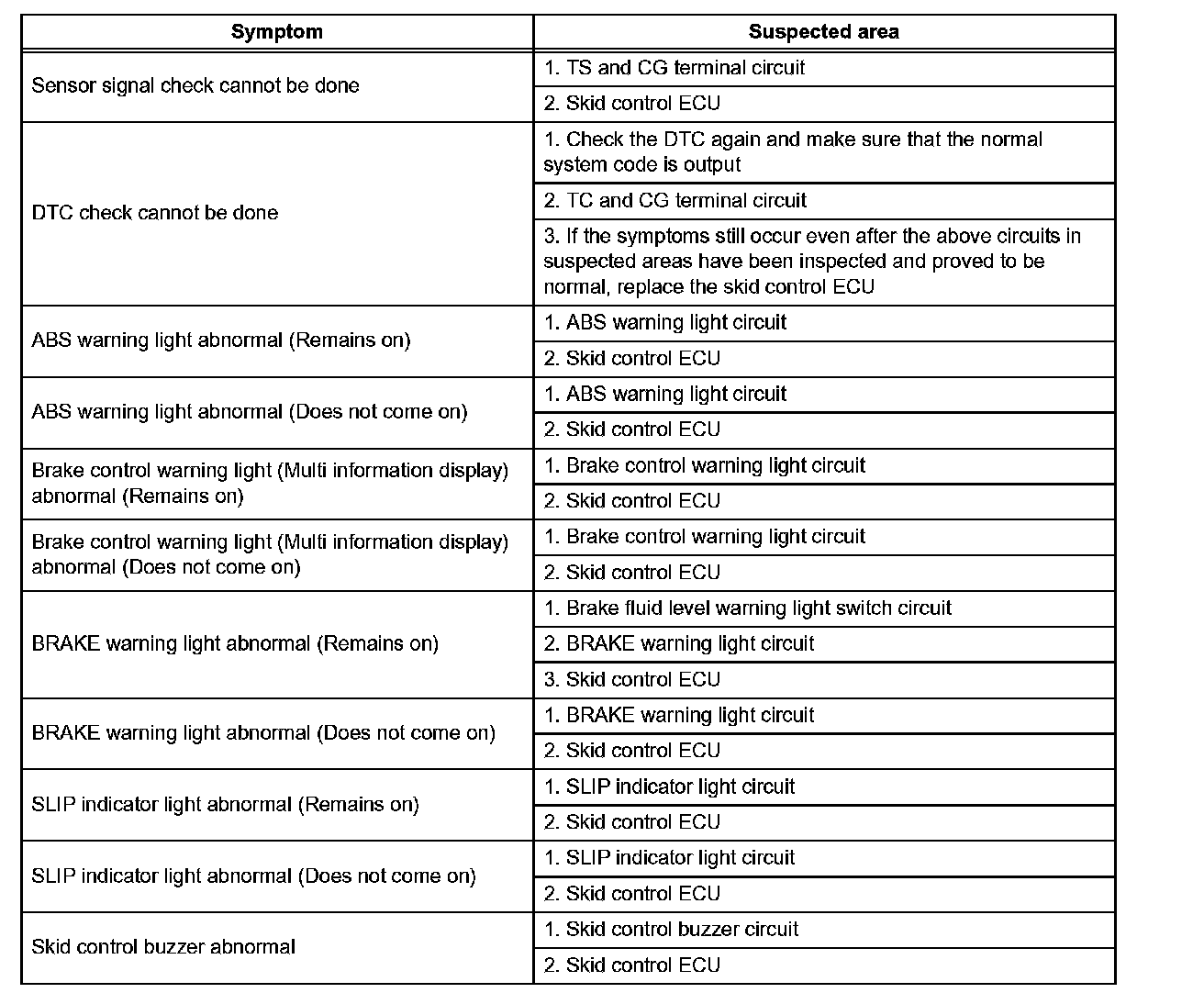

Problem Symptoms Table-Electronically Controlled Brake System:
