Brake Control Warning Light Does Not Come On

Brake Control Warning Light Does Not Come On

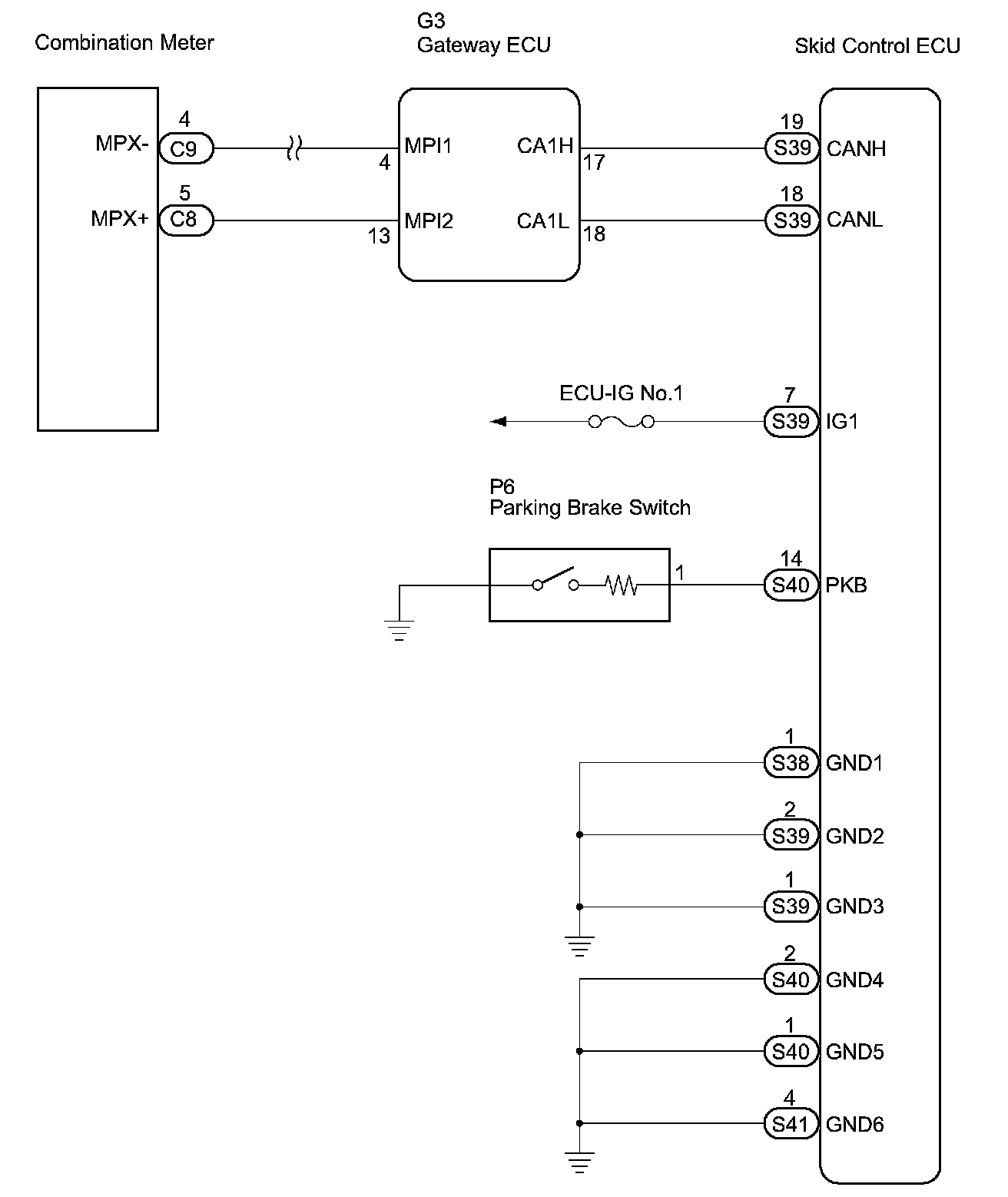

WIRING DIAGRAM:





NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration.

INSPECTION PROCEDURE

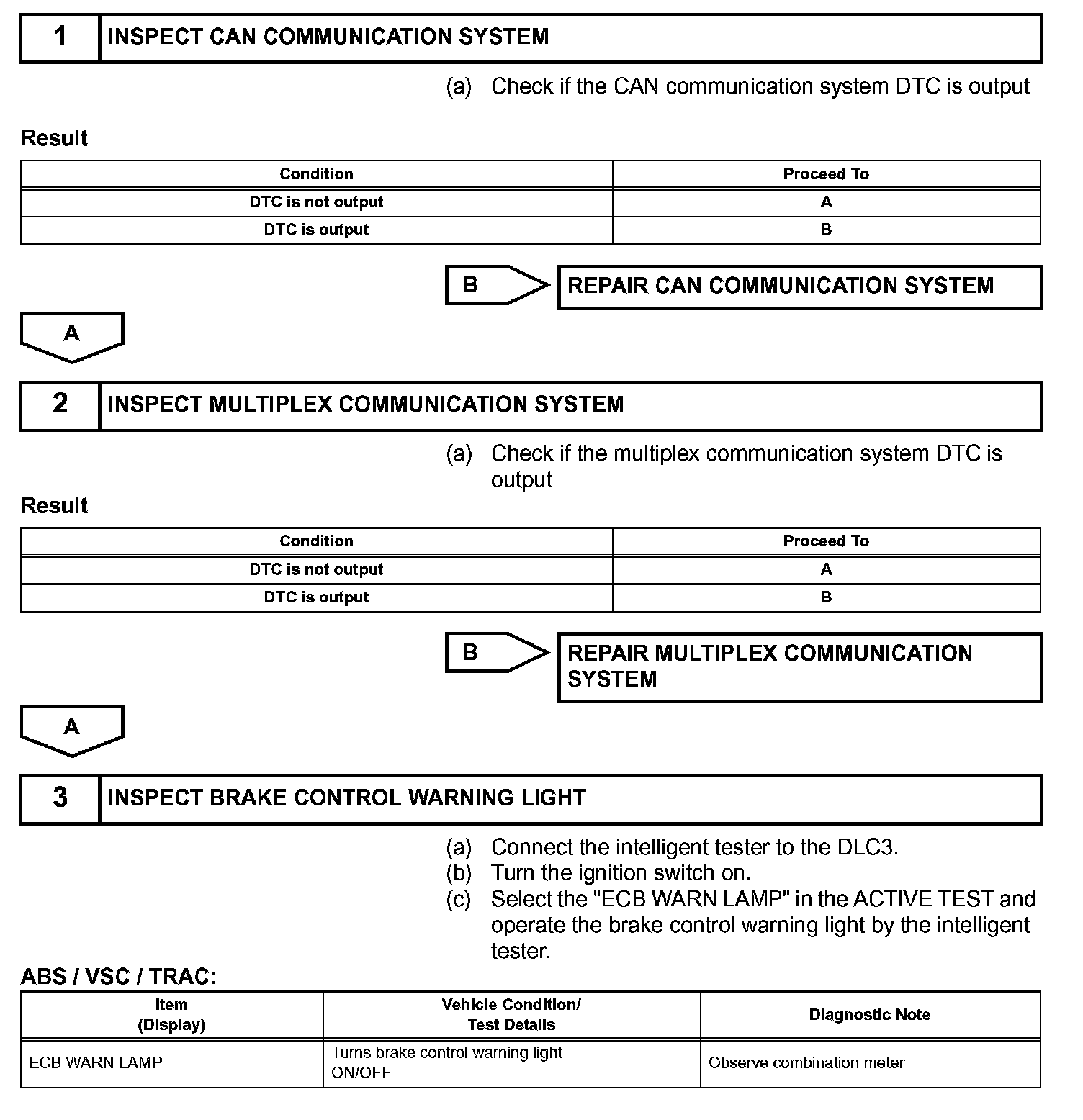

Steps 1-3:

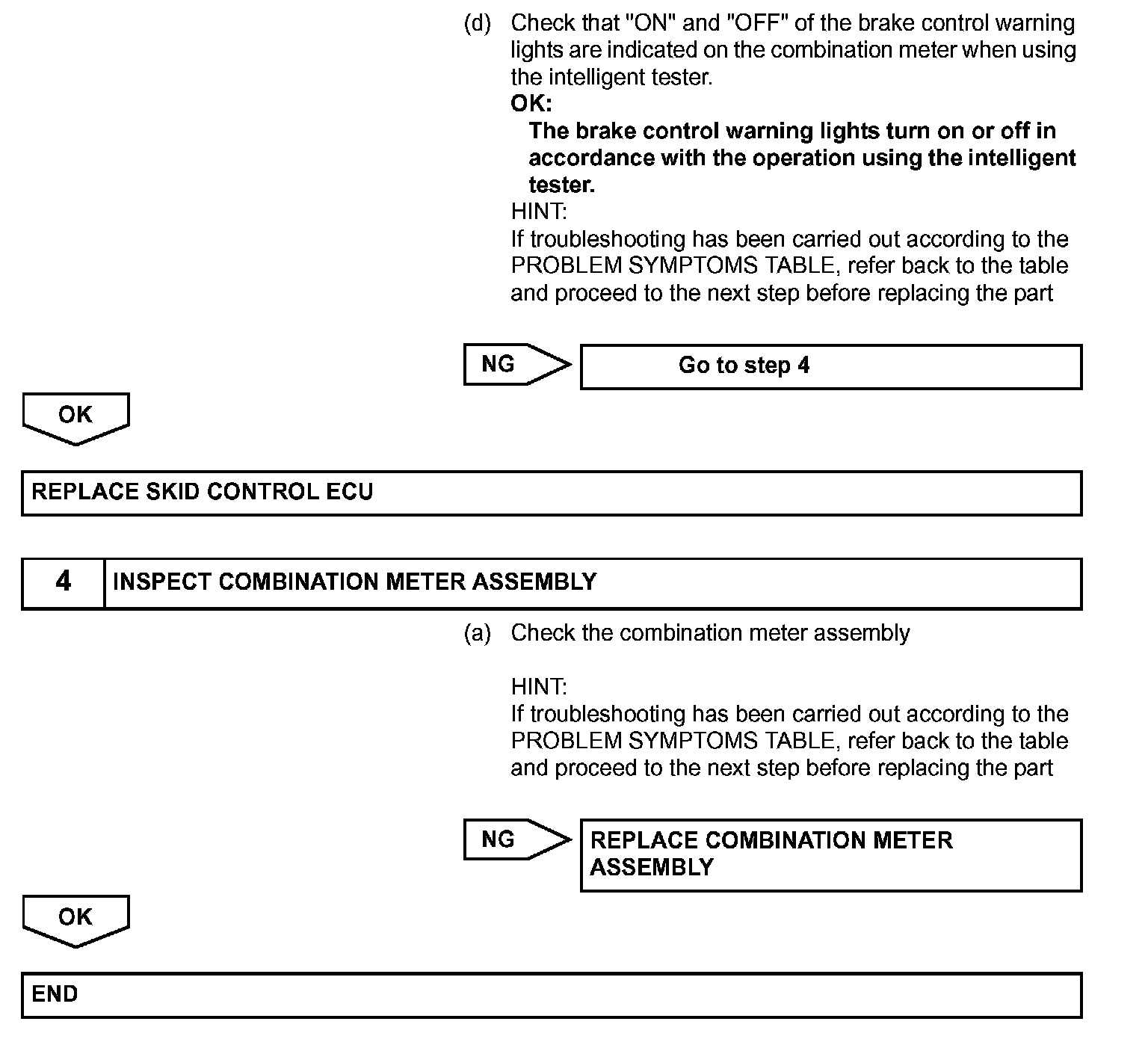

Steps 3 (Continued)-4:
