ABS Main Relay: Testing and Inspection
ABS MAIN RELAYINSPECTION
1. INSPECT ABS MAIN RELAY (ABS NO. 1 RELAY, ABS NO. 2 RELAY)

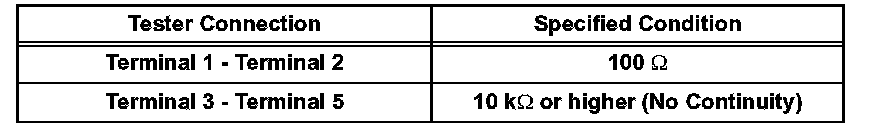

a. Measure the resistance according to the value(s) in the table.
Resistance:
b. Apply battery voltage between terminals 1 and 2.
Resistance:
c. Measure the resistance according to the value(s) in the table.
