Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

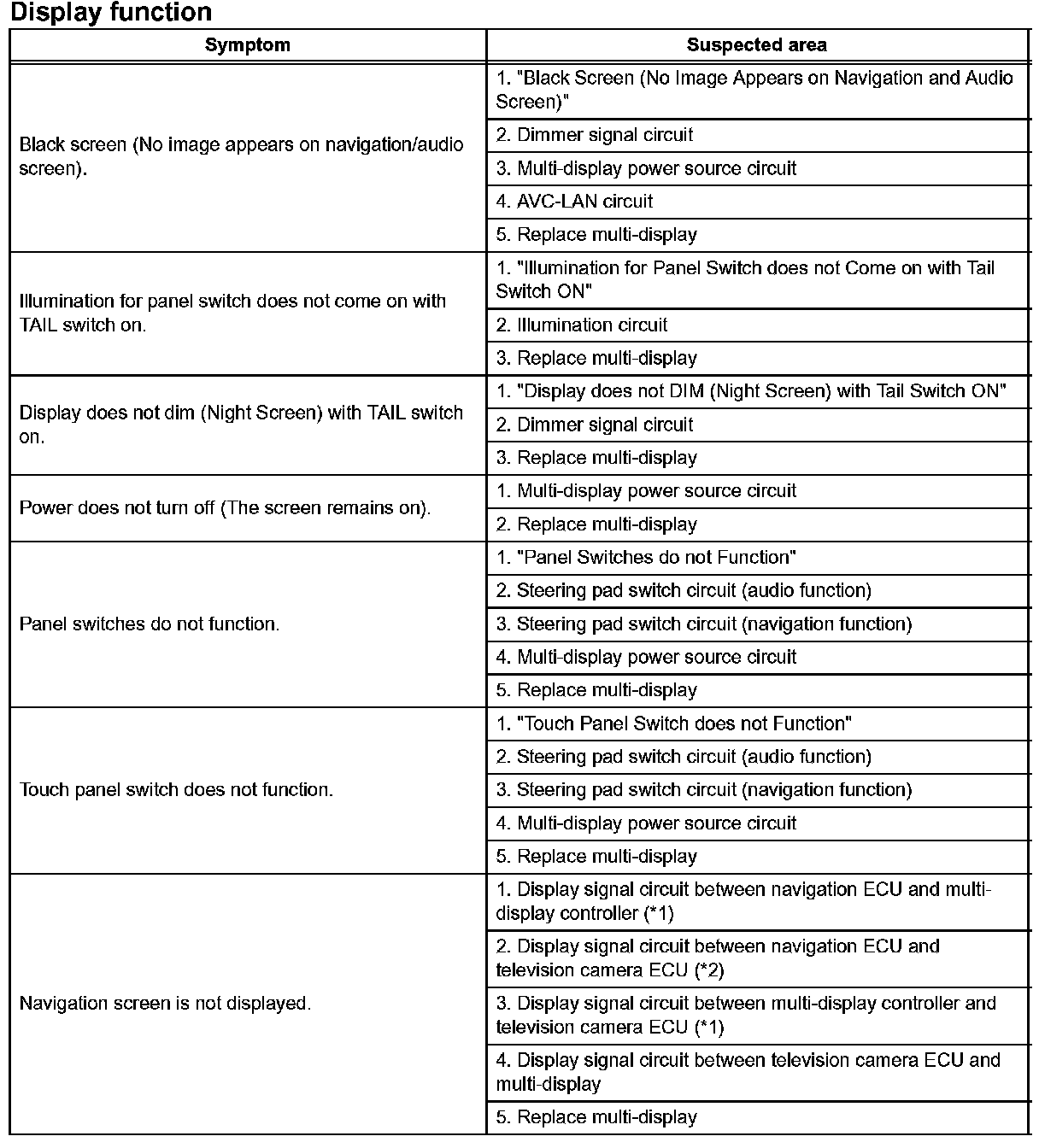

Problem Symptoms Table - Display Function(Part 1):

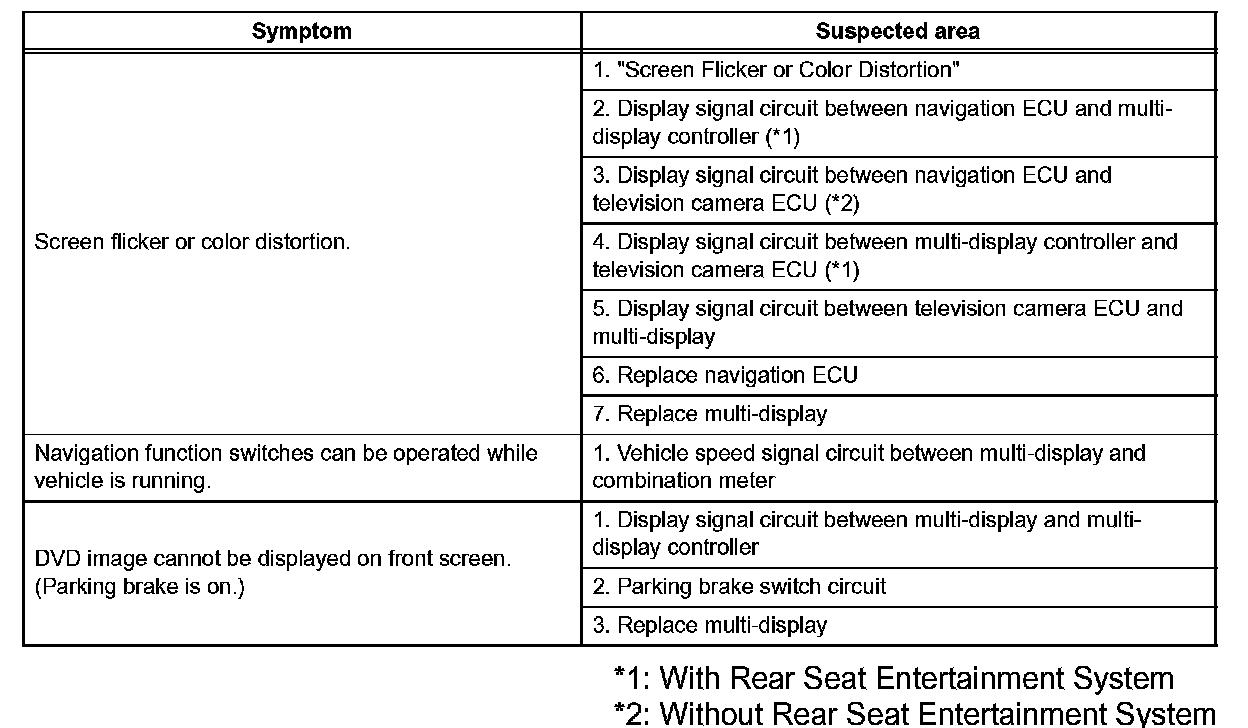

Problem Symptoms Table - Display Function(Part 2):

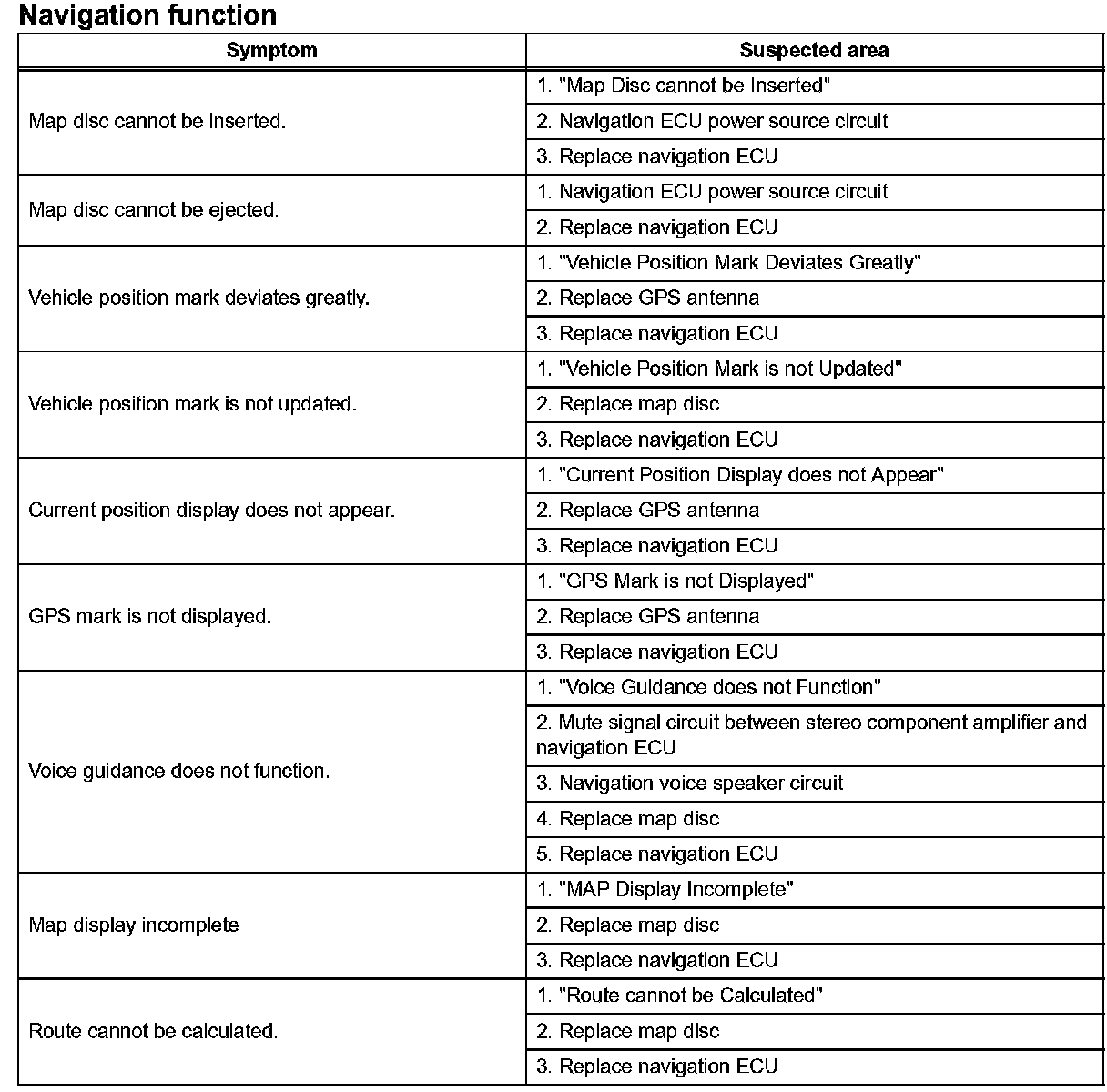

Problem Symptoms Table - Navigation Function(Part 1):

Problem Symptoms Table - Navigation Function(Part 2):

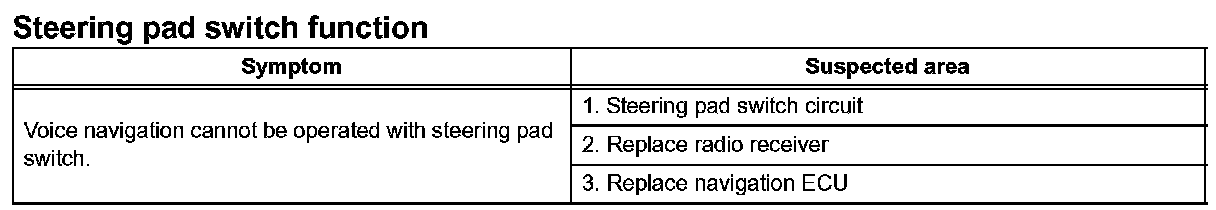

Problem Symptoms Table - Steering Pad Switch Function:

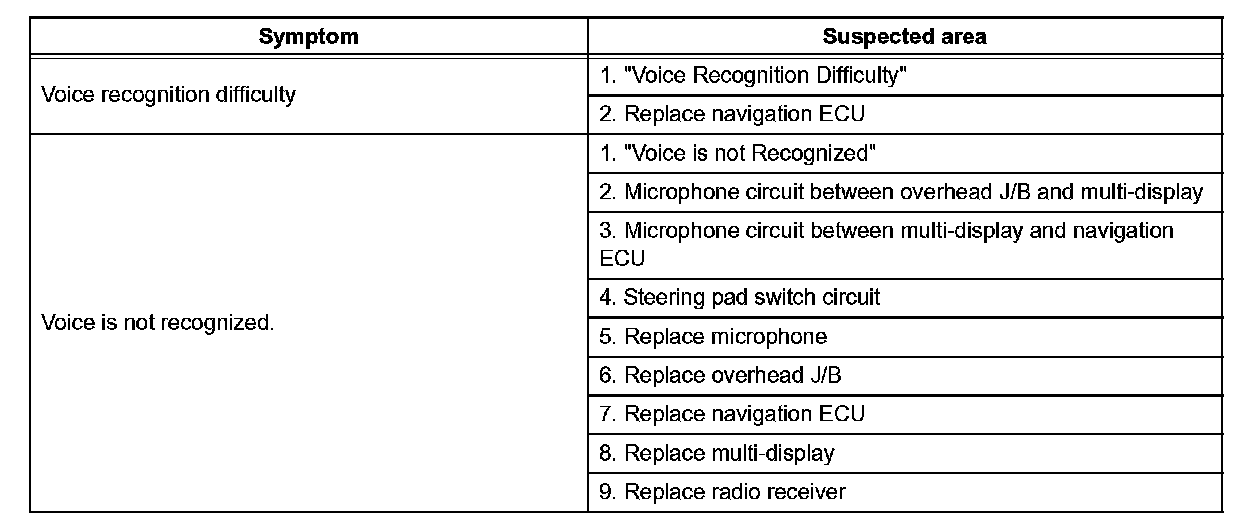

Problem Symptoms Table - Bluetooth Function:

HINT:
- Before inspecting the suspected areas listed in the table , check the fuse and relay.
- Before inspecting the suspected areas listed in the table , check the DTCs.
- Methods used to verify the cause of the problem are listed in order of probability in the suspected area column.
