Home >> Lexus Truck >> 2006 >> RX 330 FWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Sunroof / Moonroof

Sunroof / Moonroof

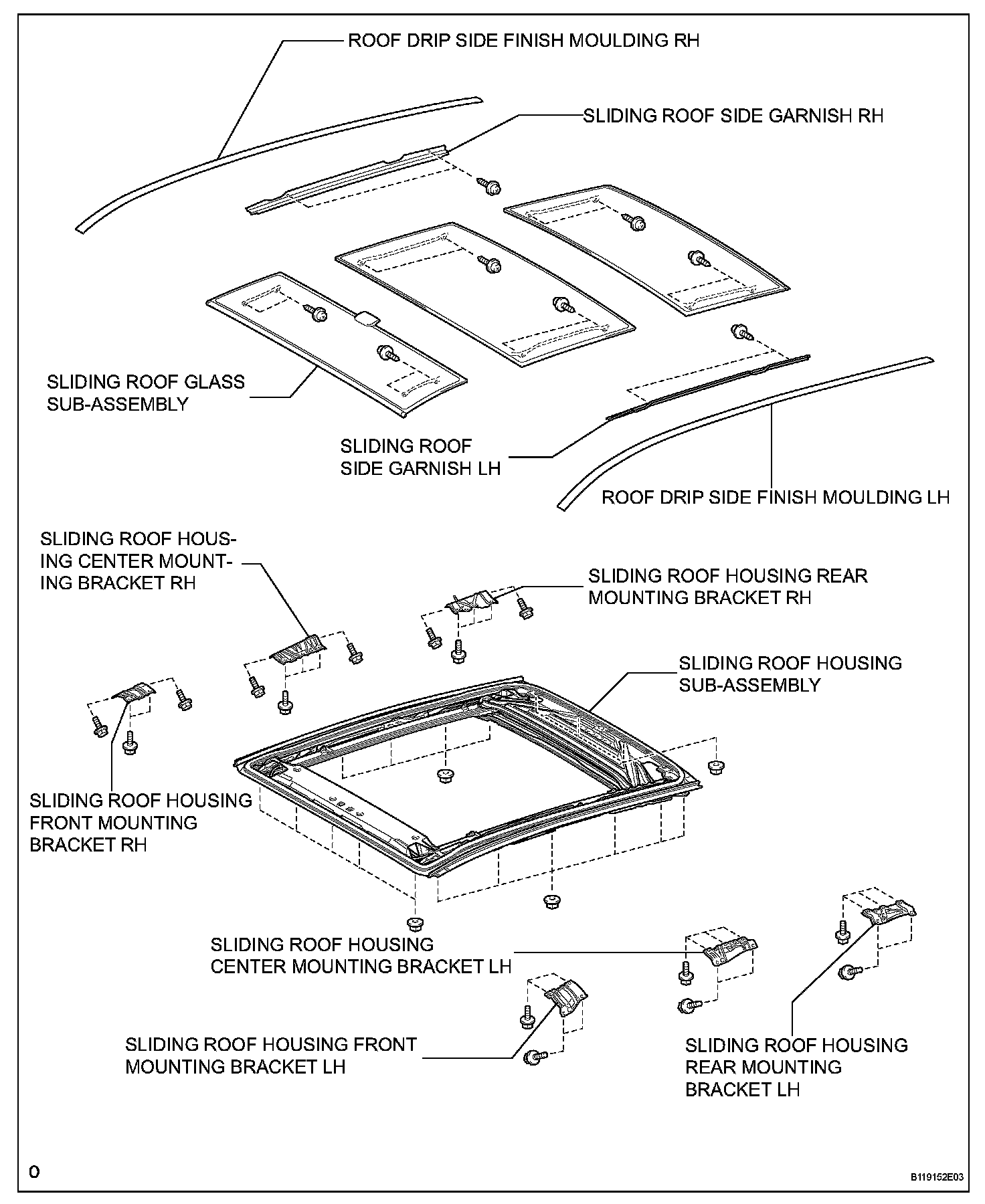

Sliding Roof Housing (for Multi-Panel Moon Roof):

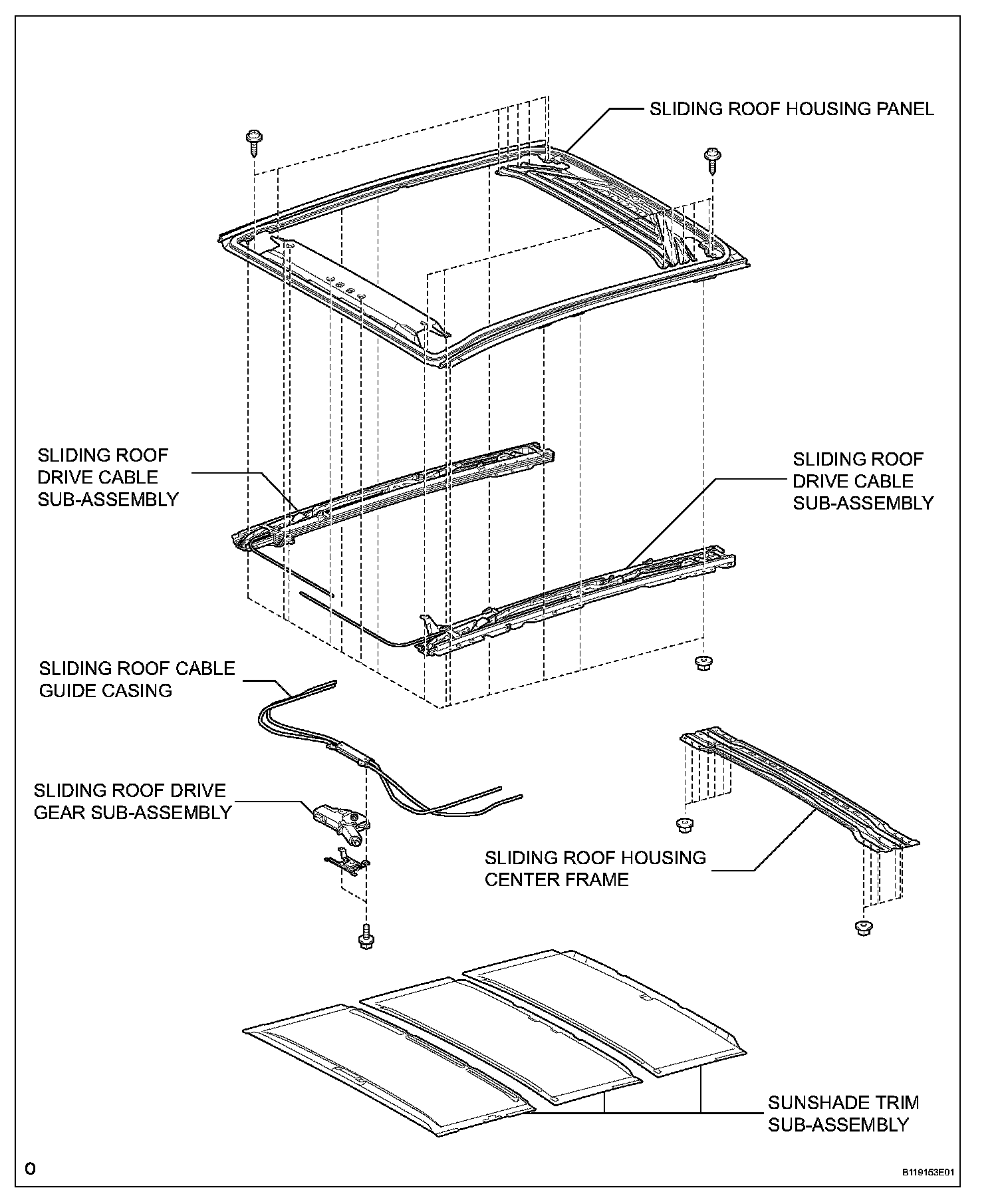

Sliding Roof Housing (for Multi-Panel Moon Roof):



Sliding Roof Housing (for Multi-Panel Moon Roof):



Sliding Roof Housing (for Multi-Panel Moon Roof):



Sliding Roof Housing (for Multi-Panel Moon Roof):

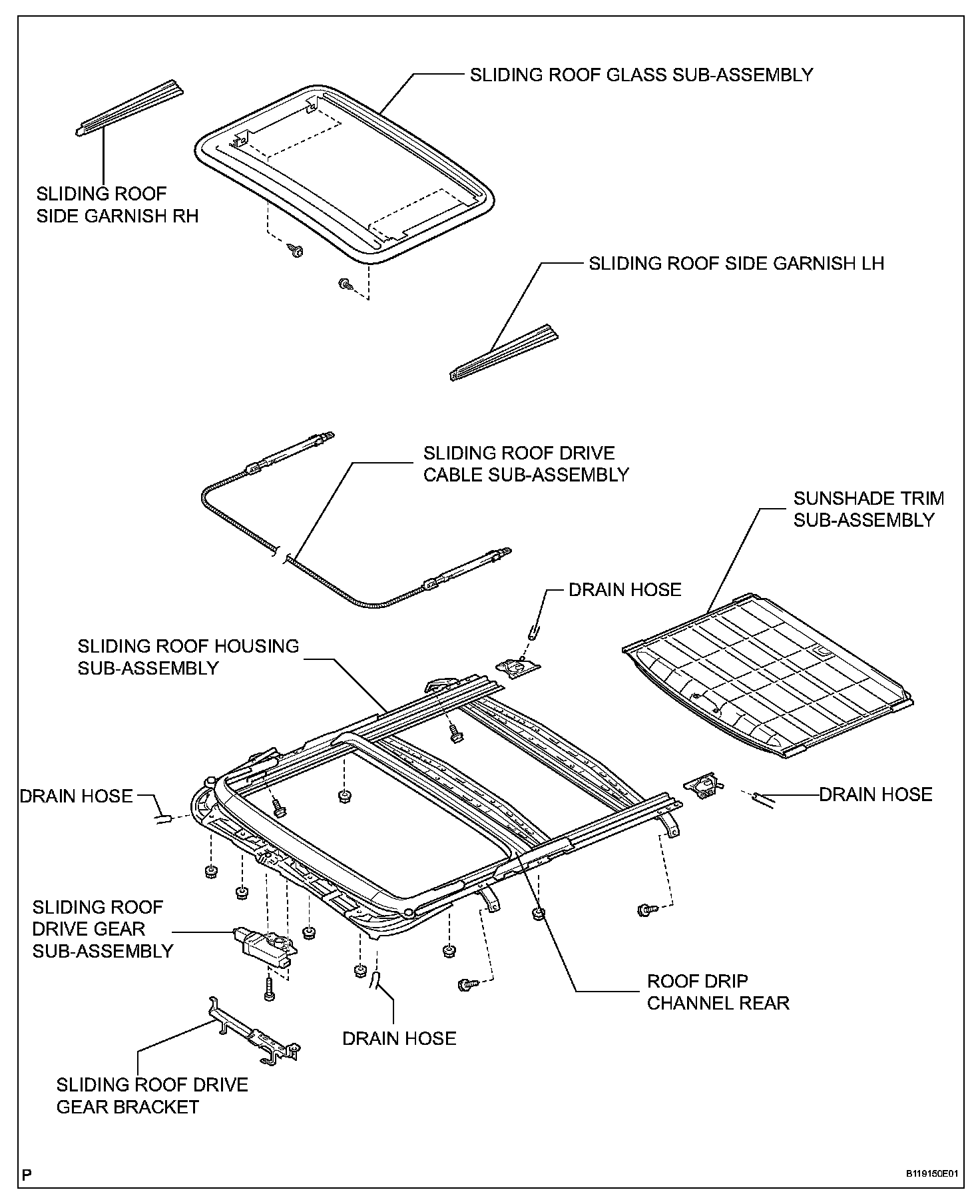

Sliding Roof Housing (for Standard):



Sliding Roof Housing (for Standard):



Sliding Roof Housing (for Standard):



Sliding Roof Housing (for Standard):
