Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2006
>>
RX 330 FWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Diagrams
>>
Exploded Views
Exploded Views

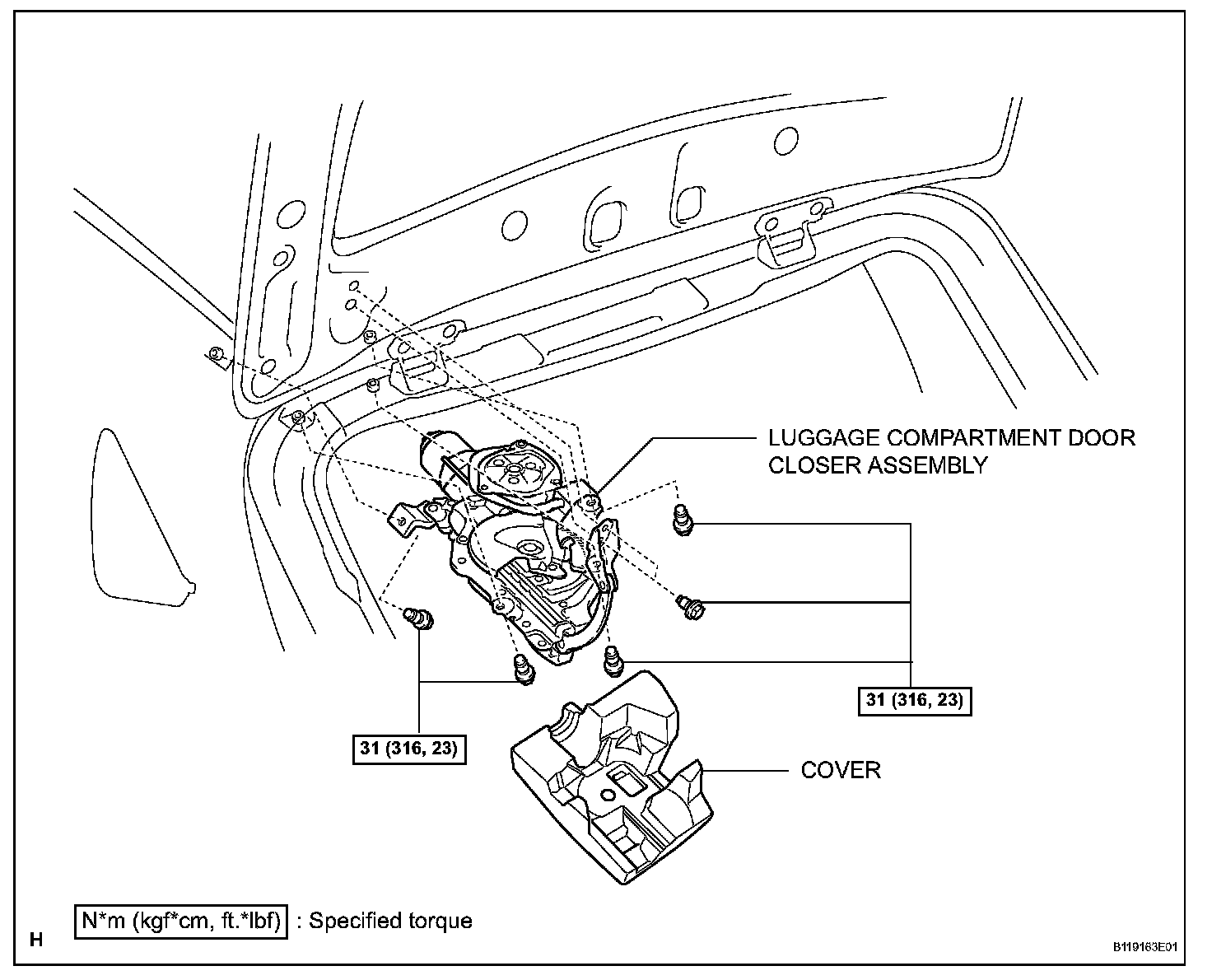

Luggage Compartment Door Closer Assembly:

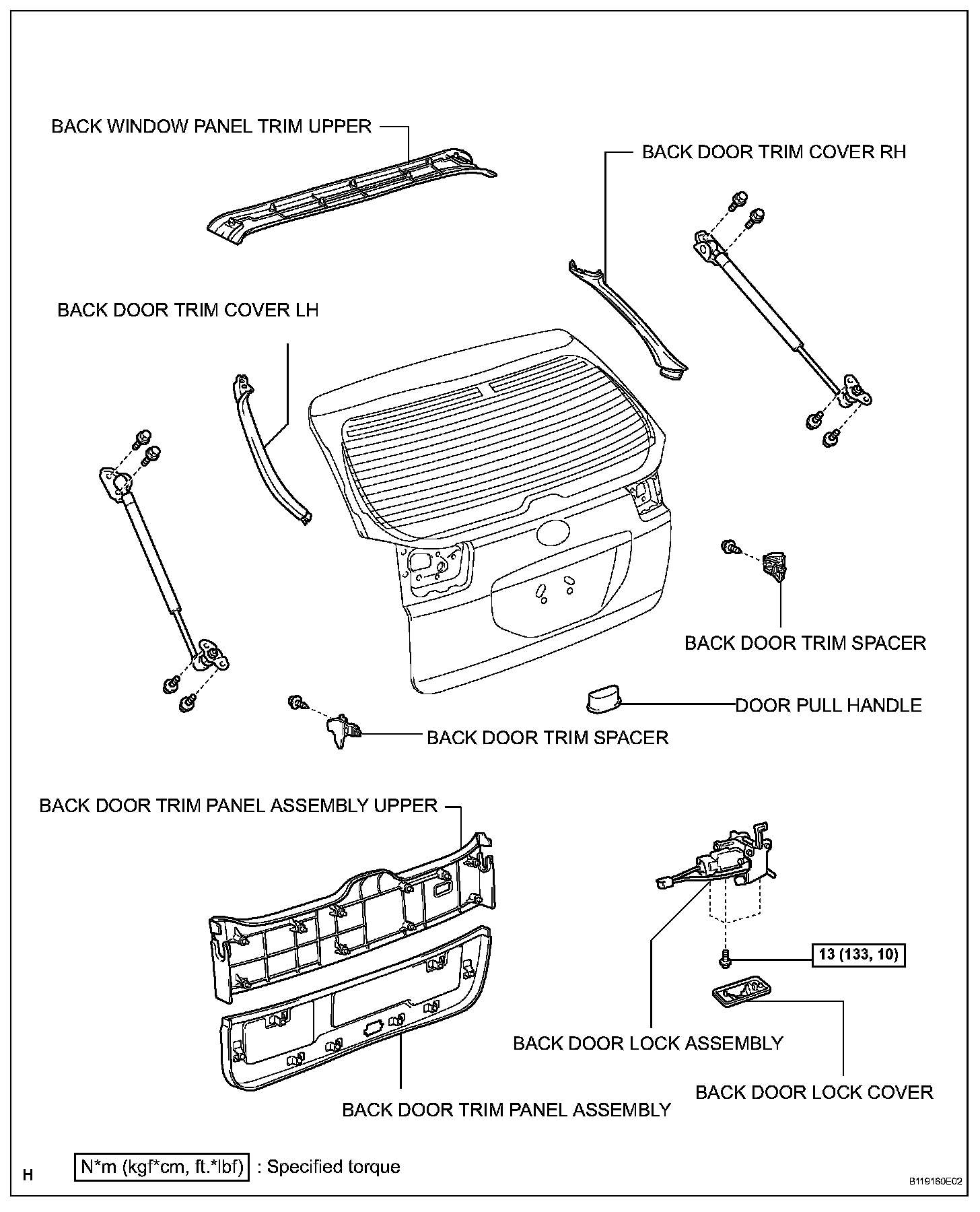

Back Door:

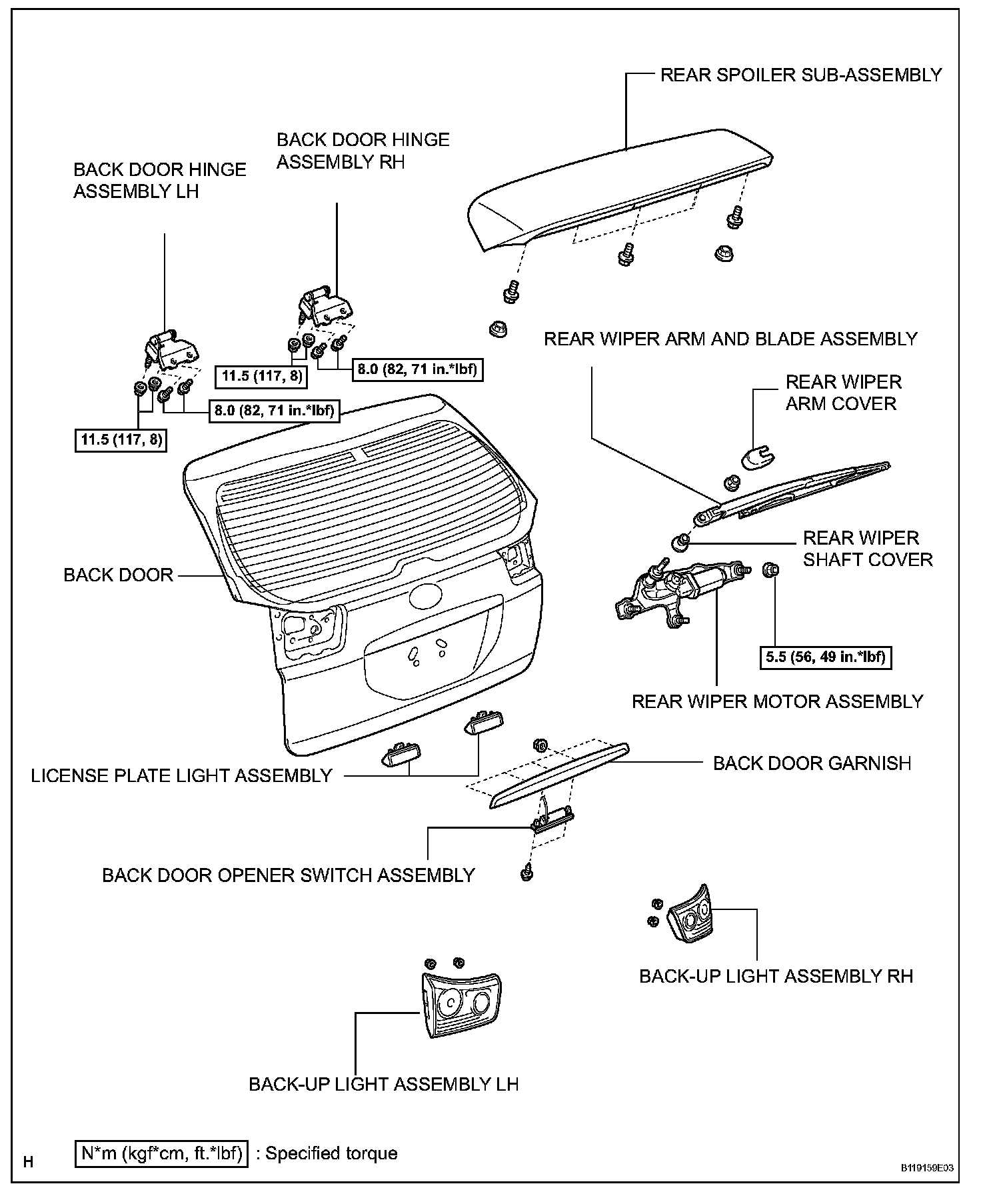

Back Door:
