Microphone

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE MAP LIGHT ASSEMBLY




3. REMOVE MICROPHONE
a. Disconnect the connector.

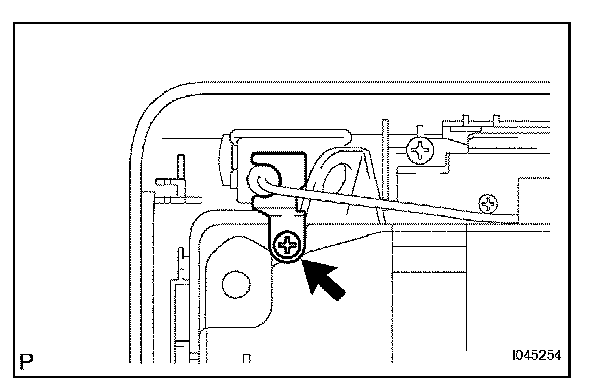

b. Remove the screw and microphone bracket.
c. Remove the microphone.

INSTALLATION




1. INSTALL MICROPHONE
a. Install the microphone.

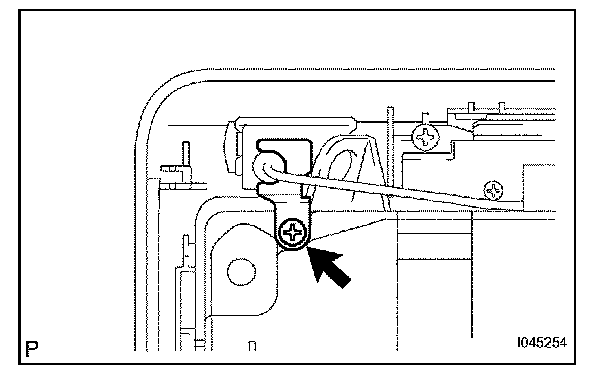

b. Install the microphone bracket with the screw.
c. Connect the connector.

2. INSTALL MAP LIGHT ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION Programming and Relearning

NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal.
