Tire Pressure Module: Testing and Inspection

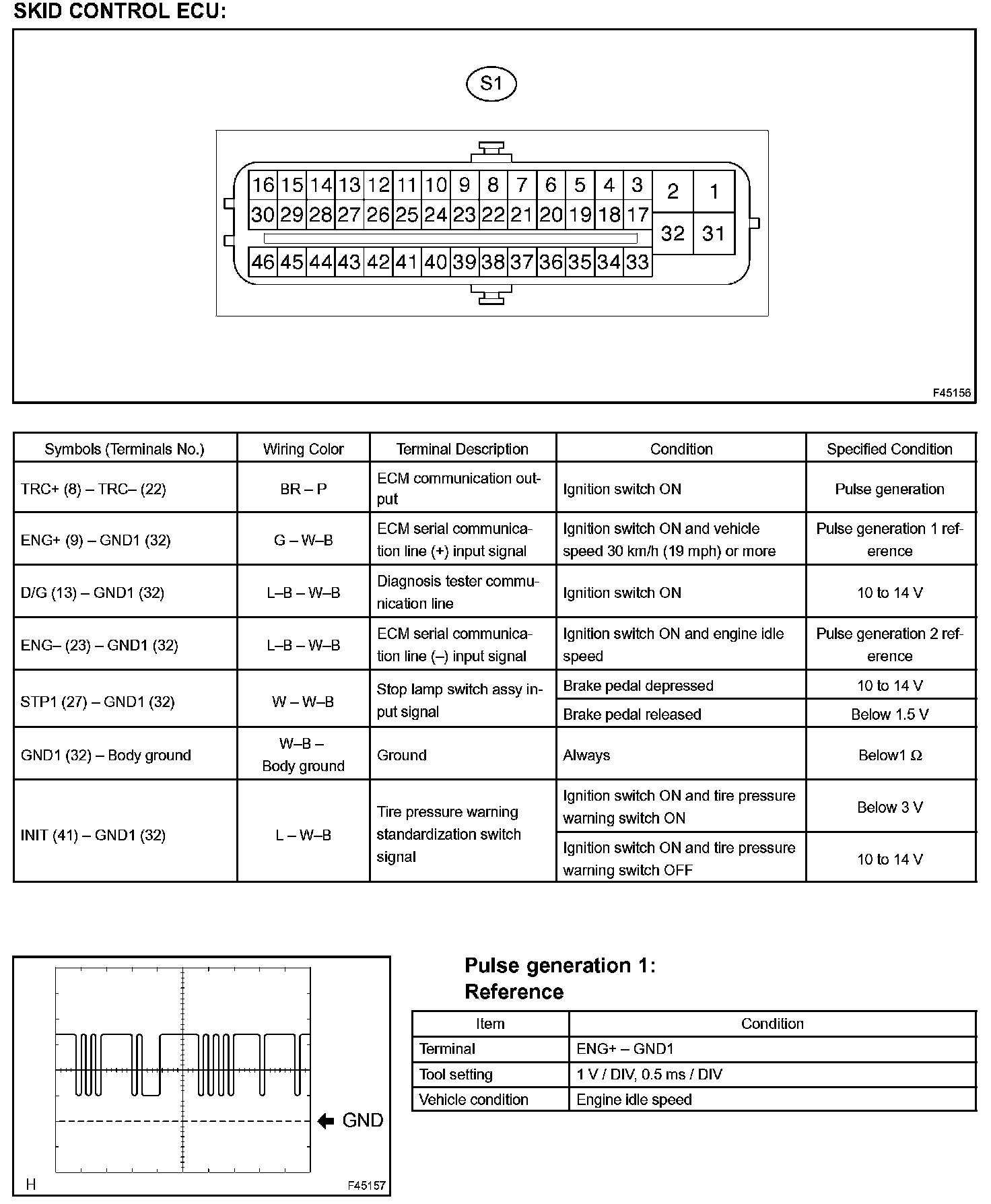

Terminals Of Control Module/Pinouts - Skid Control ECU Part 1:

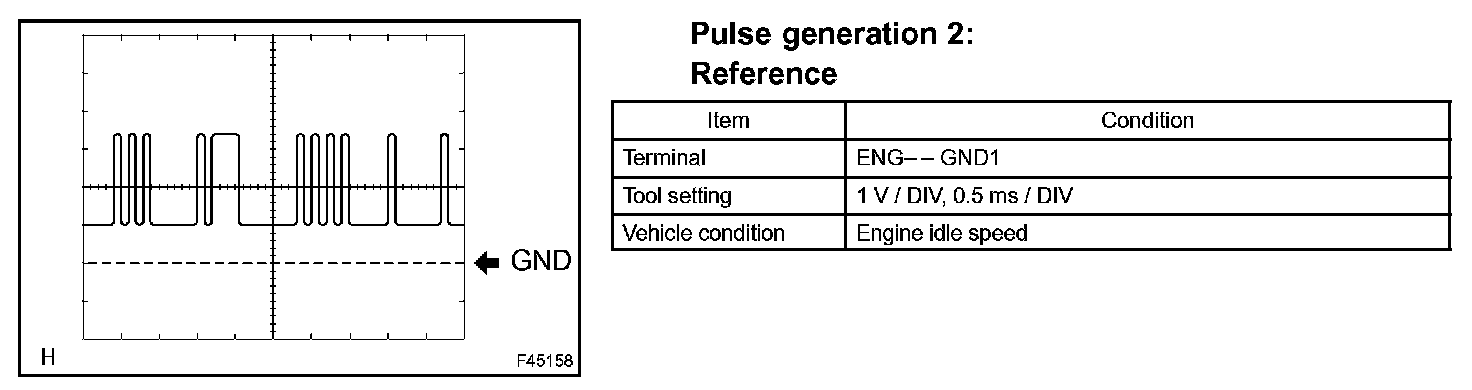

Terminals Of Control Module/Pinouts - Skid Control ECU Part 2:
