Steering Pad Switch LH

Audio And Visual System:

STEERING PAD SWITCH LH

REPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE HORN BUTTON ASSY

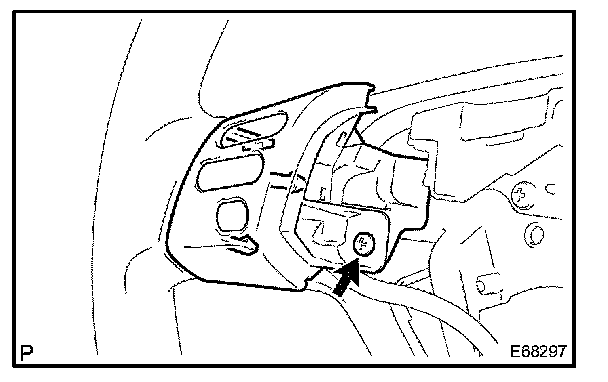

3. REMOVE STEERING PAD SWITCH LH
a. Disconnect the connector.
b. Remove the screw.
c. Disengage the 2 claws and the pin.
d. Remove the steering pad switch LH.
