Removal and Installation

DRIVE BELT
REPLACEMENT
1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER ASSY (W/ ENGINE UNDER COVER ASSY)
3. REMOVE ENGINE UNDER COVER NO.1
4. REMOVE FRONT FENDER APRON SEAL RH





5. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1

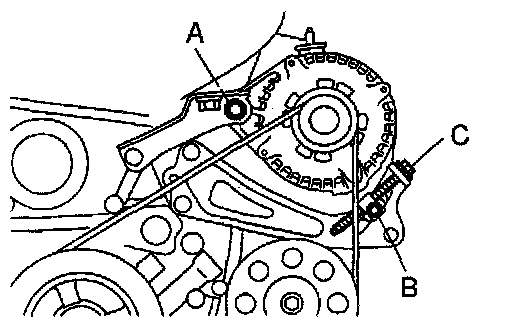

a. Loosen bolts A and B.
b. Loosen the adjusting bolt C, and remove the V-ribbed belt.





6. REMOVE VANE PUMP V BELT

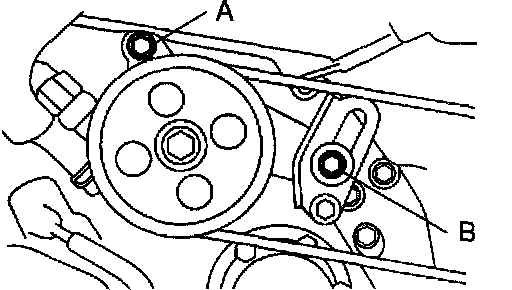

a. Loosen bolts A and B. and remove the V-ribbed belt.





7. INSTALL VANE PUMP V BELT
a. Install the V-ribbed belt on each pulley.

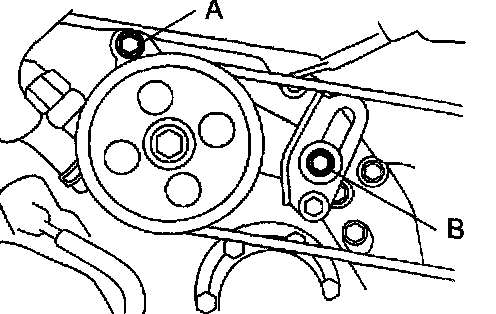

b. Using a bar, adjust the V-ribbed belt tension and tighten bolt B.
Torque: 43 Nm (439 kgf-cm, 32 ft. lbs.)
c. Tighten bolt A.
Torque: 43 Nm (439 kgf-cm, 32 ft. lbs.)





8. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
a. Install the V-ribbed belt on each pulley.

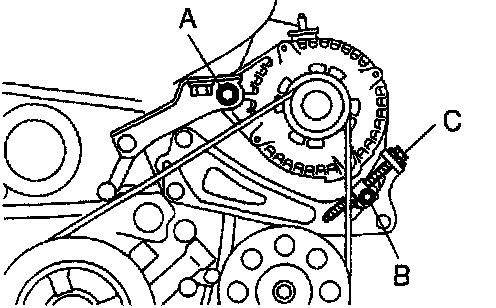

b. Tighten the adjusting bolt C, and adjust the V-ribbed belt tension.
c. First tighten bolt A, then tighten bolt B.
Torque:
Bolt A 58 Nm (591 kgf-cm, 43 ft. lbs.)
Bolt B 18 Nm (184 kgf-cm, 13 ft. lbs.)
9. INSPECT DRIVE BELT DEFLECTION AND TENSION (REFERENCE)
10. INSTALL FRONT WHEEL RH
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
