Brake Pedal Assy: Adjustments
BRAKE PEDAL SUB-ASSEMBLYADJUSTMENT

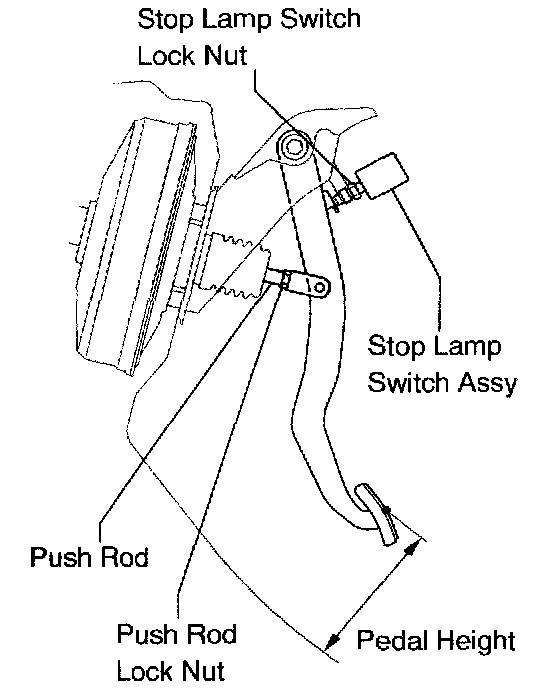

1. CHECK AND ADJUST BRAKE PEDAL HEIGHT
a. Check brake pedal height.
Pedal height from asphalt sheet: 150.0 to 160.0 mm (5.906 to 6.299 inch)
b. Adjust brake pedal height.
1. Disconnect the connector from the stop lamp switch assembly.
2. Loosen the stop lamp switch lock nut and remove the stop lamp switch assembly.
3. Loosen the push rod lock nut.
4. Adjust the pedal height by turning the pedal push rod.
5. Tighten the push rod lock nut.
Torque: 26 Nm (265 kgf-cm, 19 ft. lbs.)
6. Install the stop lamp switch assembly.
7. Connect the connector to the stop lamp switch assembly.
8. Push the brake pedal in 5 to 10 mm (0.20 to 0.39 inch), turn the stop lamp switch assembly to lock the nut in the position where the stop lamp goes off.
9. After installation, push the brake pedal in 5 to 10 mm (0.20 to 0.39 inch), and check that the stop lamp comes on.
10. Tighten the stop lamp switch lock nut.
Torque: 17 Nm (173 kgf-cm, 13 ft. lbs.)

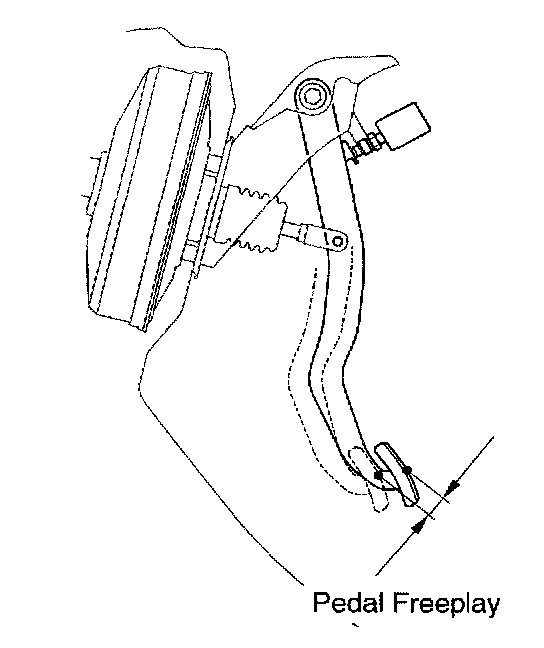

2. CHECK PEDAL FREE PLAY
a. Stop the engine and depress the brake pedal several times until there is no more vacuum left in the booster.
b. Press the pedal until the beginning of the resistance is felt. Measure the distance as shown in the illustration.
Pedal freeway: 2.0 to 3.0 mm (0.079 to 0.118 inch)
If incorrect, proceed to the following step.
1. Check the stop lamp switch clearance.
Stop lamp switch clearance 0.5 to 2.6 mm (0.020 to 0.102 inch)
If correct, the pedal free play is OK.
If incorrect, adjust the stop lamp switch clearance.

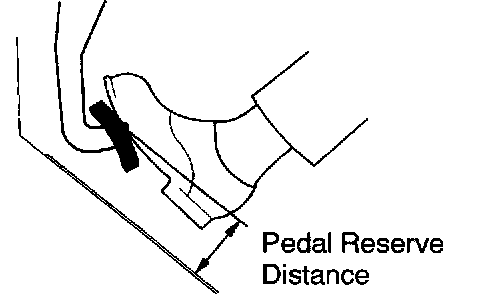

3. CHECK PEDAL RESERVE DISTANCE
a. Release the parking brake pedal.
b. With engine running, depress the pedal and measure the pedal reserve distance, as shown.
Pedal reserve distance from asphalt sheet at 490 N (50 kgf, 110.2 lbs.): More than 80 mm (3.1 inch)
If incorrect, troubleshoot the brake system.
