Lexus Truck
>>
2004
>>
RX 330 AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Exploded Views
>>

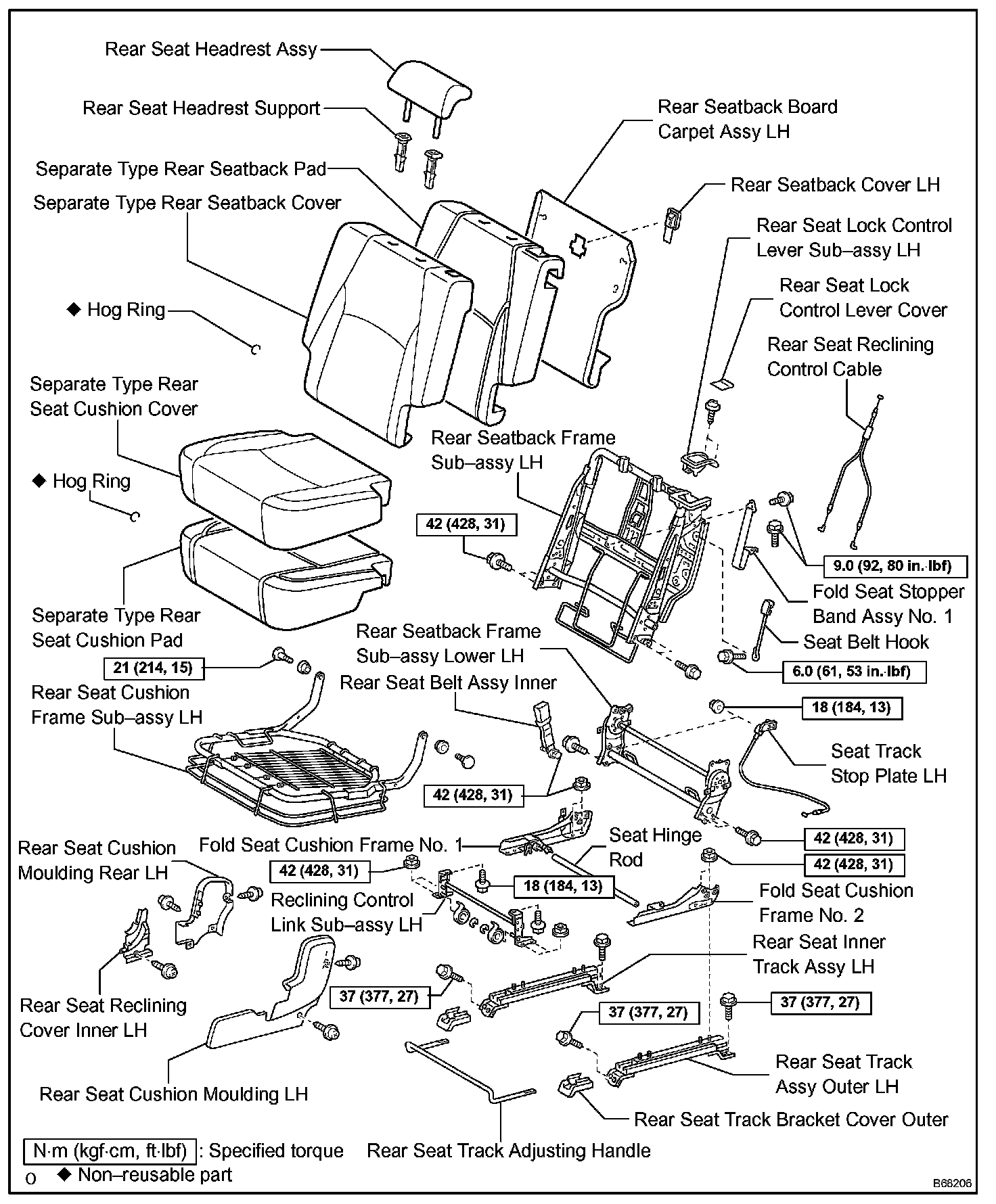

Rear Seat Assy LH
Rear Seat Assy LH
Rear Seat Assy LH:
