Steering Pad Switch Assy

Audio And Visual System:

STEERING PAD SWITCH ASSY

REPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE HORN BUTTON ASSY
3. REMOVE STEERING PAD SWITCH ASSY
a. Disconnect the connector.
b. Remove the steering pad switch LH.

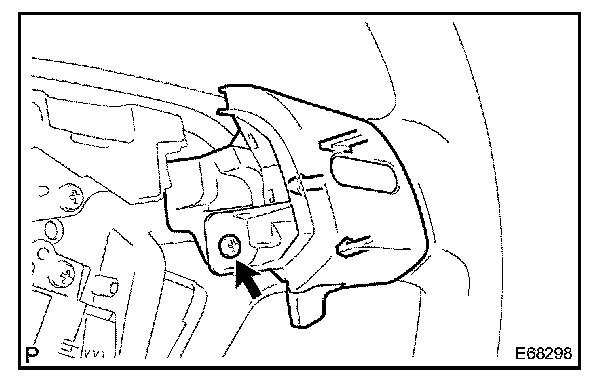

c. Remove the screw.
d. Disengage the 2 claws and the pin.
e. Remove the steering pad switch assy.
