Amplifier: Service and Repair

Audio And Visual System:

STEREO COMPONENT AMPLIFIER ASSY

REPLACEMENT

1. REMOVE REAR DOOR SCUFF PLATE RH
2. REMOVE REAR DOOR SCUFF PLATE LH
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5. REMOVE DECK BOARD SUB-ASSY
6. REMOVE REAR SEAT ASSY RH (4-2-4 SPLIT SEAT TYPE)
7. REMOVE REAR SEAT ASSY LH (4-2-4 SPLIT SEAT TYPE)
8. REMOVE TONNEAU COVER ASSY
9. REMOVE DECK FLOOR BOX FRONT
10. REMOVE DECK FLOOR BOX REAR
11. REMOVE DECK BOARD SUB-ASSY NO.2
12. REMOVE DECK BOARD SUB-ASSY NO.3
13. REMOVE BACK DOOR WEATHERSTRIP
14. REMOVE DECK SIDE TRIM BOX RH 15. REMOVE DECK SIDE TRIM BOX LH
16. REMOVE REAR FLOOR FINISH PLATE
17. REMOVE REAR FLOOR FINISH SIDE PLATE RH
18. REMOVE REAR FLOOR FINISH SIDE PLATE LH
19. REMOVE DECK SIDE TRIM COVER RH
20. REMOVE DECK SIDE TRIM COVER LH
21. REMOVE REAR SEAT SIDE COVER RH
22. REMOVE REAR SEAT SIDE COVER LH
23. REMOVE ROPE HOOK
24. REMOVE DECK TRIM SIDE PANEL ASSY RH
25. REMOVE DECK TRIM SIDE PANEL ASSY LH
26. REMOVE REAR SEAT SUB FLOOR PANEL ASSY
a. Remove the 3 bolts, the 3 nuts and the rear seat sub floor panel assy.




27. REMOVE STEREO COMPONENT AMPLIFIER ASSY

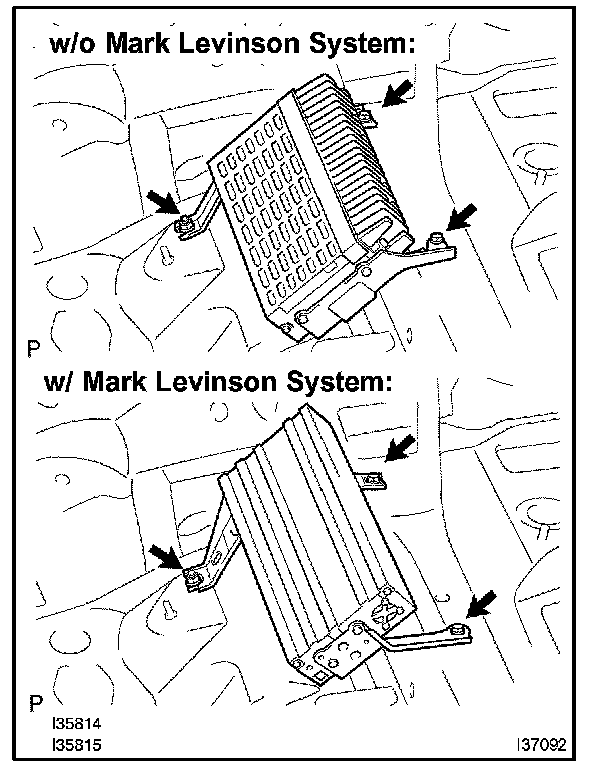

a. Remove the 2 bolts and the nut.
b. Disconnect the connector.
c. Remove the stereo component amplifier assy.




d. Mark Levinson System:

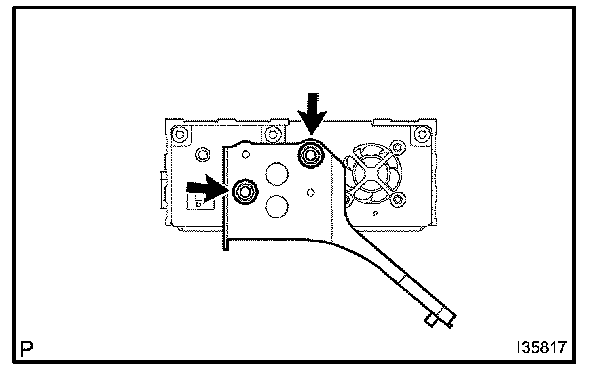

Remove the 2 screws and amplifier bracket No.1.




e. Mark Levinson System:

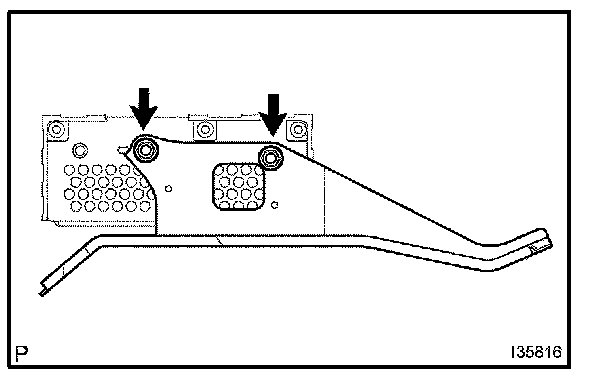

Remove the 2 screws and amplifier bracket No.2.

28. INSTALL REAR SEAT ASSY RH (4-2-4 SPLIT SEAT TYPE)
29. INSTALL REAR SEAT ASSY LH (4-2-4 SPLIT SEAT TYPE)
