Power Source Circuit (Navigation ECU)

POWER SOURCE CIRCUIT (NAVIGATION ECU)

CIRCUIT DESCRIPTION
This circuit is the power source circuit to operate the navigation ECU.

Wiring Diagram:

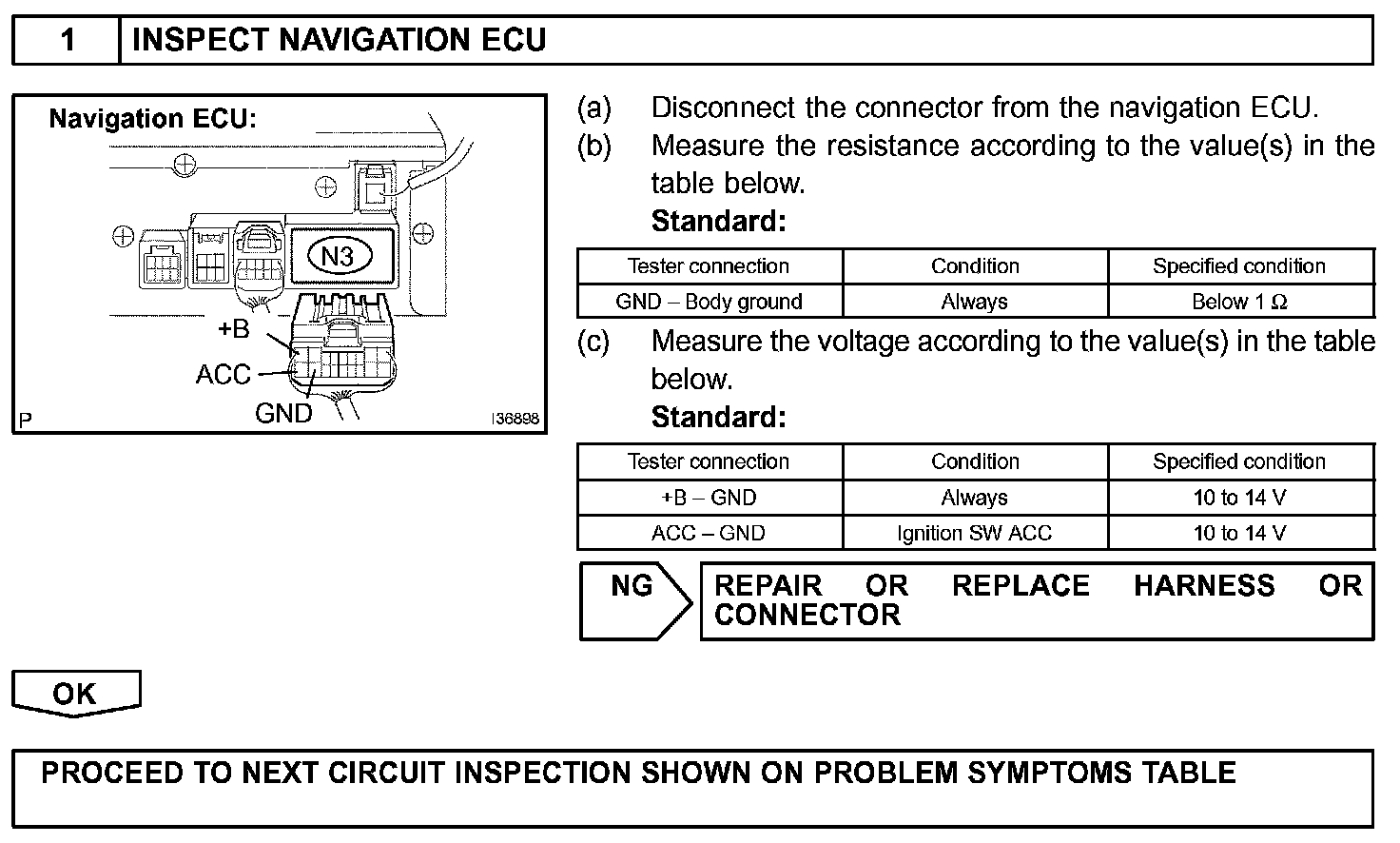

Step 1:




INSPECTION PROCEDURE
