Television Display Assy

Audio And Visual System:

TELEVISION DISPLAY ASSY

REPLACEMENT




1. REMOVE TELEVISION BASE

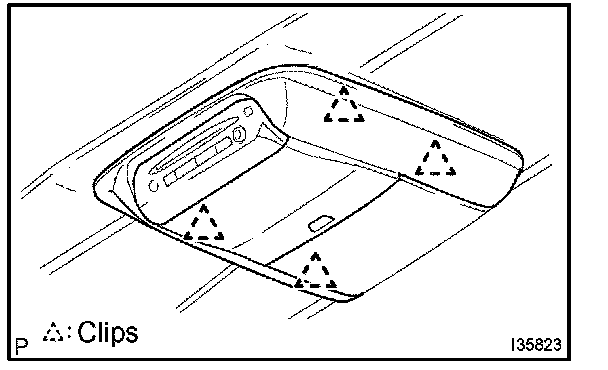

a. Disengage the 4 clips, and remove the television base.




2. REMOVE TELEVISION DISPLAY ASSY
a. Disconnect the connector.
b. Remove the 4 nuts and the television display assy.
