Multi-Display Assy

MULTI-DISPLAY ASSY

REPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE SHIFT LEVER KNOB SUB-ASSY
3. REMOVE CONSOLE PANEL UPPER FRONT
4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET




6. REMOVE MULTI-DISPLAY ASSY

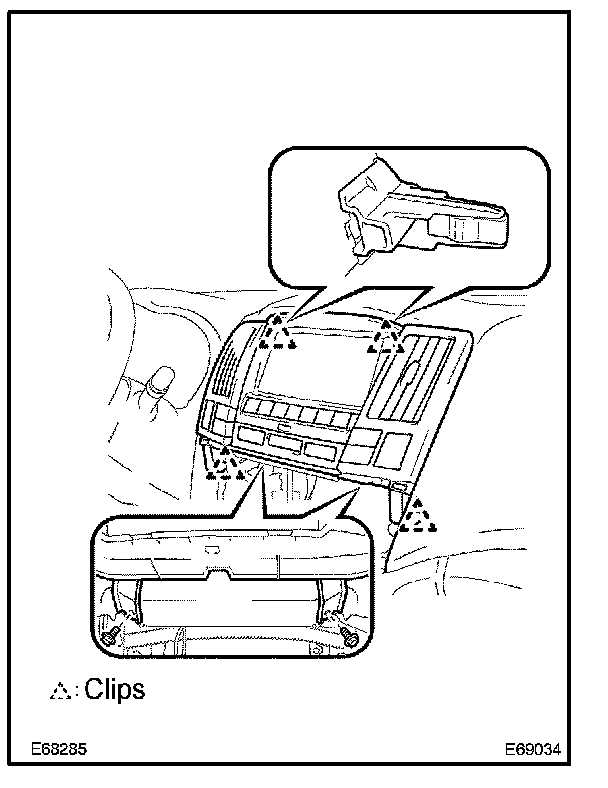

a. Remove the 2 bolts, and disengage the 4 clips.
b. Disconnect the connector.
c. Remove the multi-display assy.
