Lateral Stabilizer Rod: Service and Repair

REMOVAL
1. SUPPORT REAR AXLE MOUSING WITH JACK

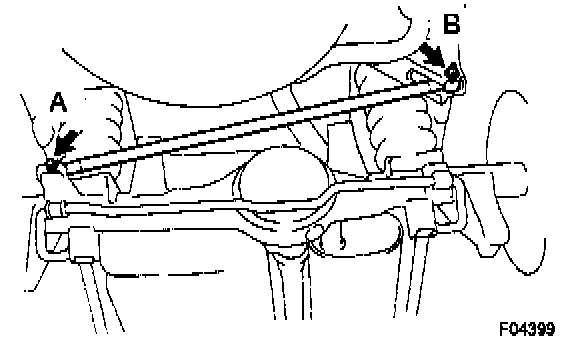

2. REMOVE LATERAL CONTROL ROD
Remove the 2 bolts, nut, washer and lateral control rod.
Torque:
A: 149 Nm (1,520 kgf-cm, 110 ft. lbs.)
B: 150 Nm (1,530 kgf-cm, 111 ft. lbs.)

HINT: At the time of installation, please refer to the following items.
^ Replace the used nut with a new one.
^ After stabilizing the suspension, torque the nut and bolt.

INSTALLATION
Installation is in the reverse order of removal.
