Lexus Truck
>>
2004
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension Spring ( Coil / Leaf )
Suspension Spring ( Coil / Leaf )

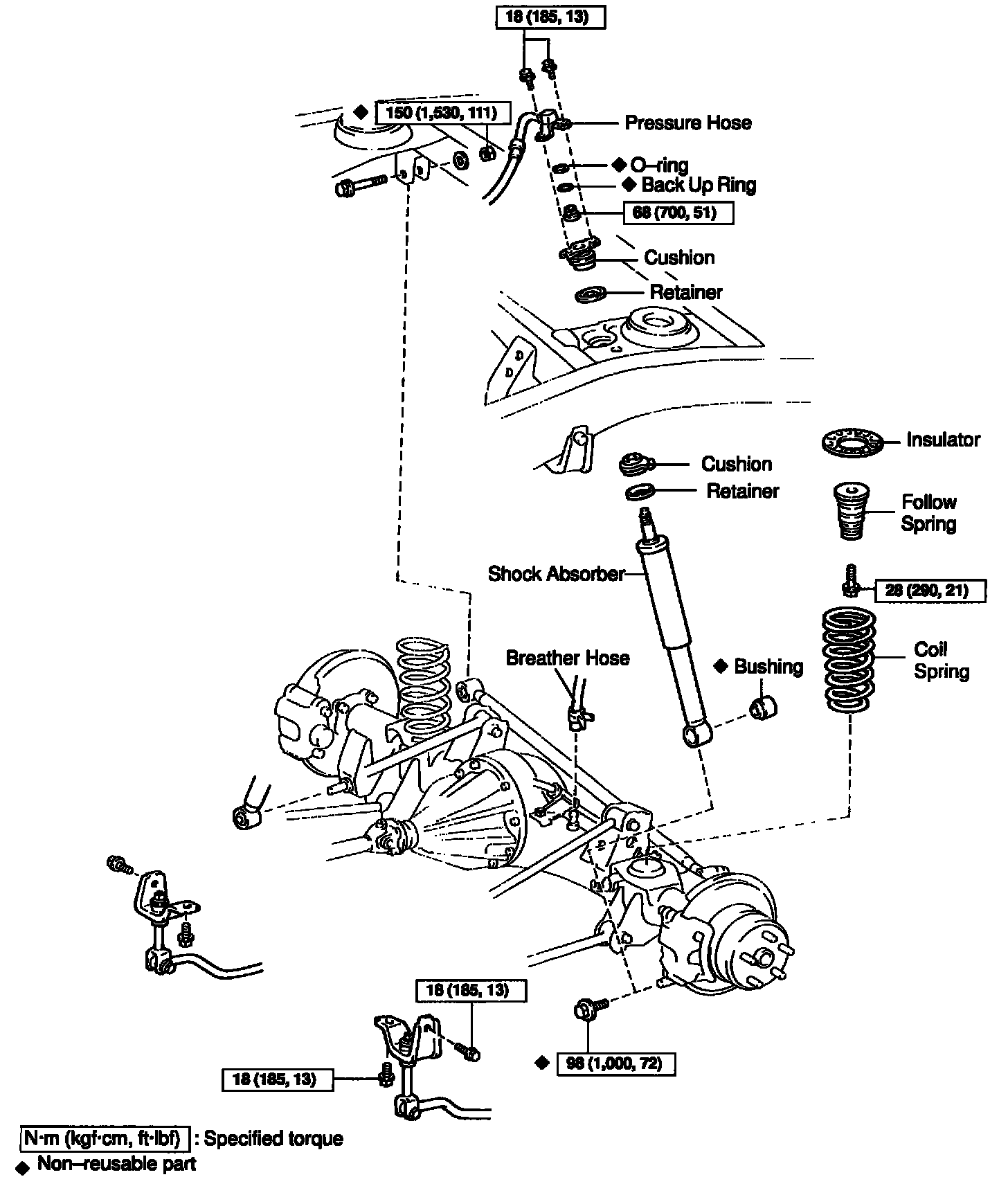

COIL SPRING AND REAR SHOCK ABSORBER REPLACEMENT W/ RELATED COMPONENTS
