A/T - A750 Solenoid Identification

TRANSMISSION & CLUTCH
TC001-03

February 28, 2003

Title:
A750 TRANSMISSION SOLENOID IDENTIFICATION

Models:
'03 GX 470 & LX 470

Introduction

This service bulletin provides information on the proper identification of the 7 solenoids used in an A750 transmission.

Applicable Vehicles
^ 2003 model year GX 470 & LX 470 vehicles.

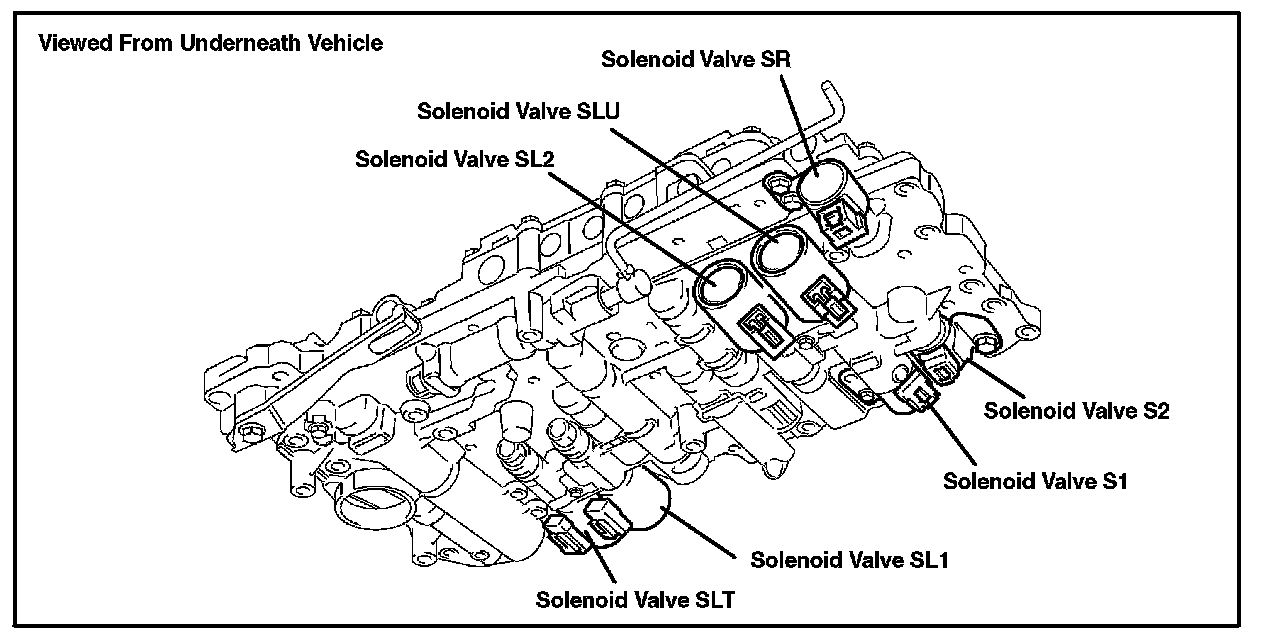

Transmission Solenoid Identification

Parts Information

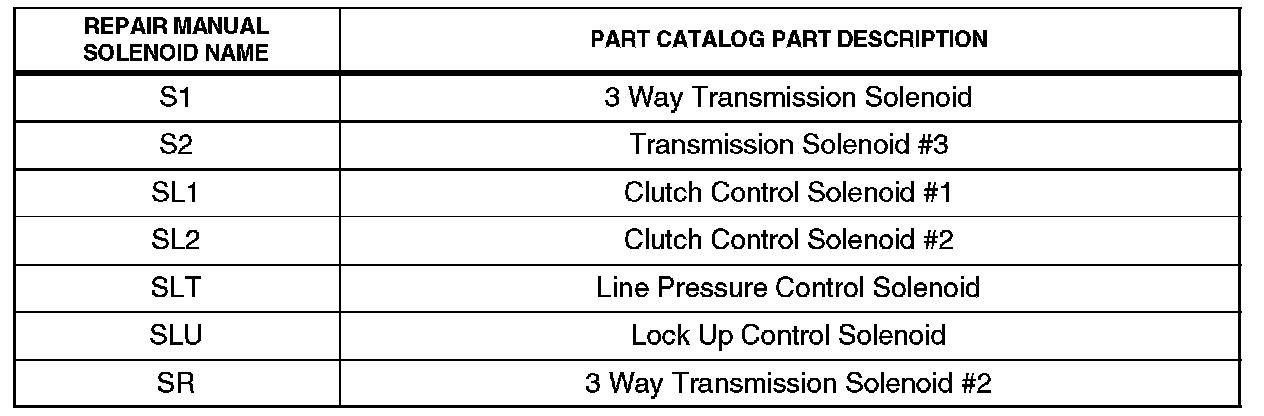

Shown is a chart listing the Repair Manual name of each solenoid used in the A750 transmission as well as the part name description provided in the electronic part catalog.

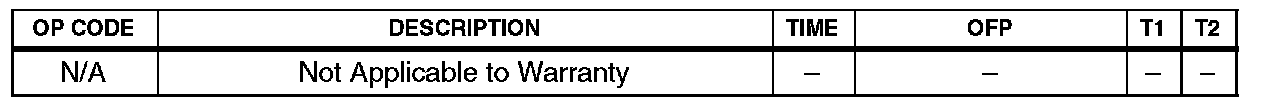

Warranty Information
