Transmission Cooler: Service and Repair

AIR COOLED OIL COOLER
REMOVAL
1. REMOVE RADIATOR GRILLE SUB-ASSY
a. Remove the 3 screws.
b. Release the 2 clips and remove the radiator grille sub assy.





2. SEPARATE POWER STEERING OIL COOLER SUB-ASSY

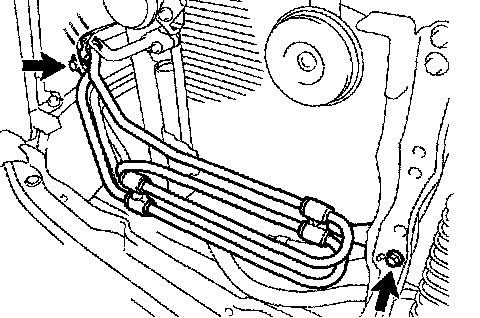

Remove the 2 bolts and separate the power steering oil cooler sub-assy.
Torque: 7.5 Nm (76 kgf-cm, 66 inch lbs.)
3. REMOVE OIL COOLER

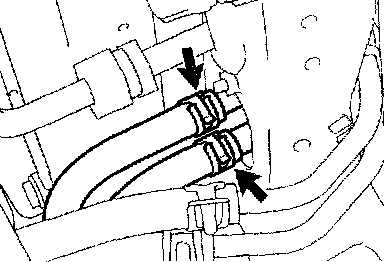

a. Loosen the 2 clips and disconnect the 2 hoses.





b. Remove the 4 bolts and oil cooler.
Torque: 12 Nm (117 kgf-cm, 8 ft. lbs.)

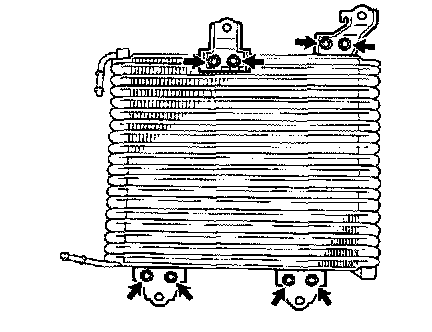

c. Remove the 8 bolts, the 2 oil cooler brackets and the 2 stays.
Torque: 4.9 Nm (50 kgf-cm, 43 inch lbs.)
4. REMOVE OIL COOLER PIPE BRACKET





a. Loosen the 2 clips and disconnect the 2 hoses.

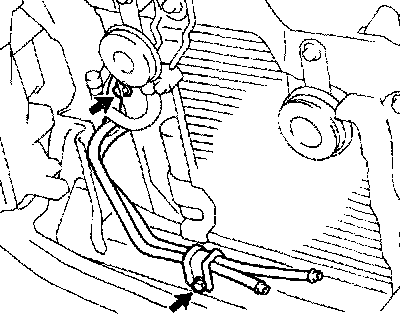

b. Remove the 2 bolts and the oil cooler pipe bracket.
Torque: 4.9 Nm (50 kgf-cm, 43 inch lbs.)
c. Loosen the 2 clips and disconnect the 2 hoses.

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check fluid level.
