Instruments - Service Maintenance Lamp Resetting
ELECTRICALEL002-03
March 10, 2003
Title:
SERVICE MAINTENANCE REMINDER LIGHT RESET PROCEDURE
Models:
'03 GX 470 & LX 470
Introduction
The 2003 model year GX 470 and LX 470 vehicles are equipped with a Service Maintenance Reminder Light. The following procedure should be used to reset the light when the oil has been changed.
Applicable Vehicles
^ 2003 model year GX 470 and LX 470 vehicles.
Reset Procedure
To reset the Service Maintenance Reminder Light:
1. Turn the ignition switch to the "ON" position.
2. Set the Odometer / Trip Display to the "0DO" mode.
3. Turn the ignition switch to the "OFF" position.
4. Depress and hold the Trip Meter "RESET" button while turning the ignition switch to the "ON" position.
5. The Service Maintenance Reminder Light will:
a. Illuminate solidly for 3 seconds.
b. Blink for 2 seconds.
c. Illuminate solidly for 1 second.
d. Turn off.
6. Release the Trip Meter "RESET" button.
7. Turn the ignition to the "OFF" position.
8. Turn the ignition to the "ON" position, and confirm that the Service Maintenance Reminder Light goes out.
NOTE:
If the light continues blinking in step 5a, turn the ignition off, and repeat the procedure from step 1.

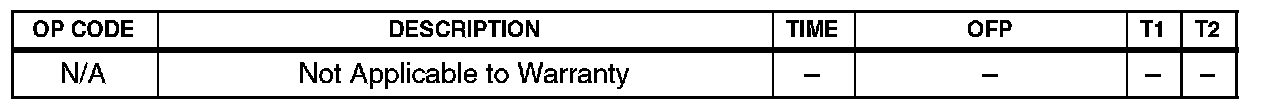

Warranty Information
