Canada - A/T - A/T A750 Solenoid Identification

Bulletin
0596

Issue Date
2003-02-28

Market
Canada

Reference
AT-03-001

Model
LX470

Year Range
2003

Component
AT

Subject:
A750 TRANSMISSION SOLENOID IDENTIFICATION

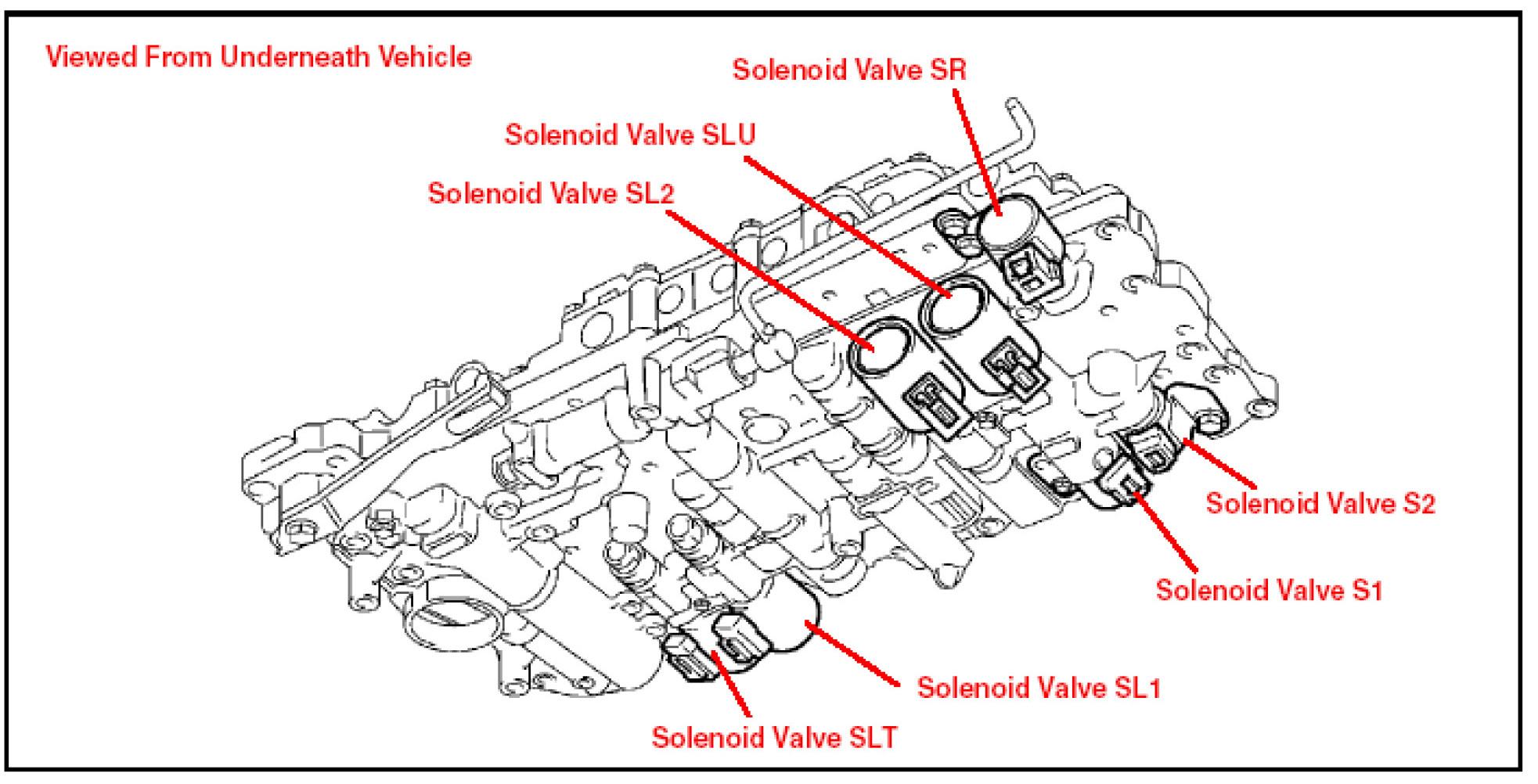

This service Bulletin provides information on the proper identification of the 7 solenoids used in an A750 transmission.







APPLICABLE VEHICLES: 2003 model year LX 470 vehicles.

PARTS INFORMATION:

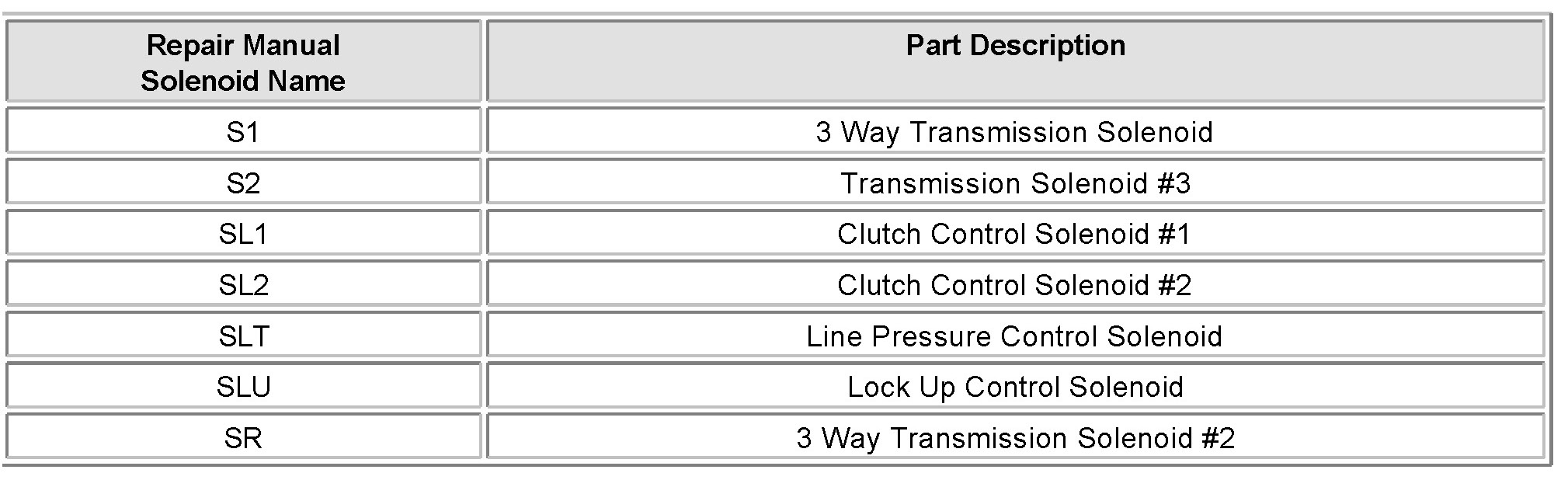

Provided is a chart listing the Repair Manual name of each solenoid used in the A750 transmission as well as the part name description provided in the electronic part catalog.


NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
