Fusible Link: Application and ID

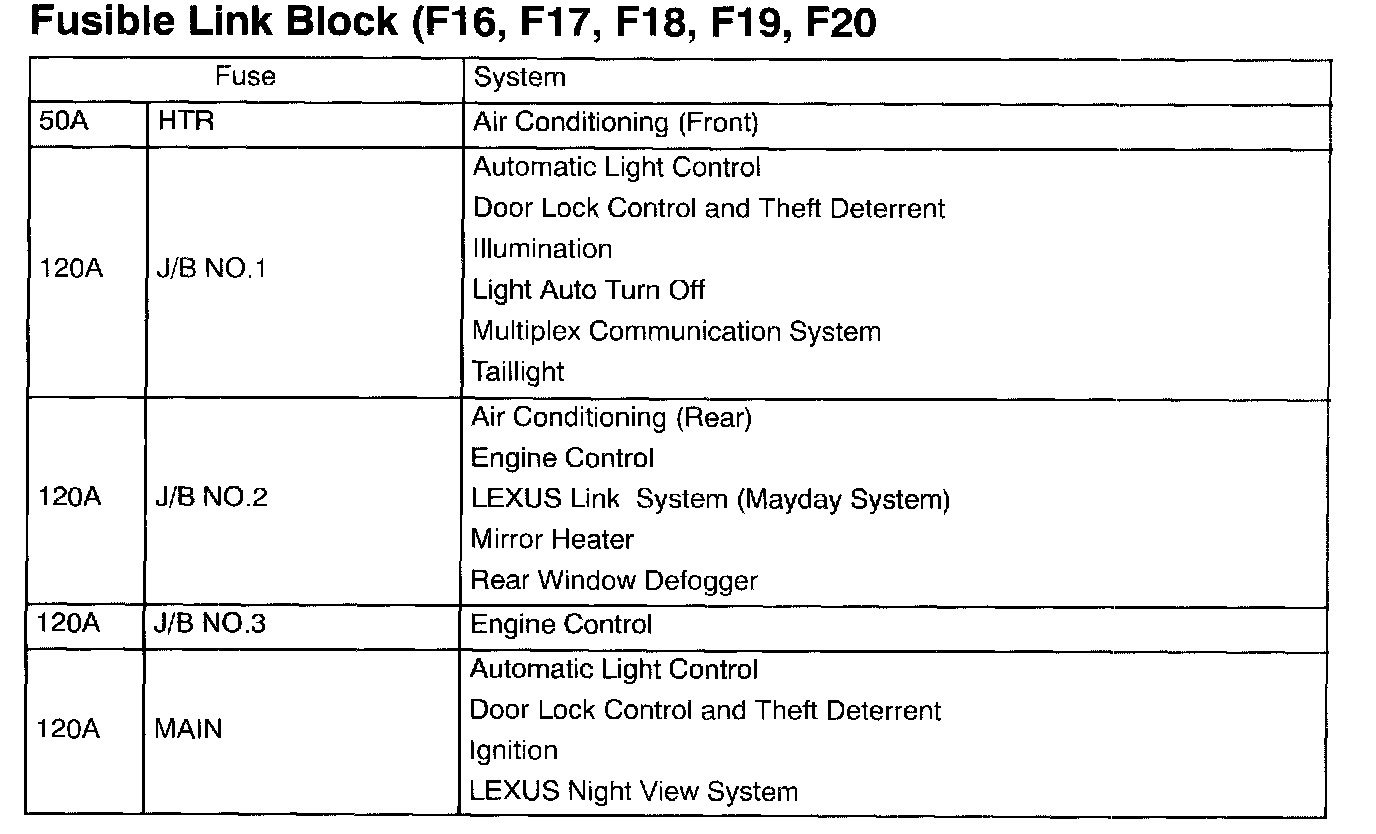

Fusible Link Block (F16, F17, F18, F19, F20) Part 1:

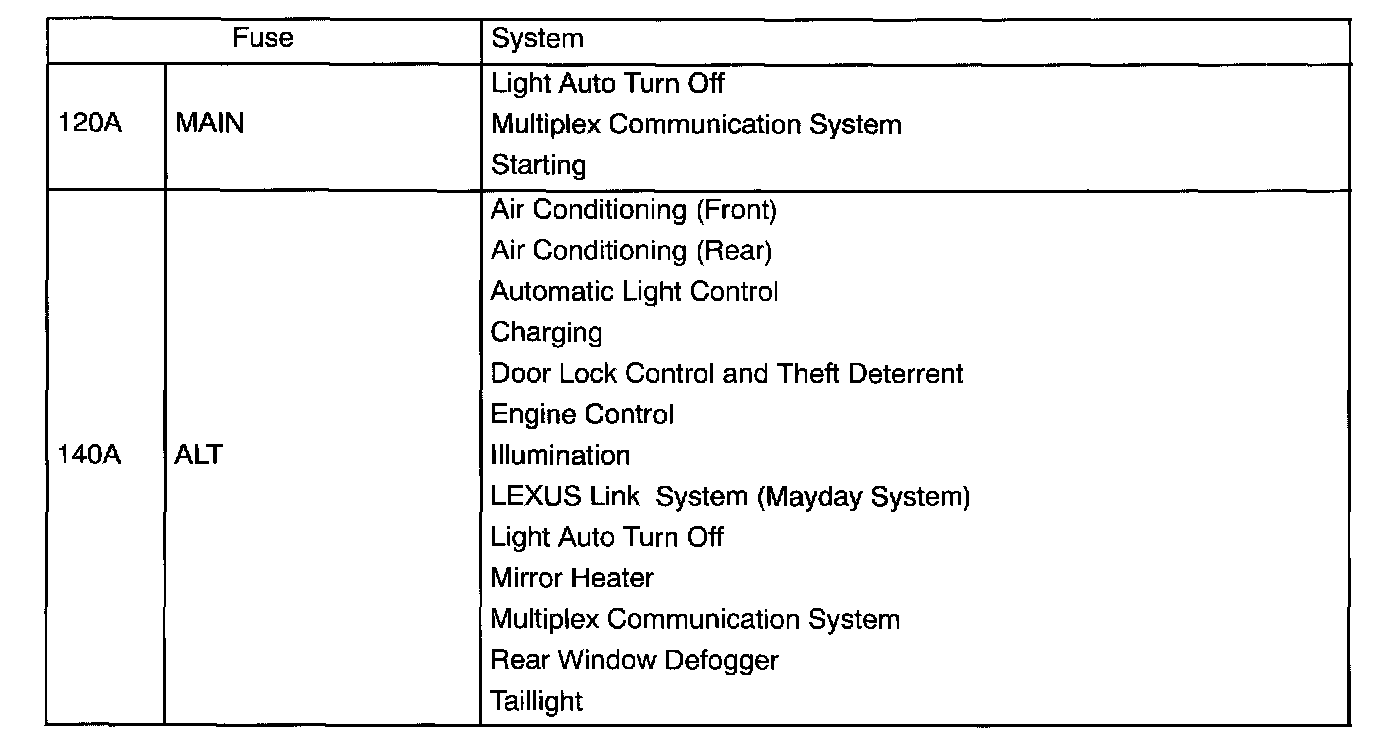

Fusible Link Block (F16, F17, F18, F19, F20) Part 2:
