Brake Warning Light Circuit

CIRCUIT DESCRIPTION

The BRAKE warning light lights up while the brake fluid is insufficient and EBD is abnormally.

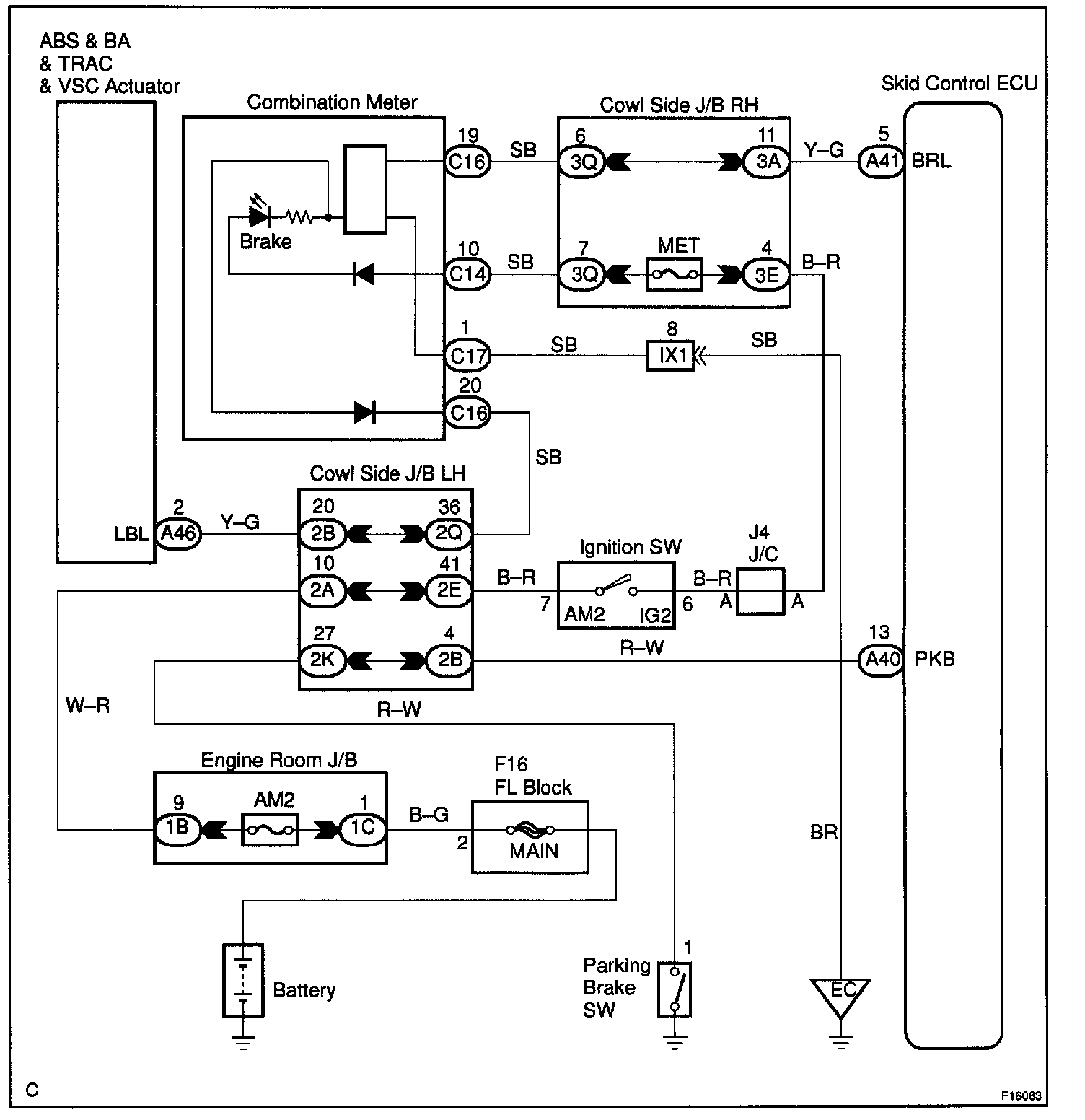

Wiring Diagram:

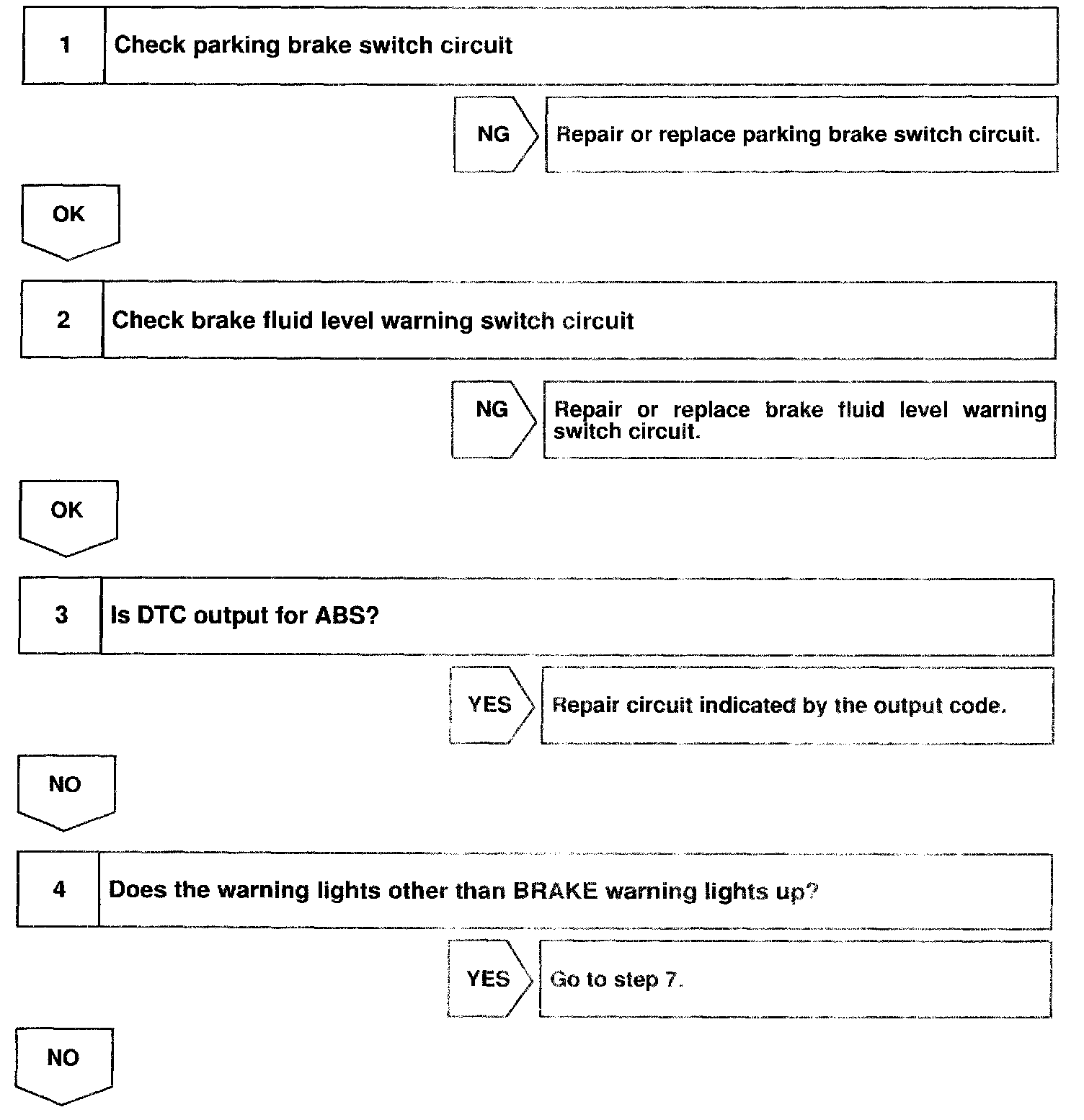

Step 1 - 4:

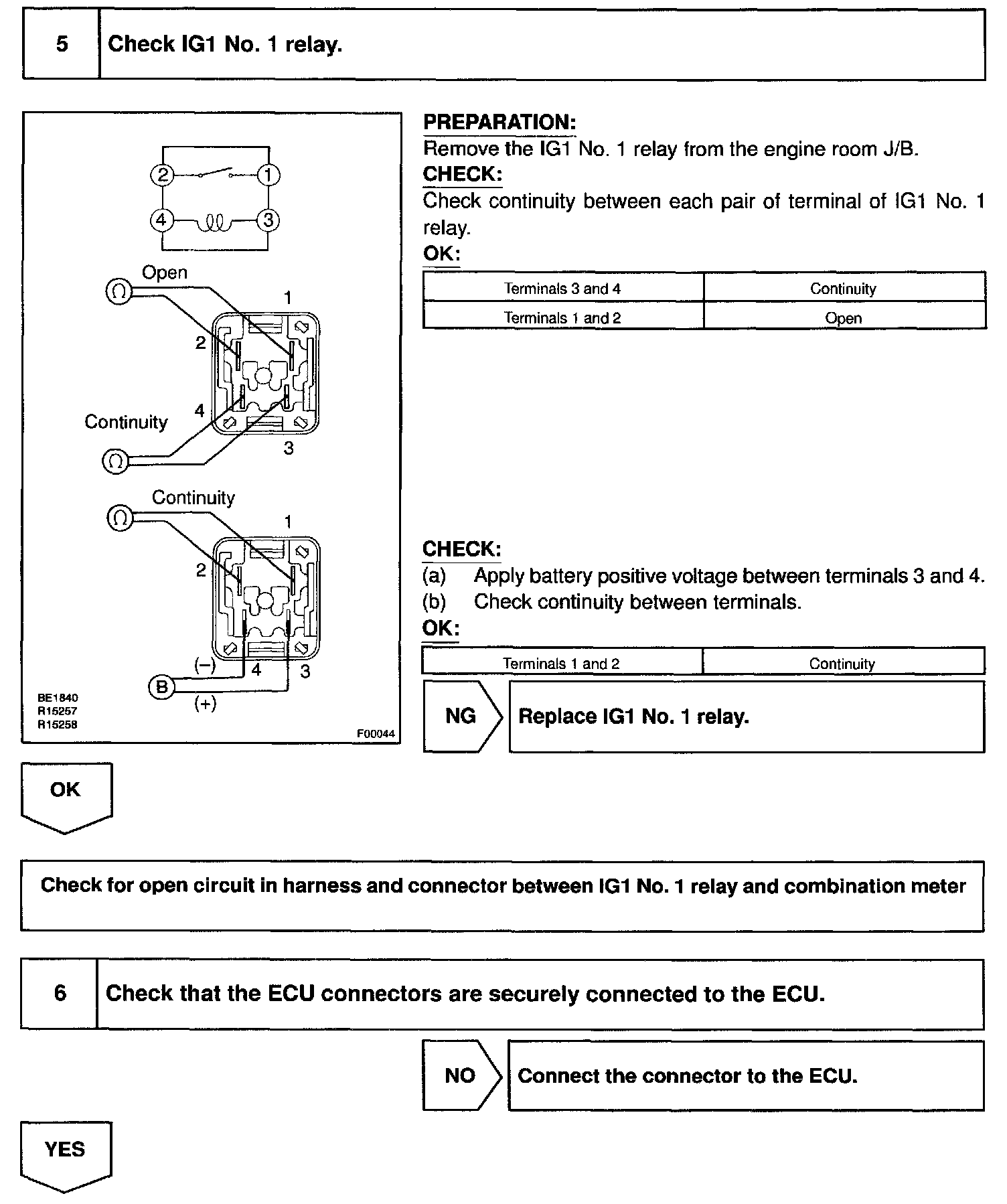

Step 5 - 6:

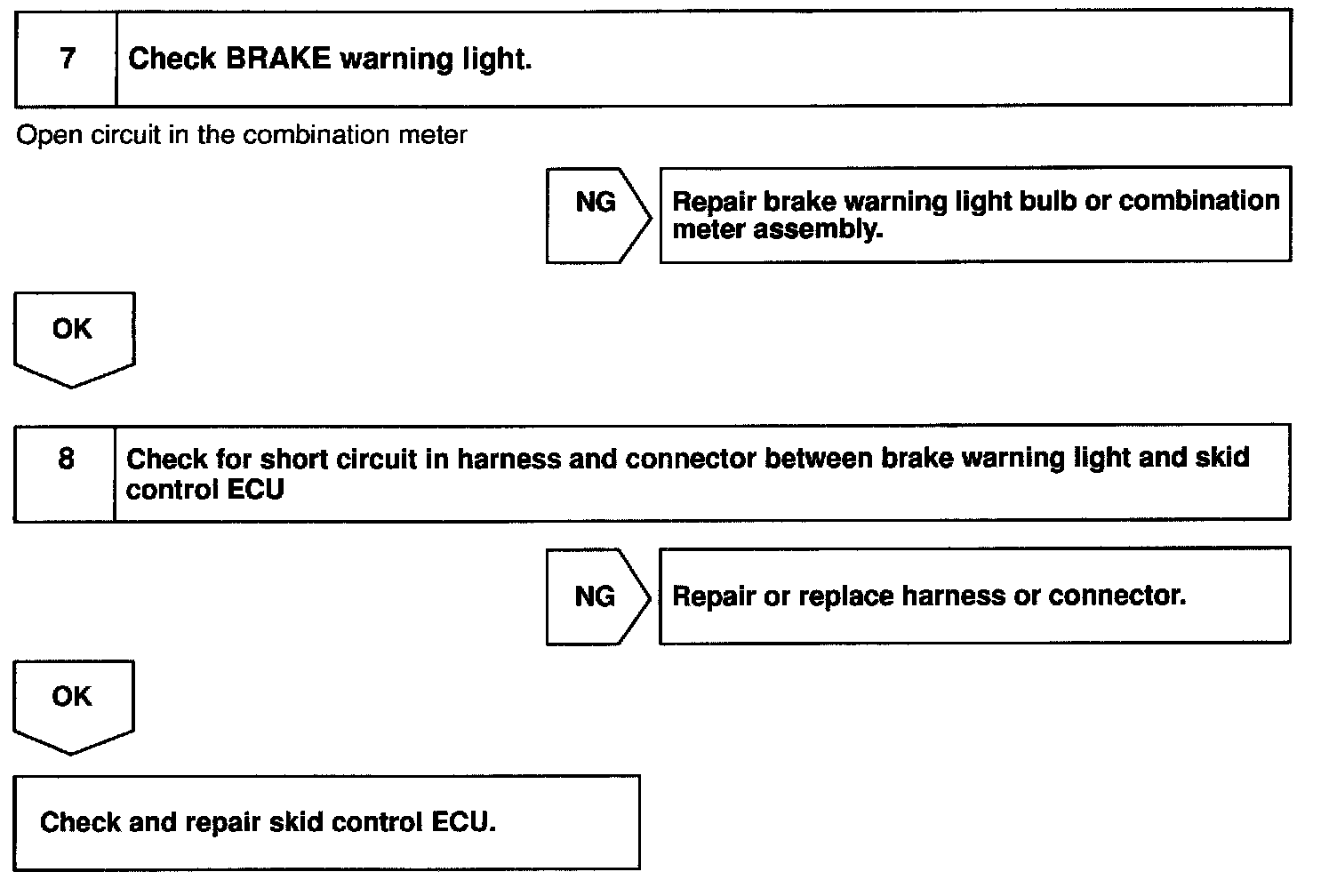

Step 7 - 8:

INSPECTION PROCEDURE
