Global Positioning System Module: Testing and Inspection

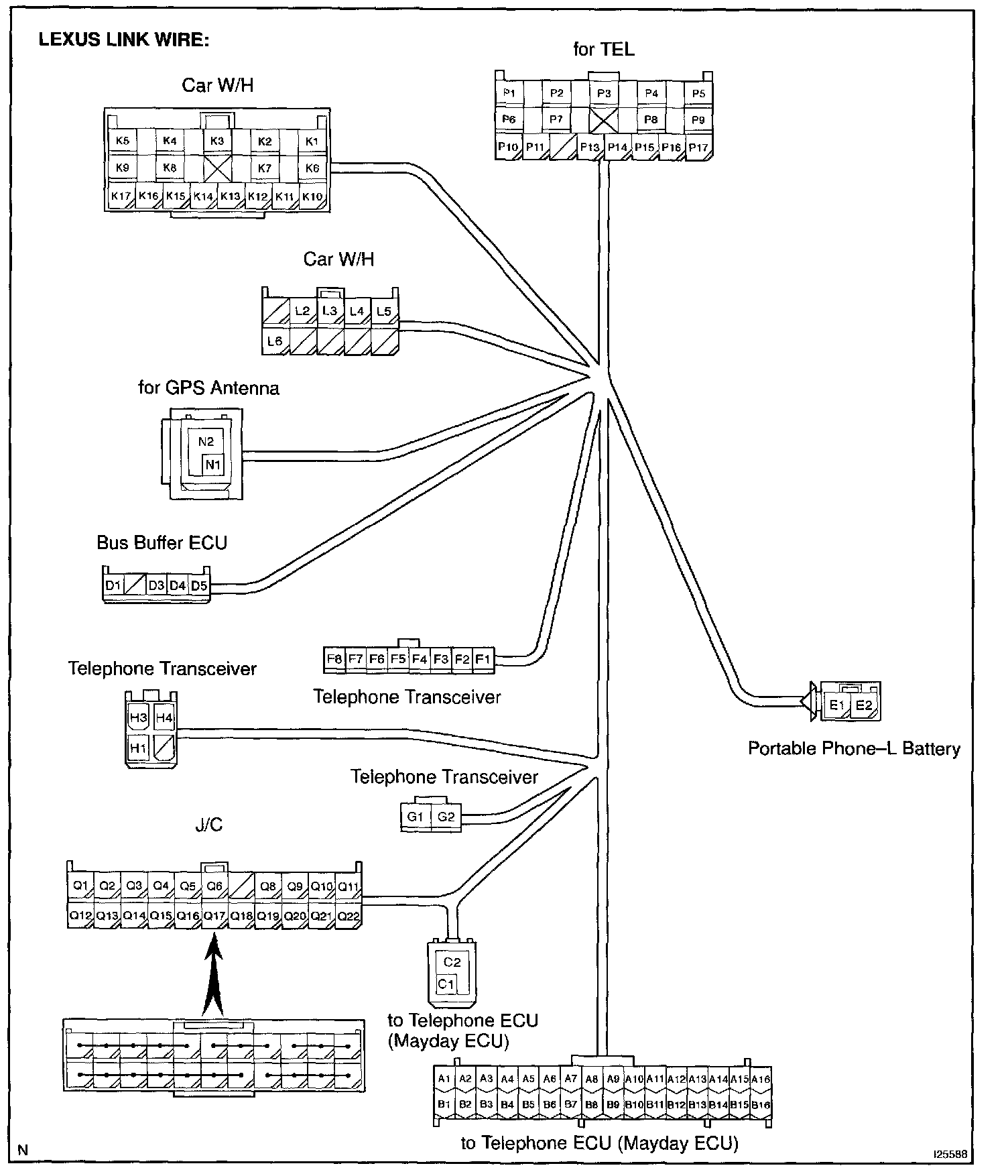

Terminals Of ECU/Pinouts - Connectors:

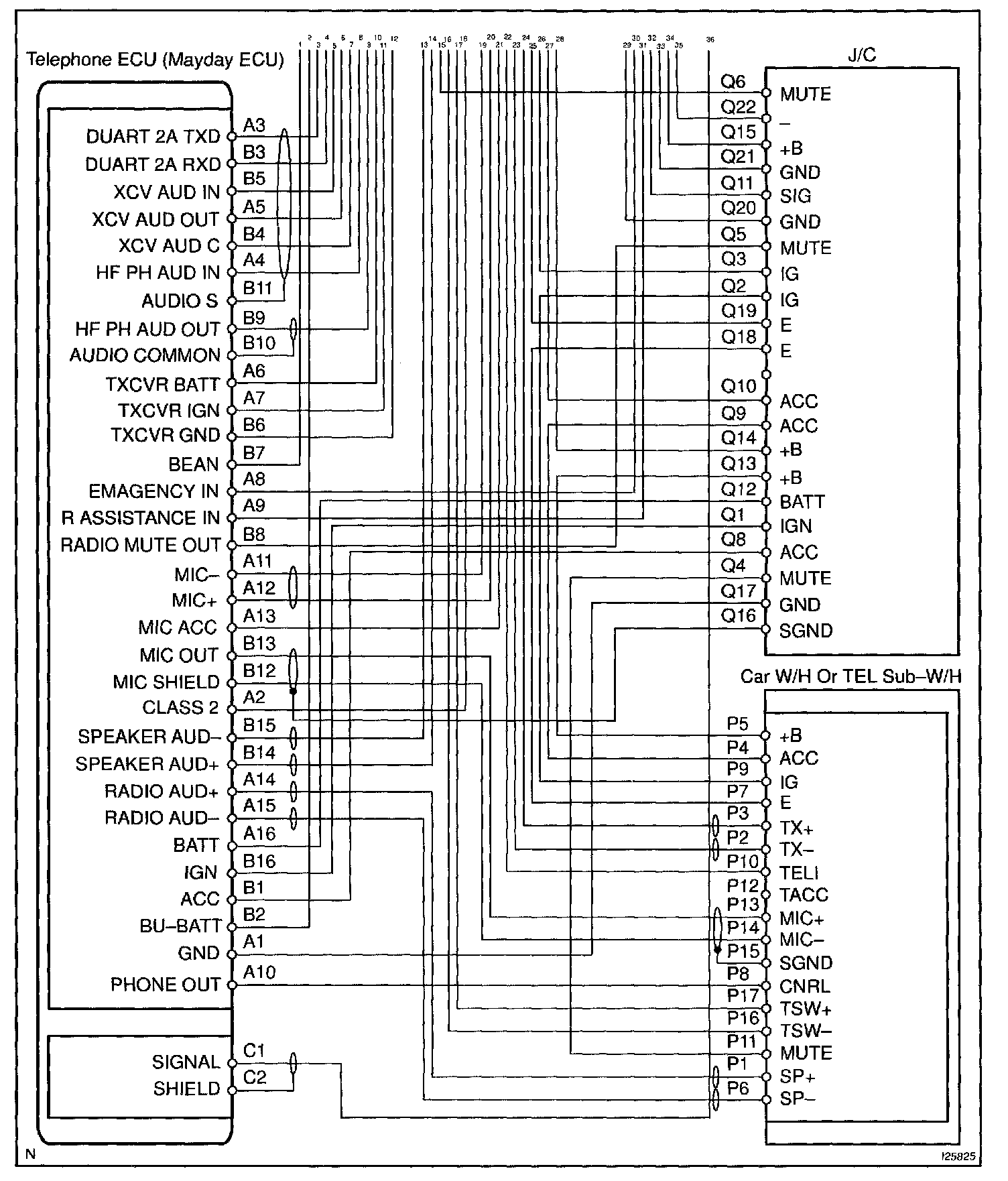

Terminals Of ECU/Pinouts - Wiring Diagrams Part 1:

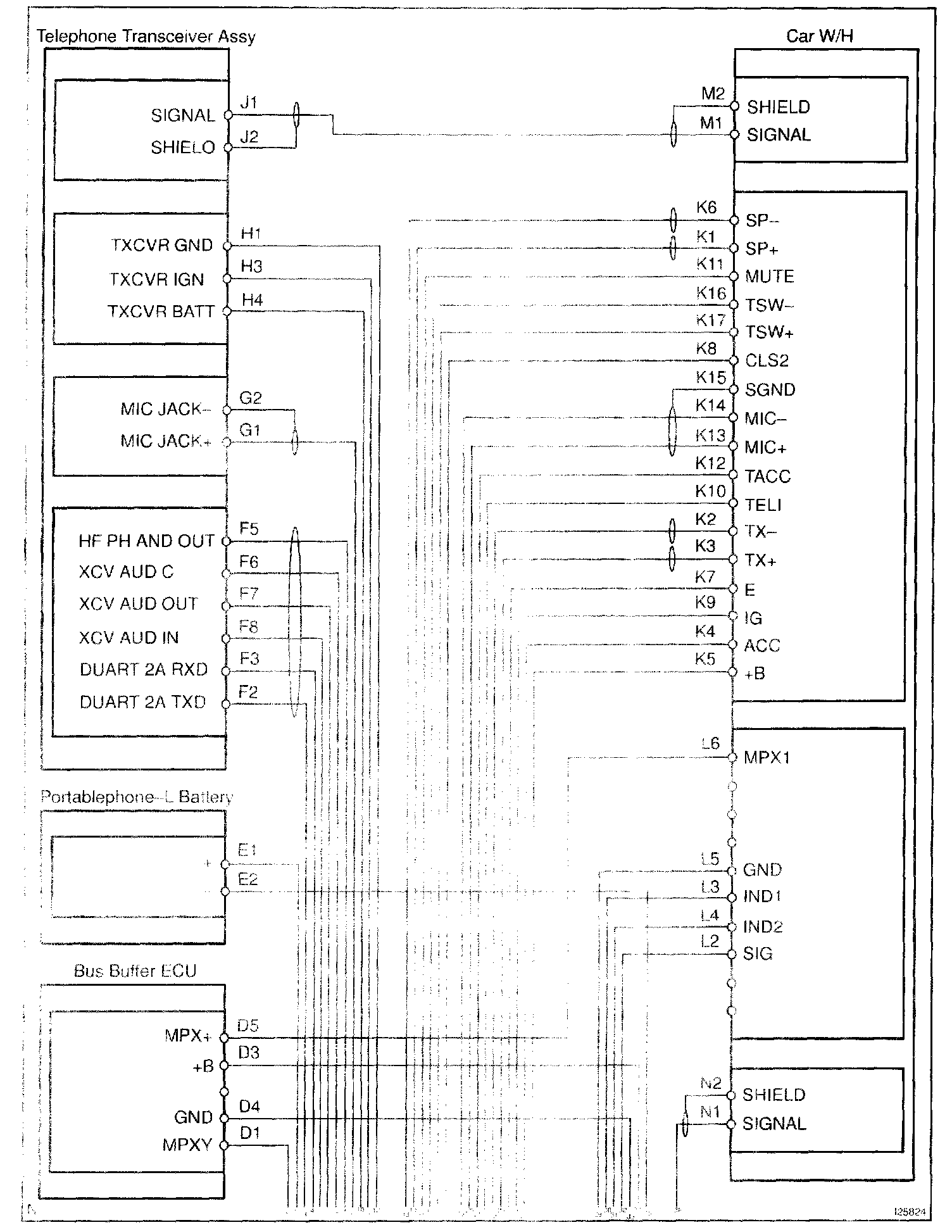

Terminals Of ECU/Pinouts - Wiring Diagrams Part 2:
