Gateway ECU (AVC-LAN Adapter) Circuit
Gateway ECU (AVC-LAN Adapter) Circuit

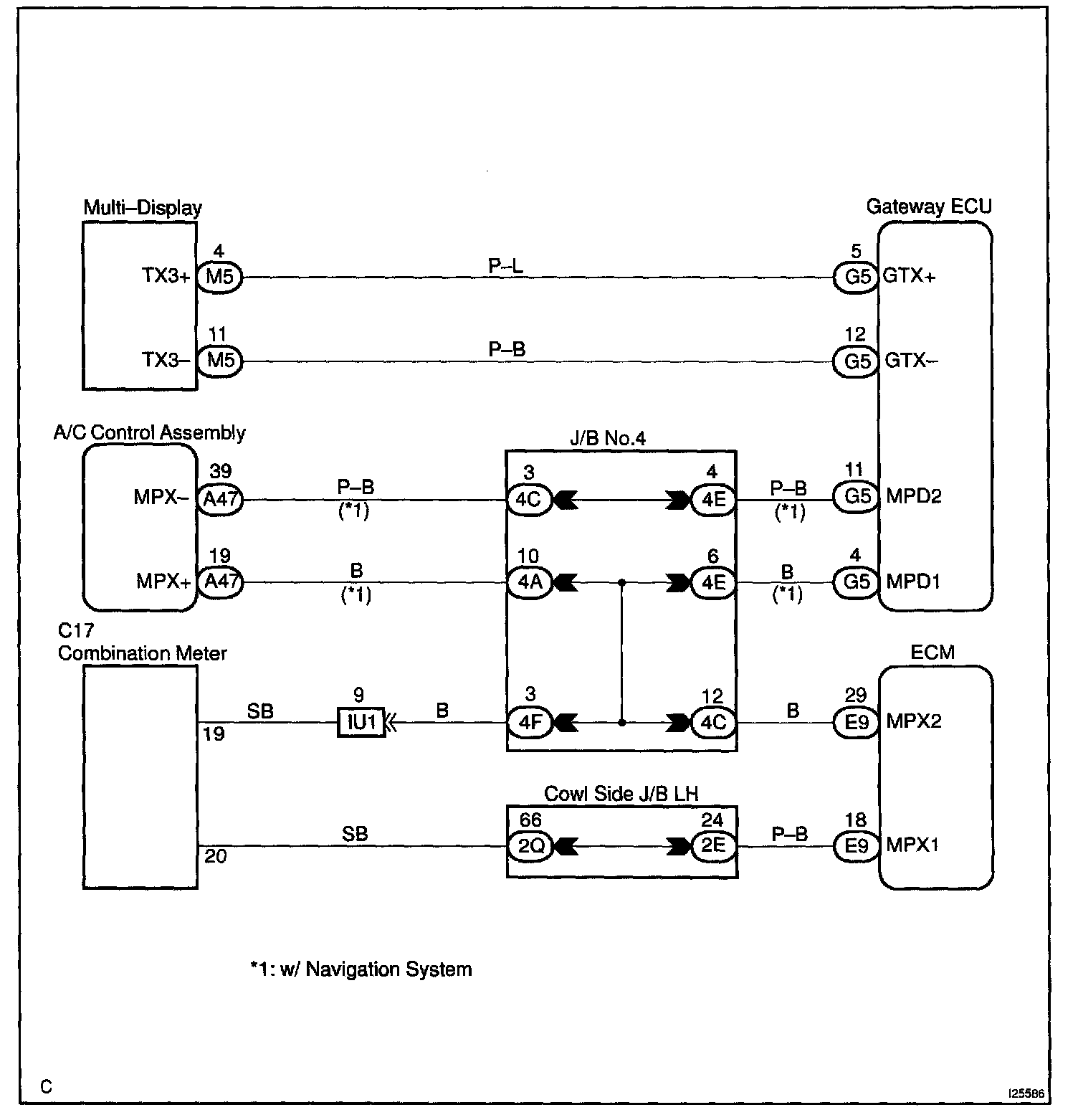

Wiring Diagram:

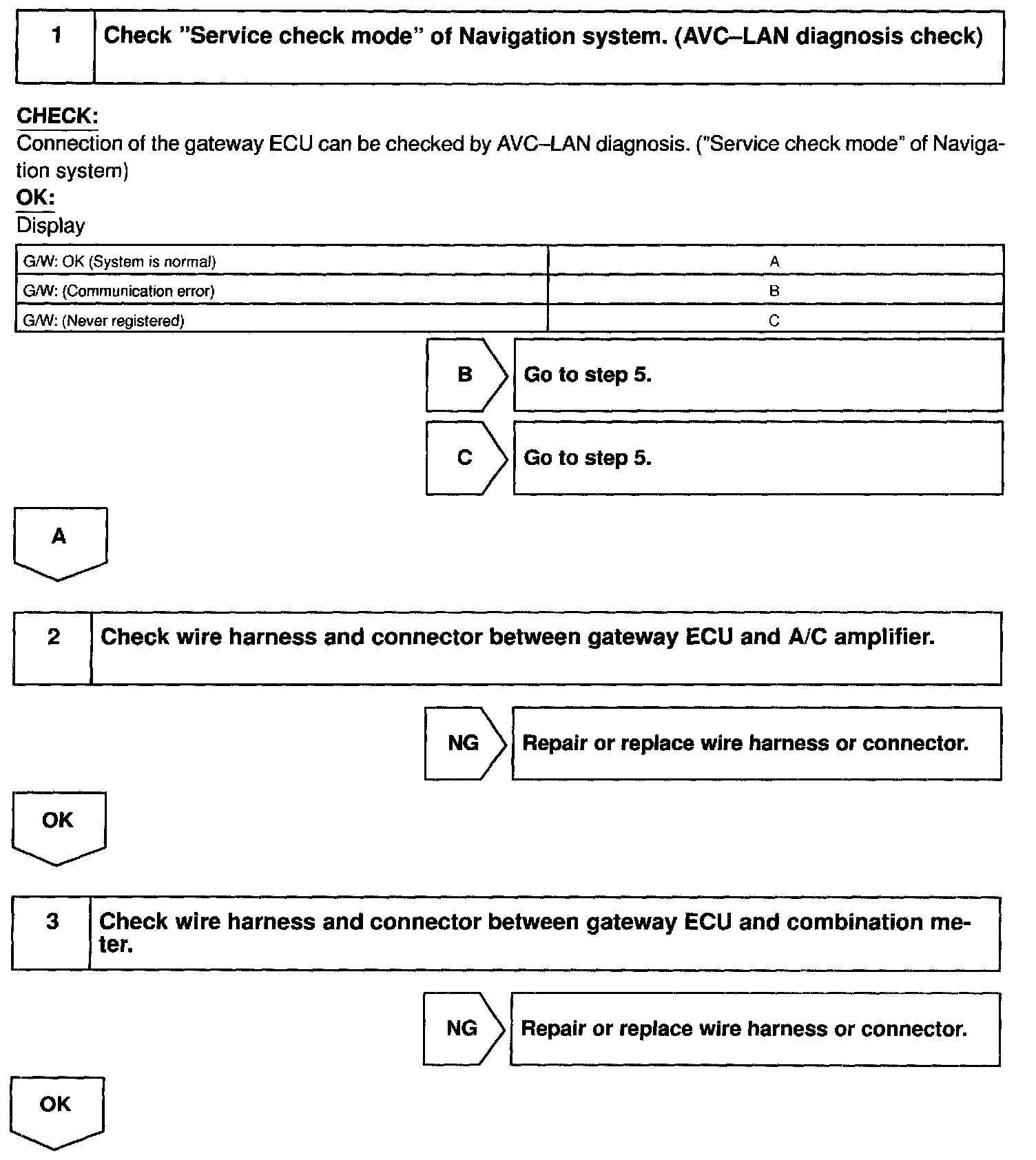

Step 1 - 3:

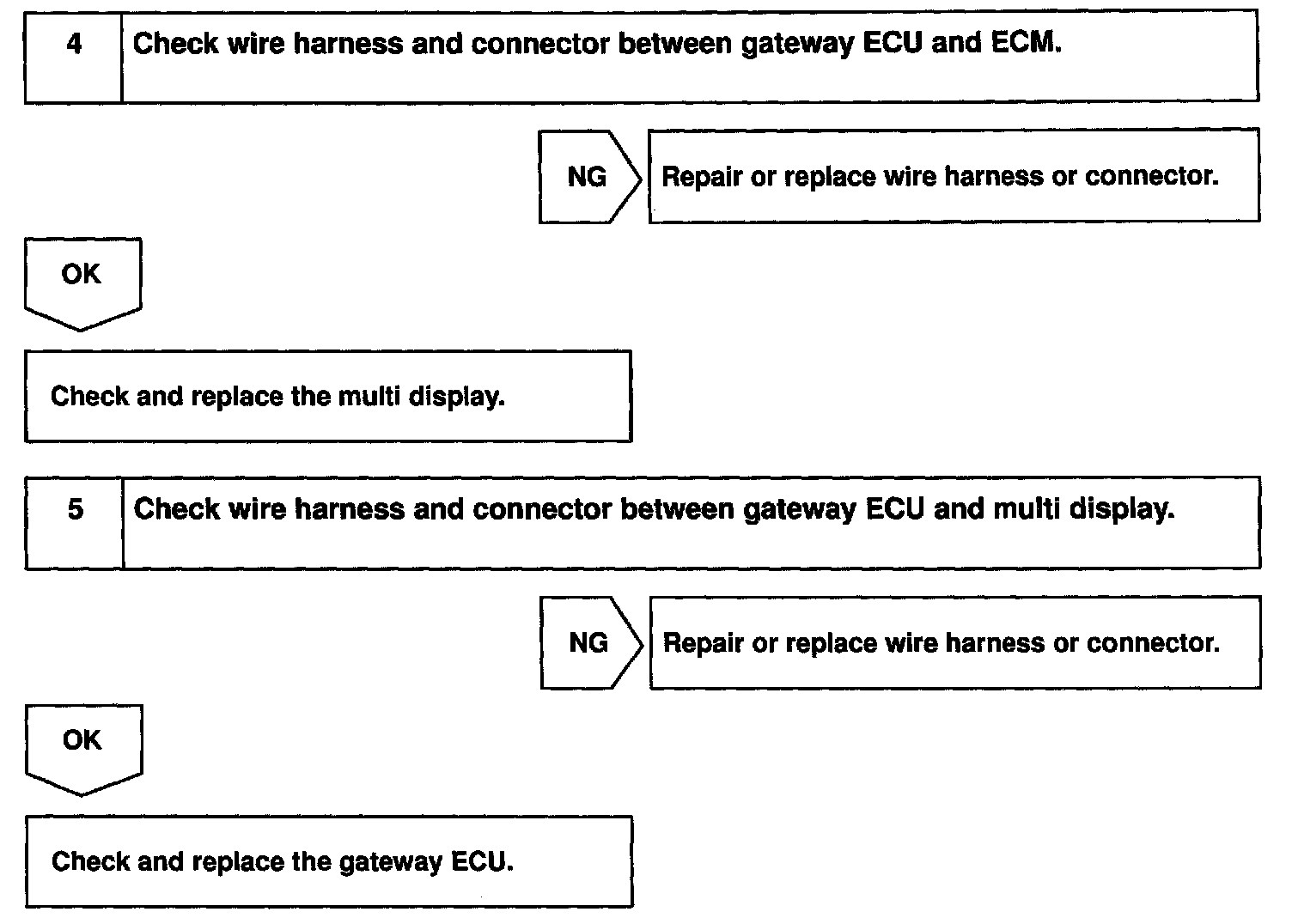

Step 4 - 5:
INSPECTION PROCEDURE
