"Service Button" Working, Connection Cannot Be Made.

When "Service Button" Is Working, the Connection to LEXUS Link Center Cannot Be Made or Is Immediately Cut Off

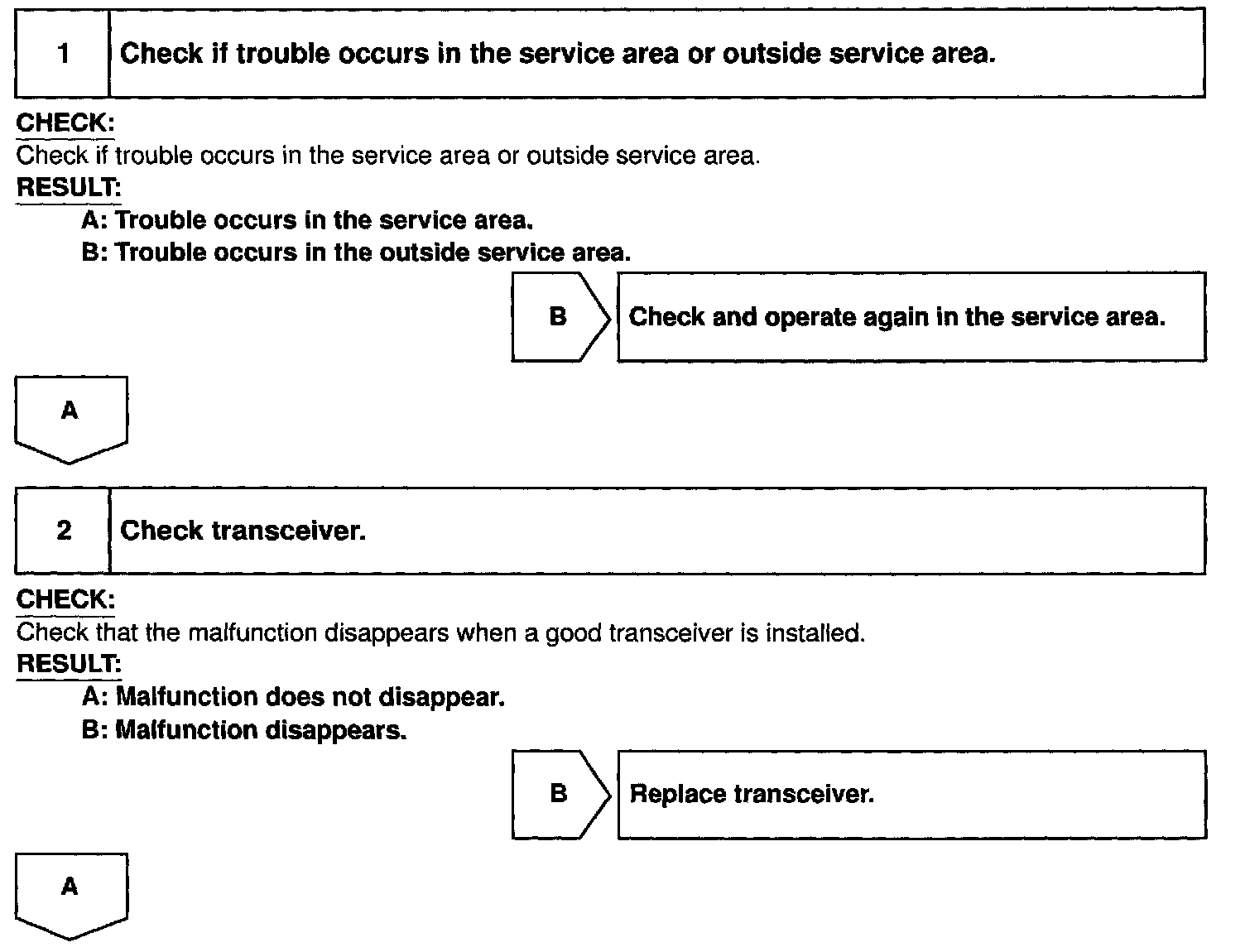

Step 1 - 2:

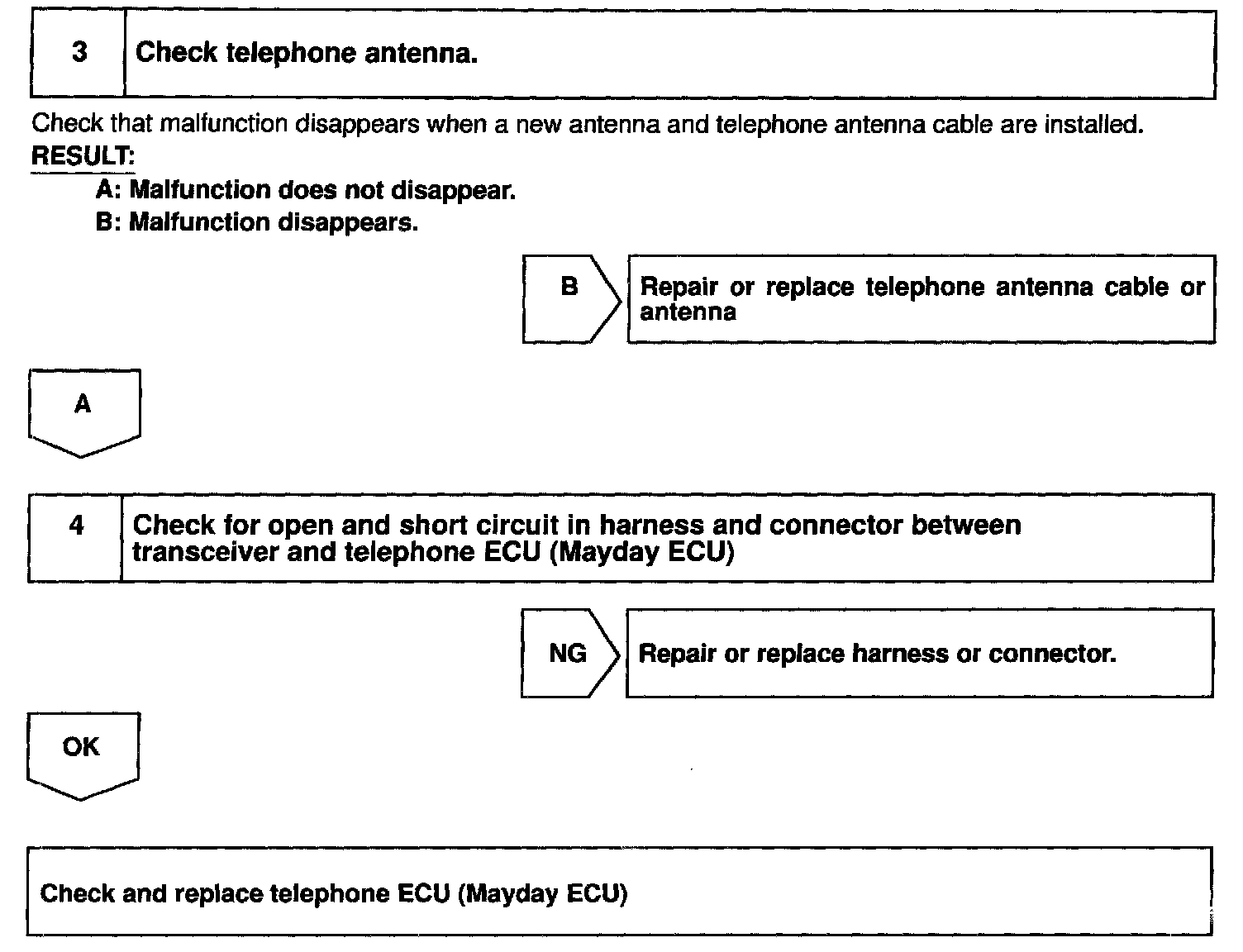

Step 3 - 4:




INSPECTION PROCEDURE
