Combination Meter ECU Power Source Circuit
Combination Meter ECU Power Source Circuit

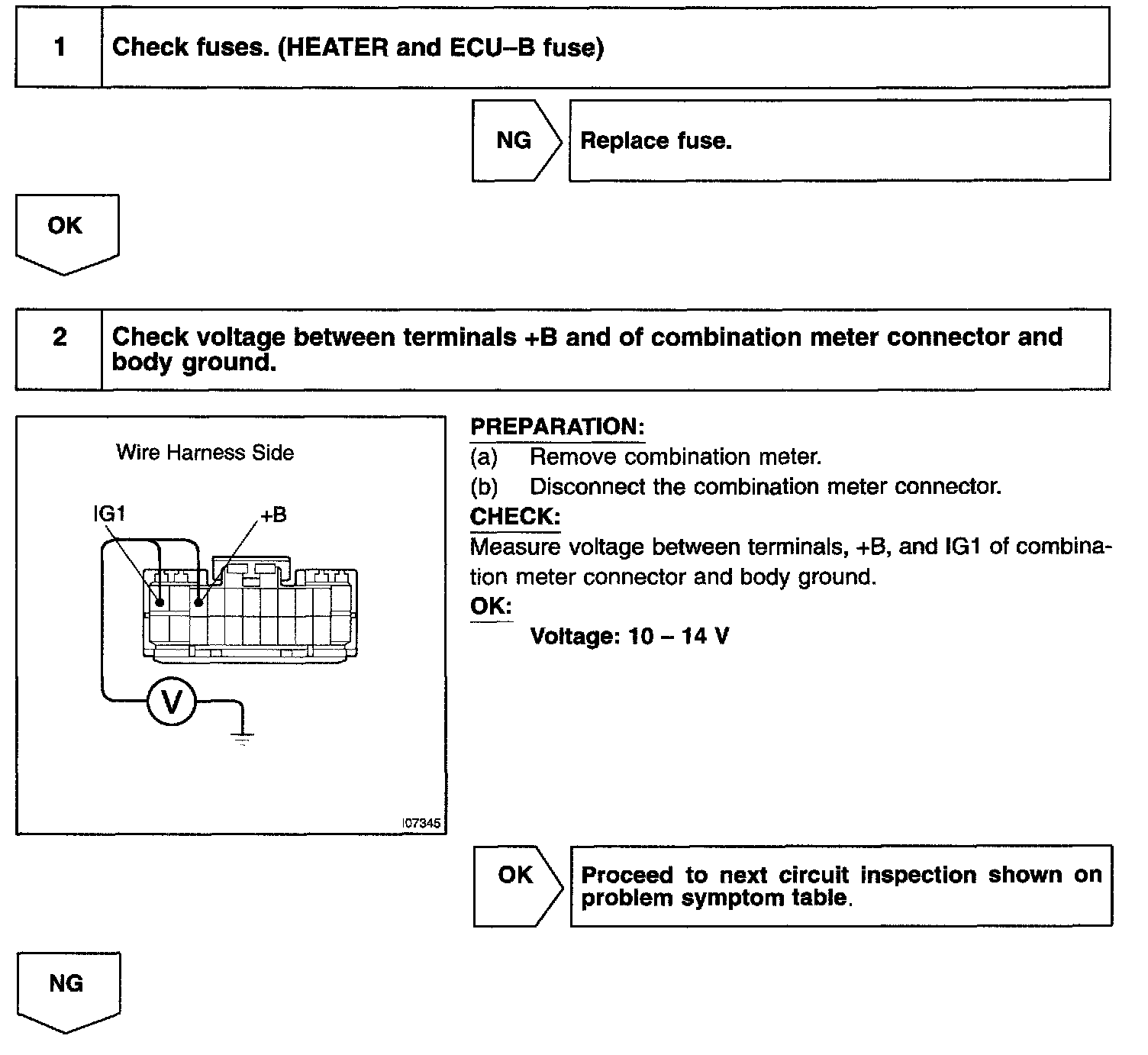

Step 1 - 2:

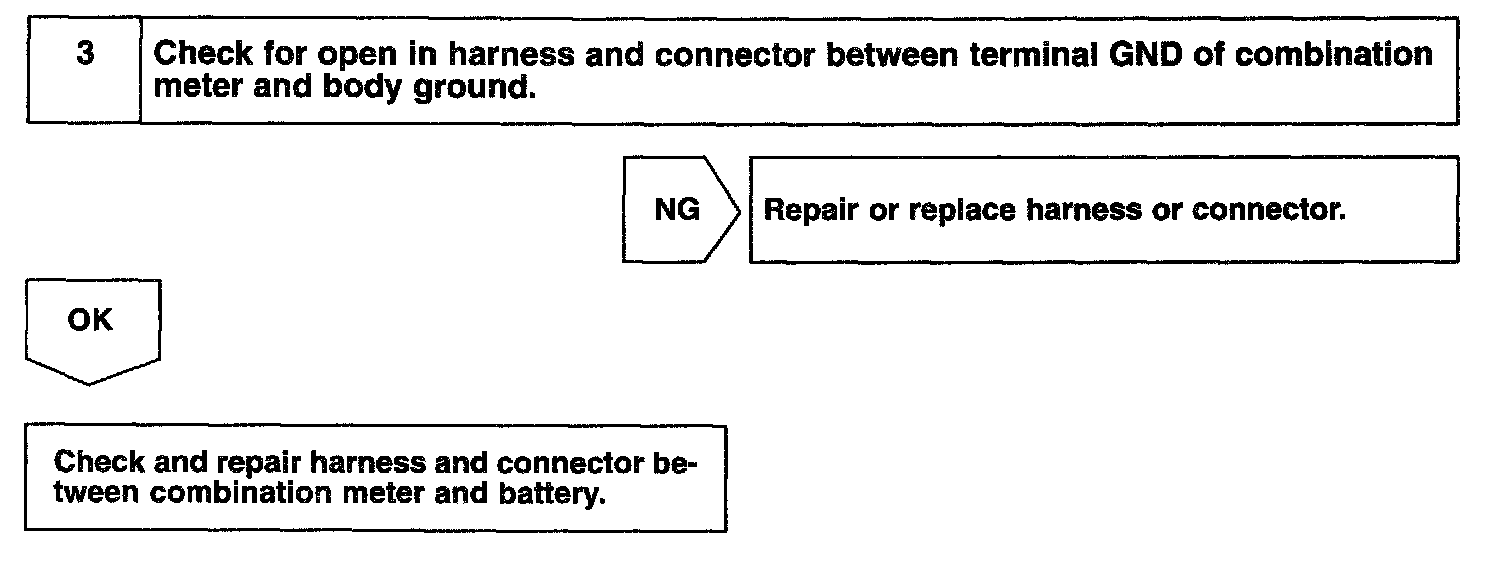

Step 3:
INSPECTION PROCEDURE
