Power Seat Control Switch Circuit

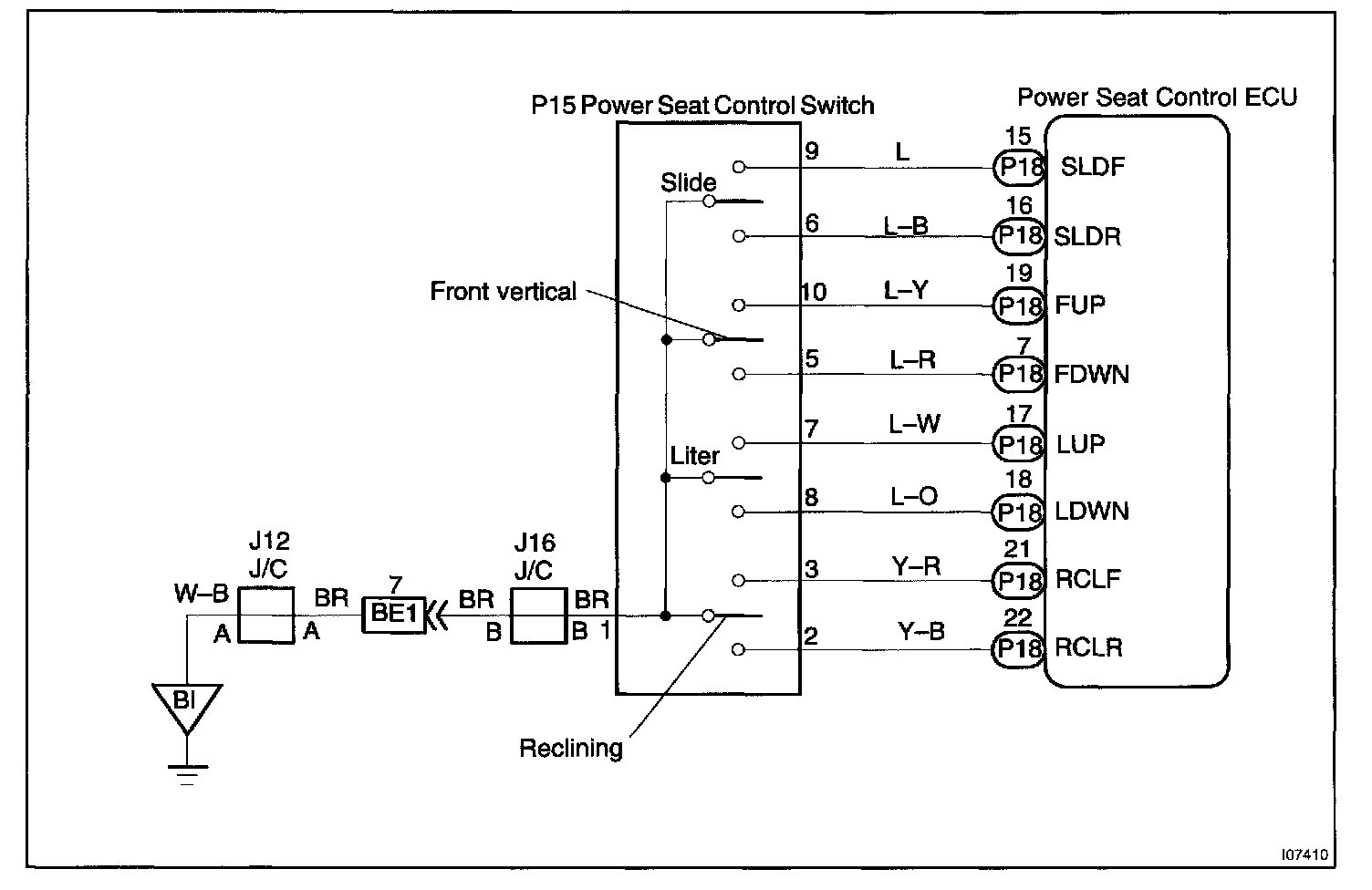

Wiring Diagram:

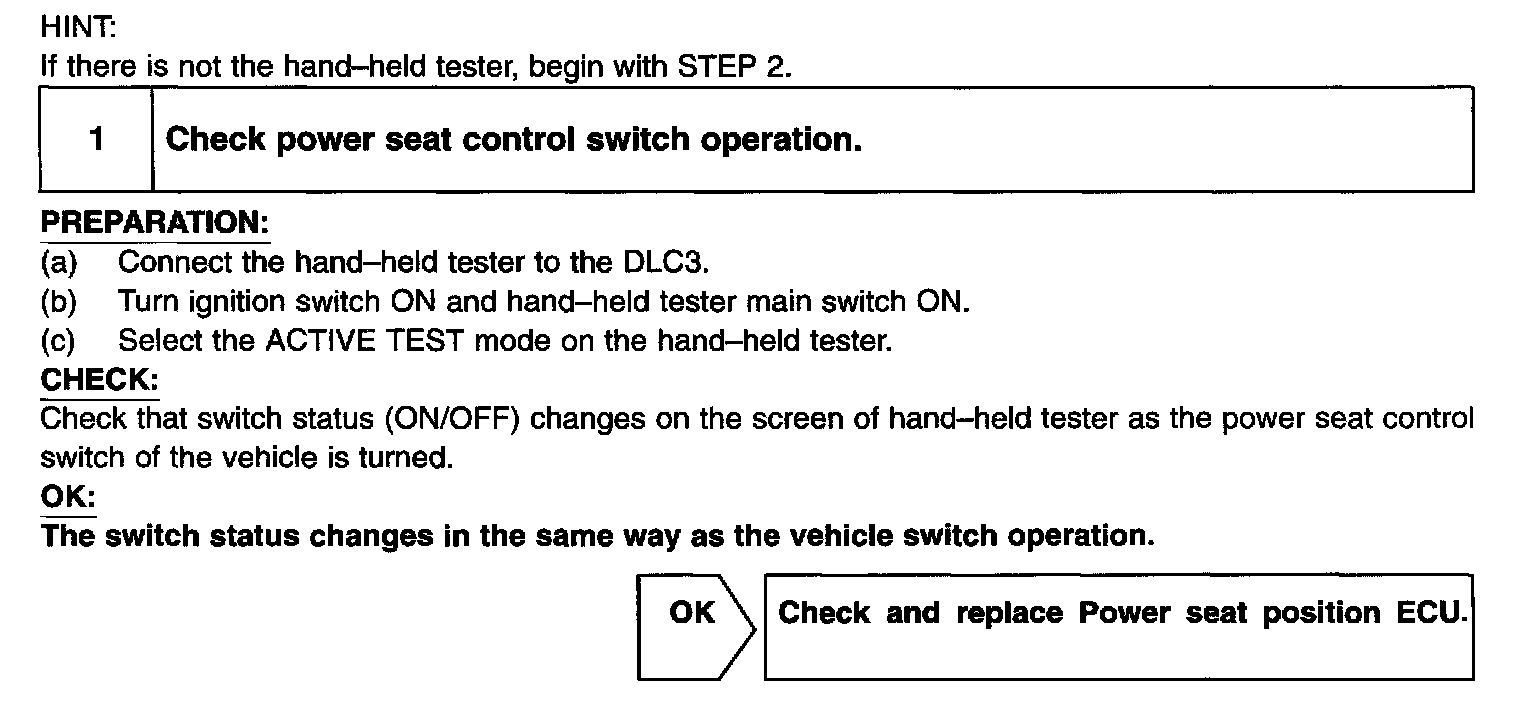

Step 1:

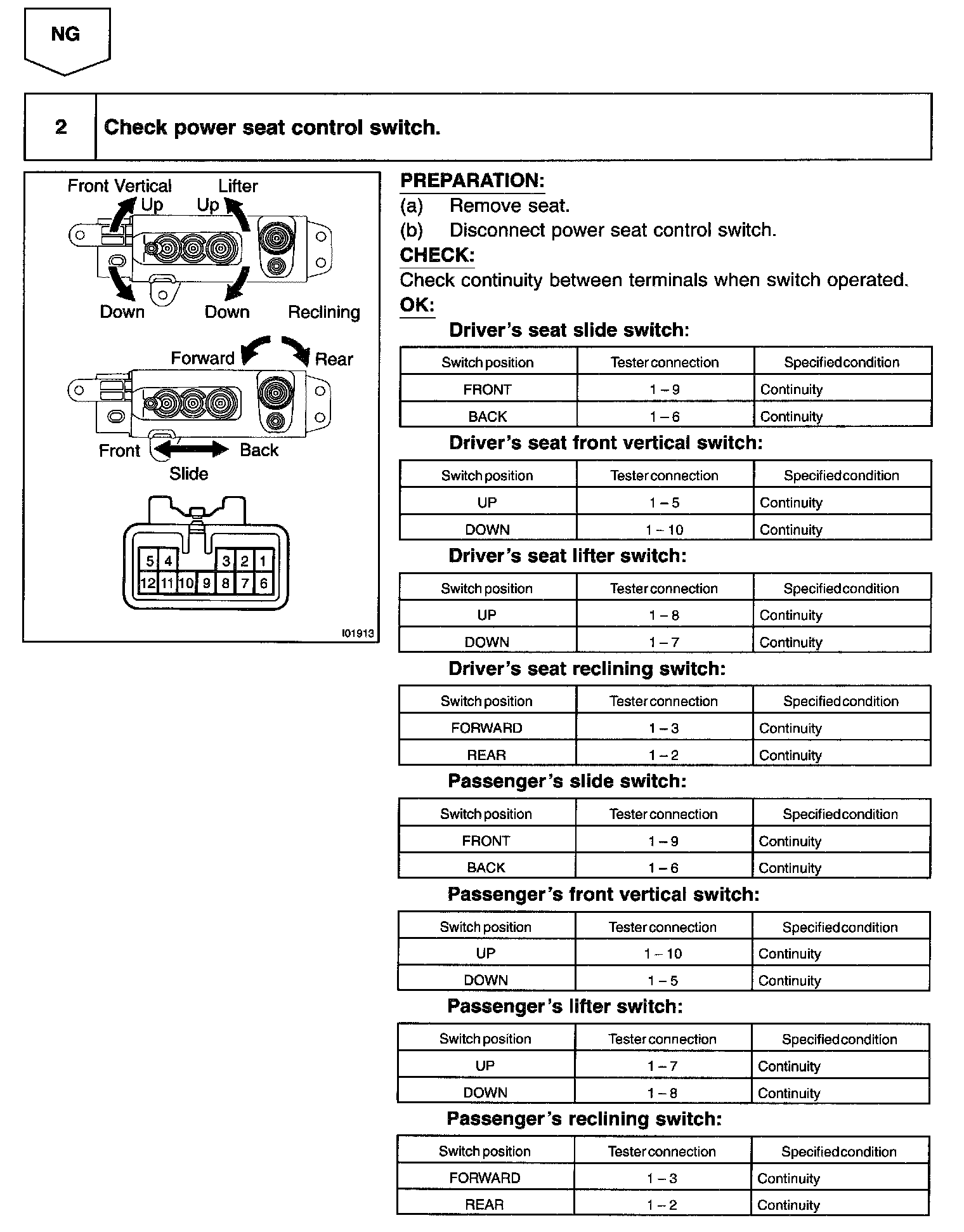

Step 1 (Continued) - 2:

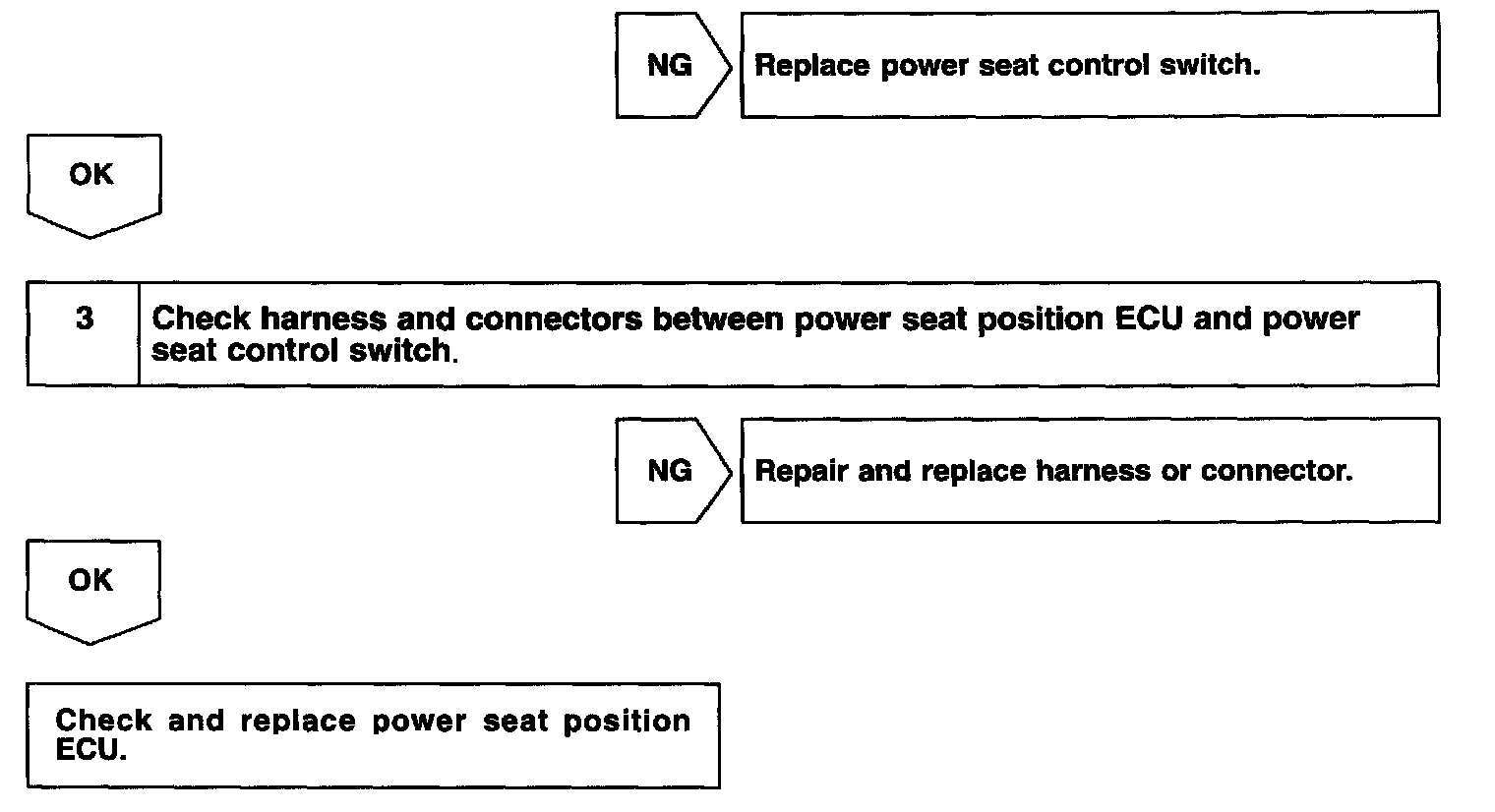

Step 2 (Continued) - 3:




INSPECTION PROCEDURE
