ECU Power Source Circuit
ECU Power Source Circuit

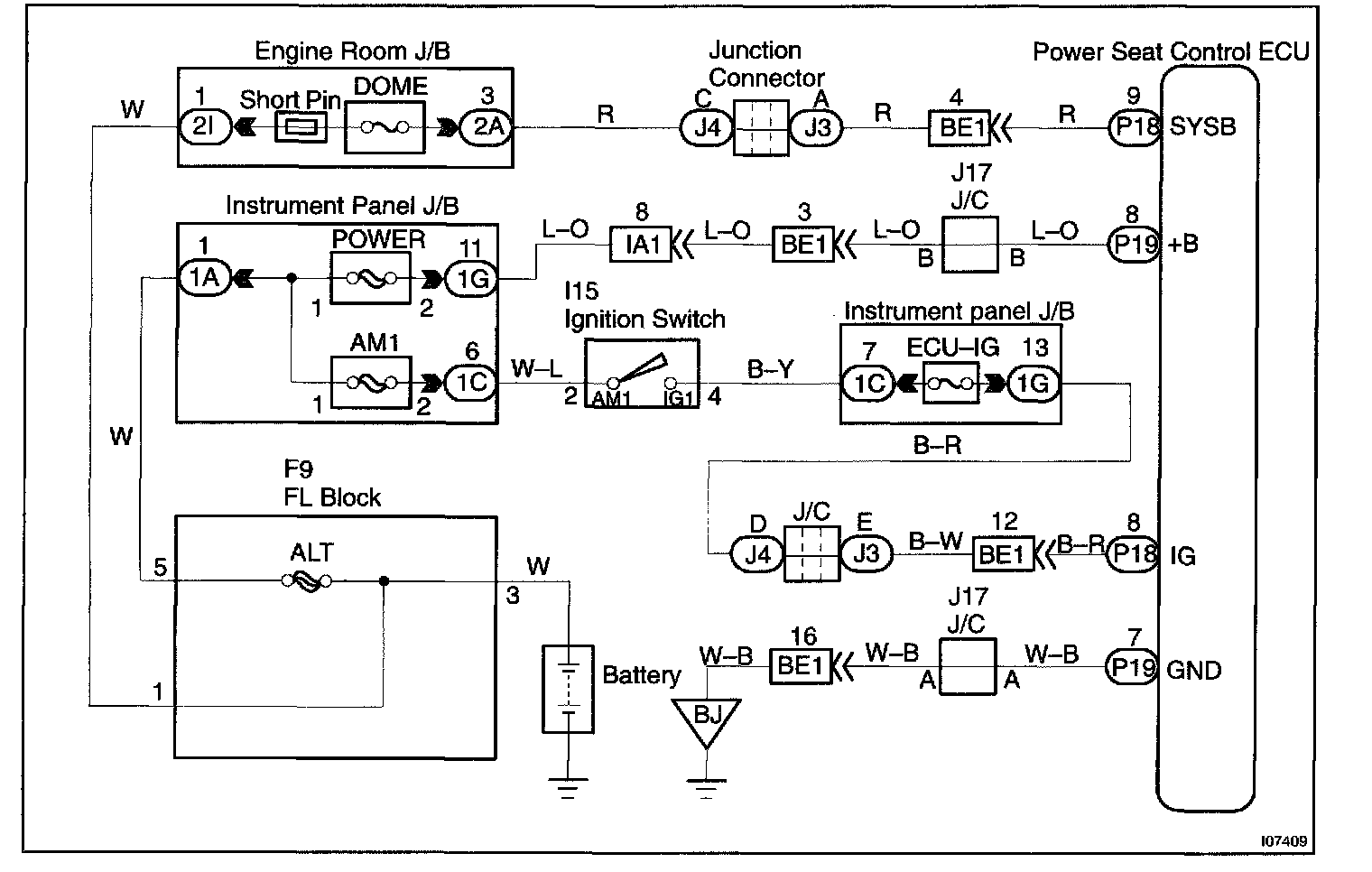

Wiring Diagram:

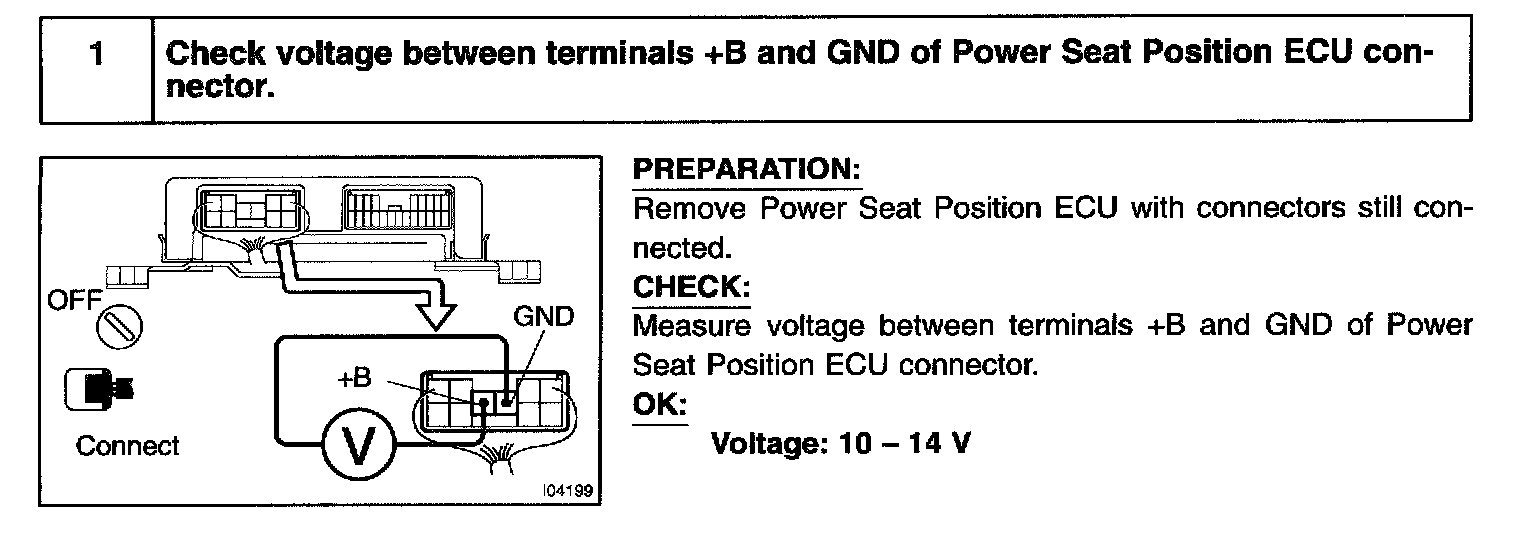

Step 1:

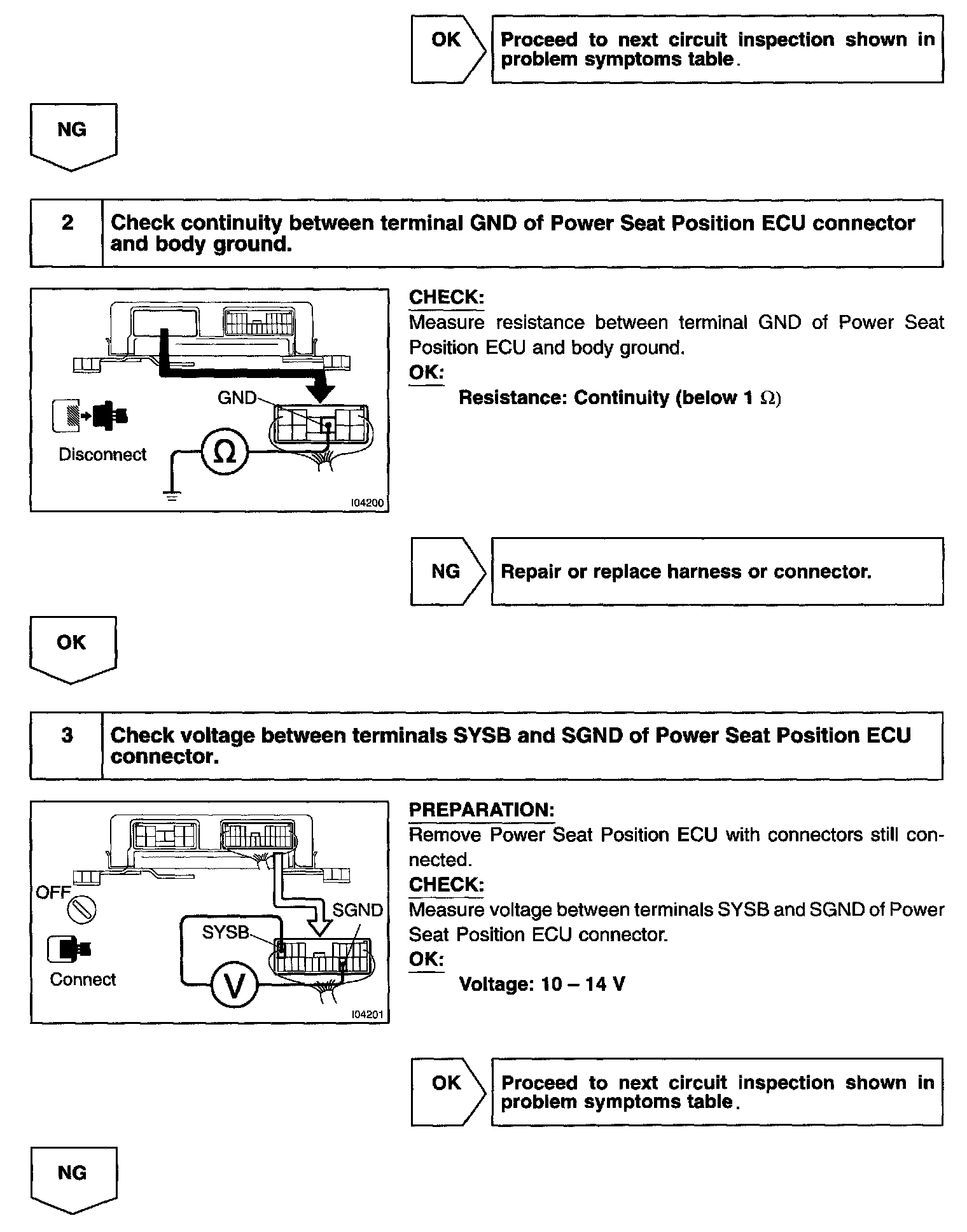

Step 1 (Continued) - 3:

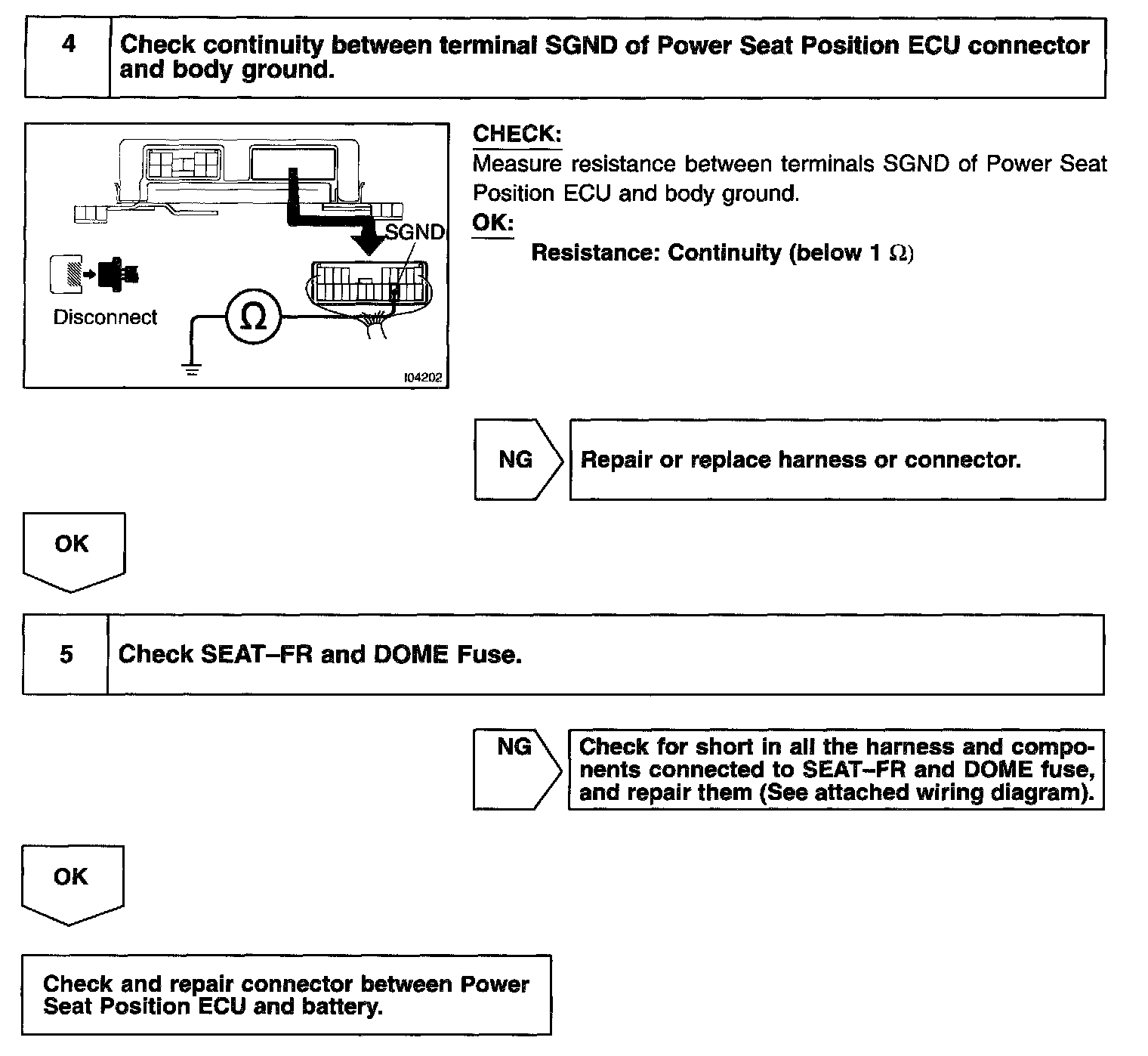

Step 4 - 5:
INSPECTION PROCEDURE
