Lexus Truck
>>
2002
>>
RX 300 FWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Rear Right Door Control System
Rear Right Door Control System

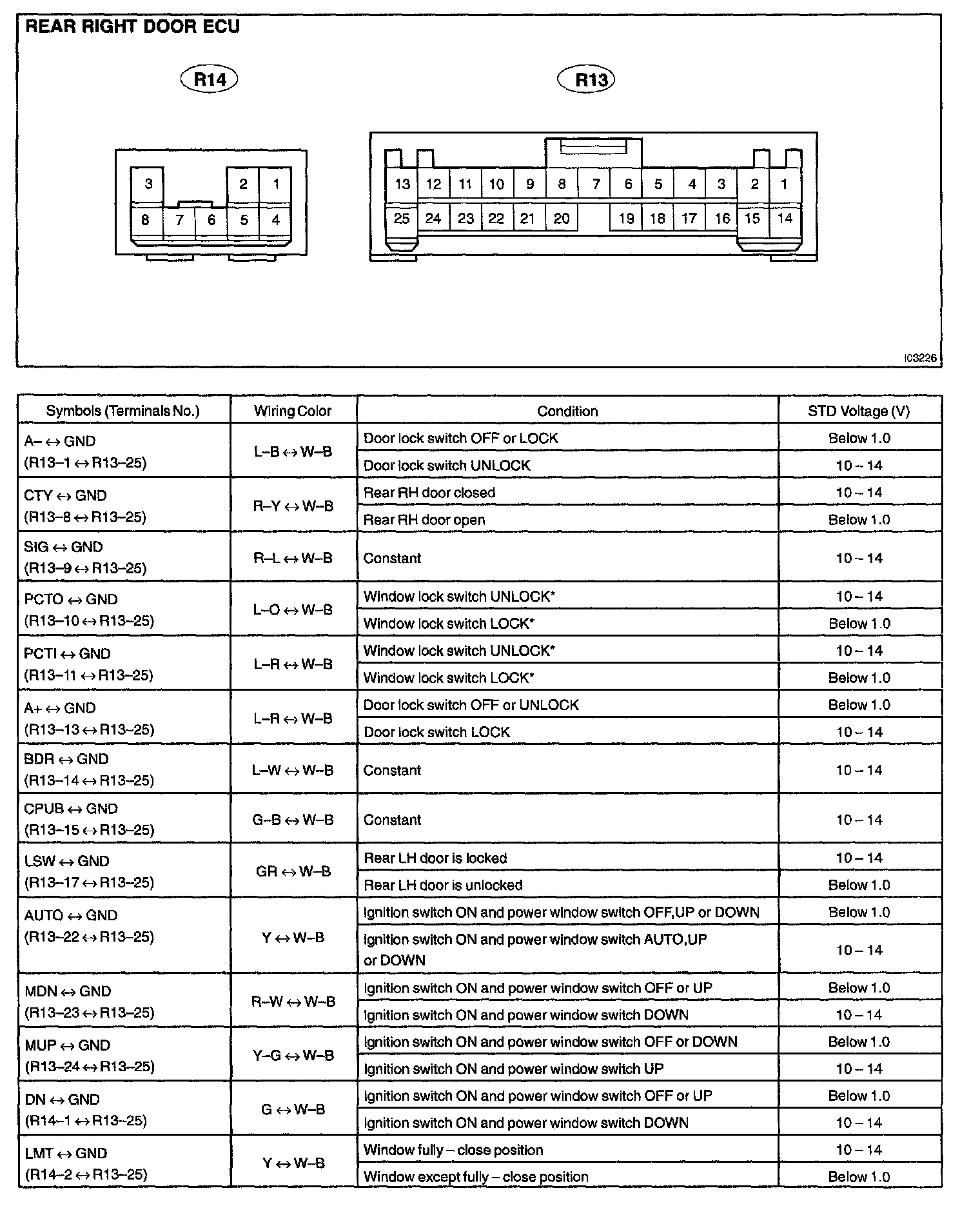

Terminals Of ECU/Pinouts Part 1:

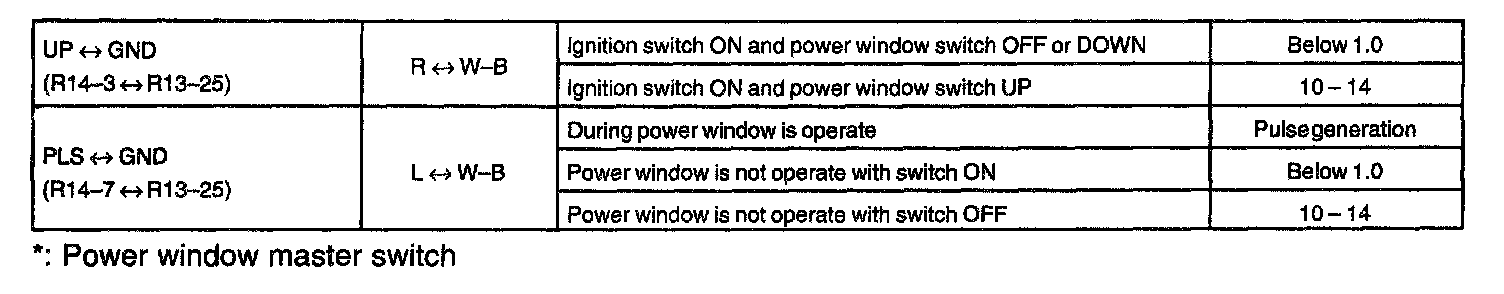

Pinouts Part 2:
