Theft Deterrent Horn Circuit
CIRCUIT DESCRIPTIONDuring warning of the theft deterrent system, the Body ECU activates the theft deterrent horn.

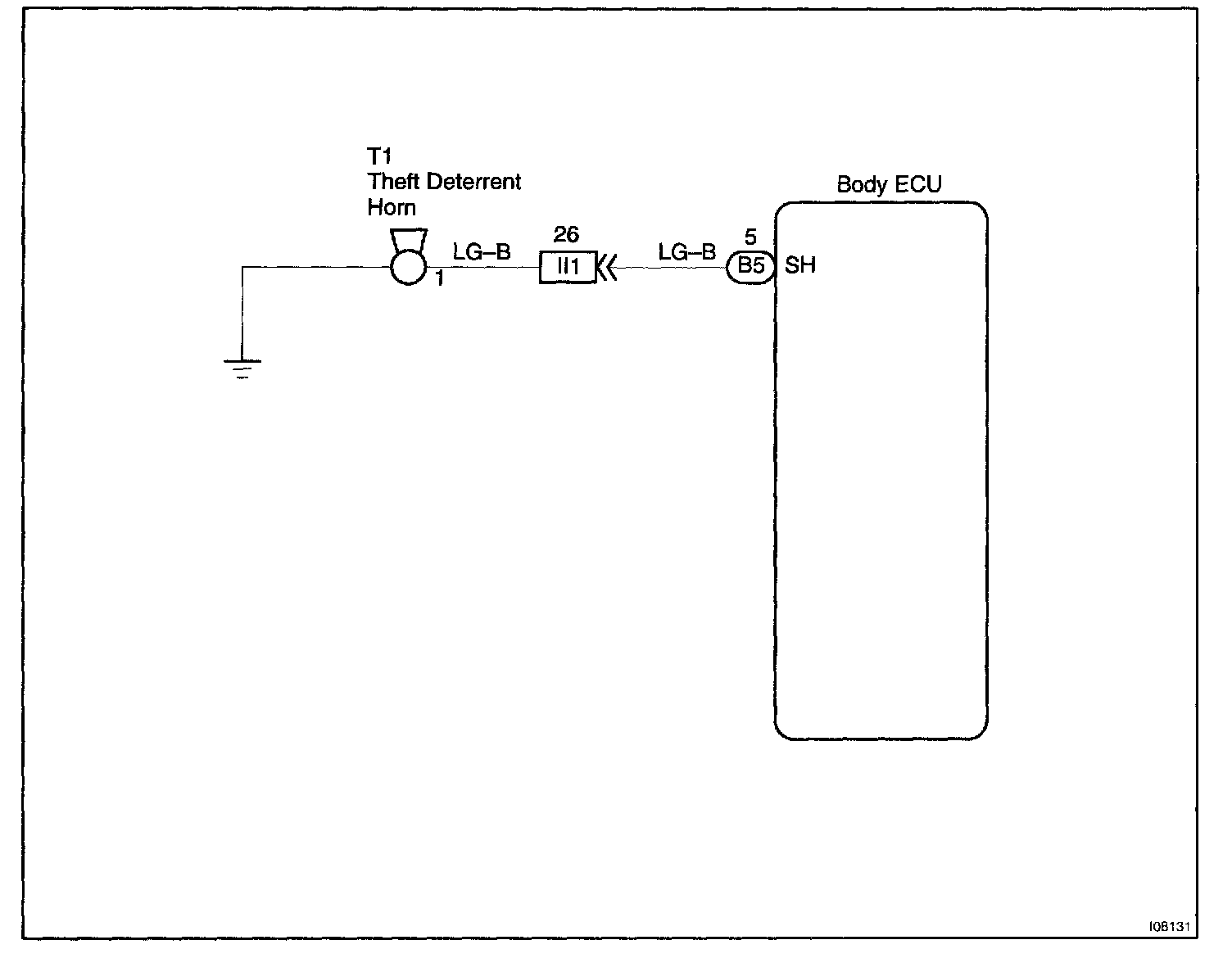

Wiring Diagram:

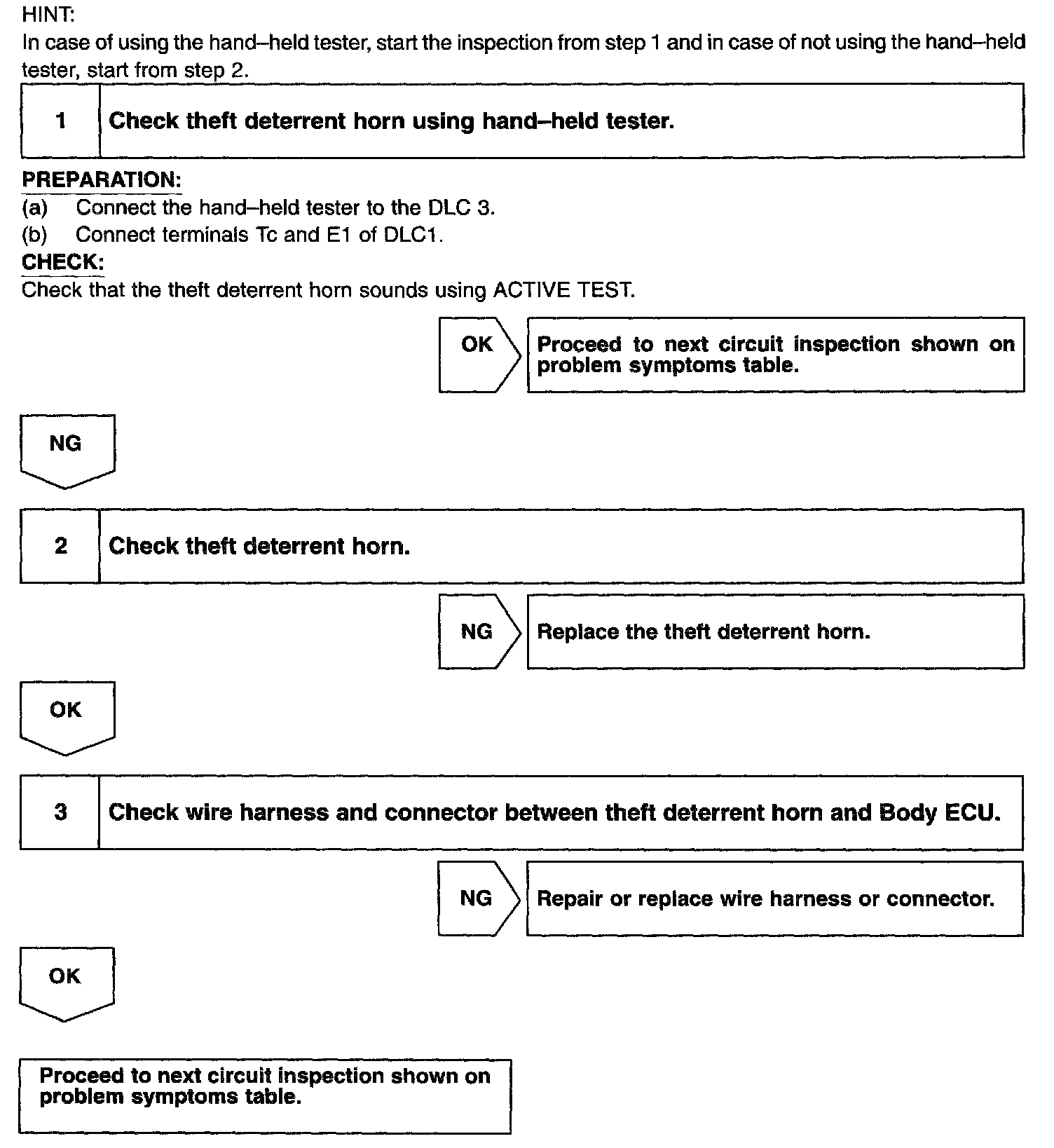

Step 1 - 3:
INSPECTION PROCEDURE
During warning of the theft deterrent system, the Body ECU activates the theft deterrent horn.
INSPECTION PROCEDURE
