Speed Sensor Circuit

CIRCUIT DESCRIPTION
If a speed of 3 km/h or more is detected in this circuit, auto-controlled operation will be stopped.

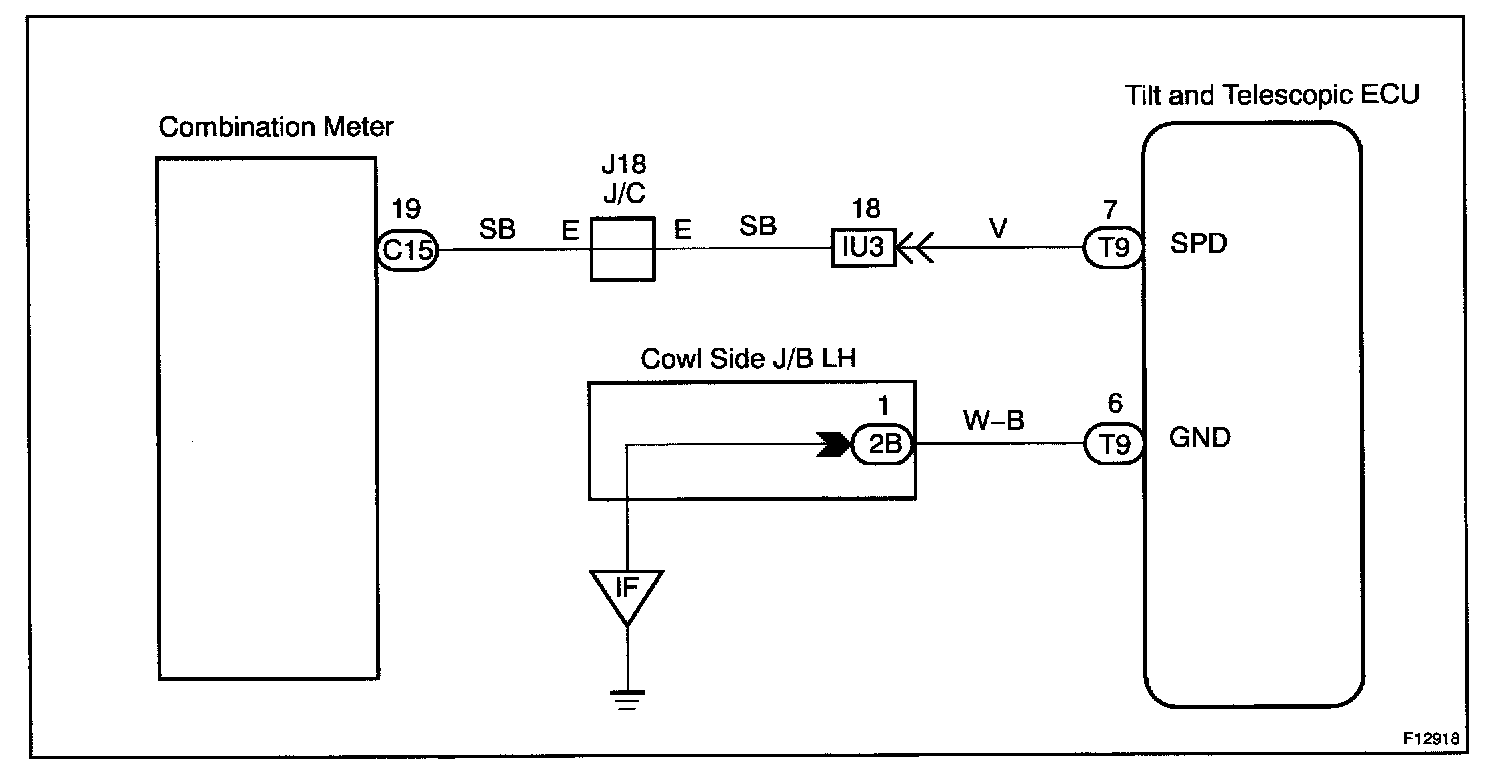

Wiring Diagram:

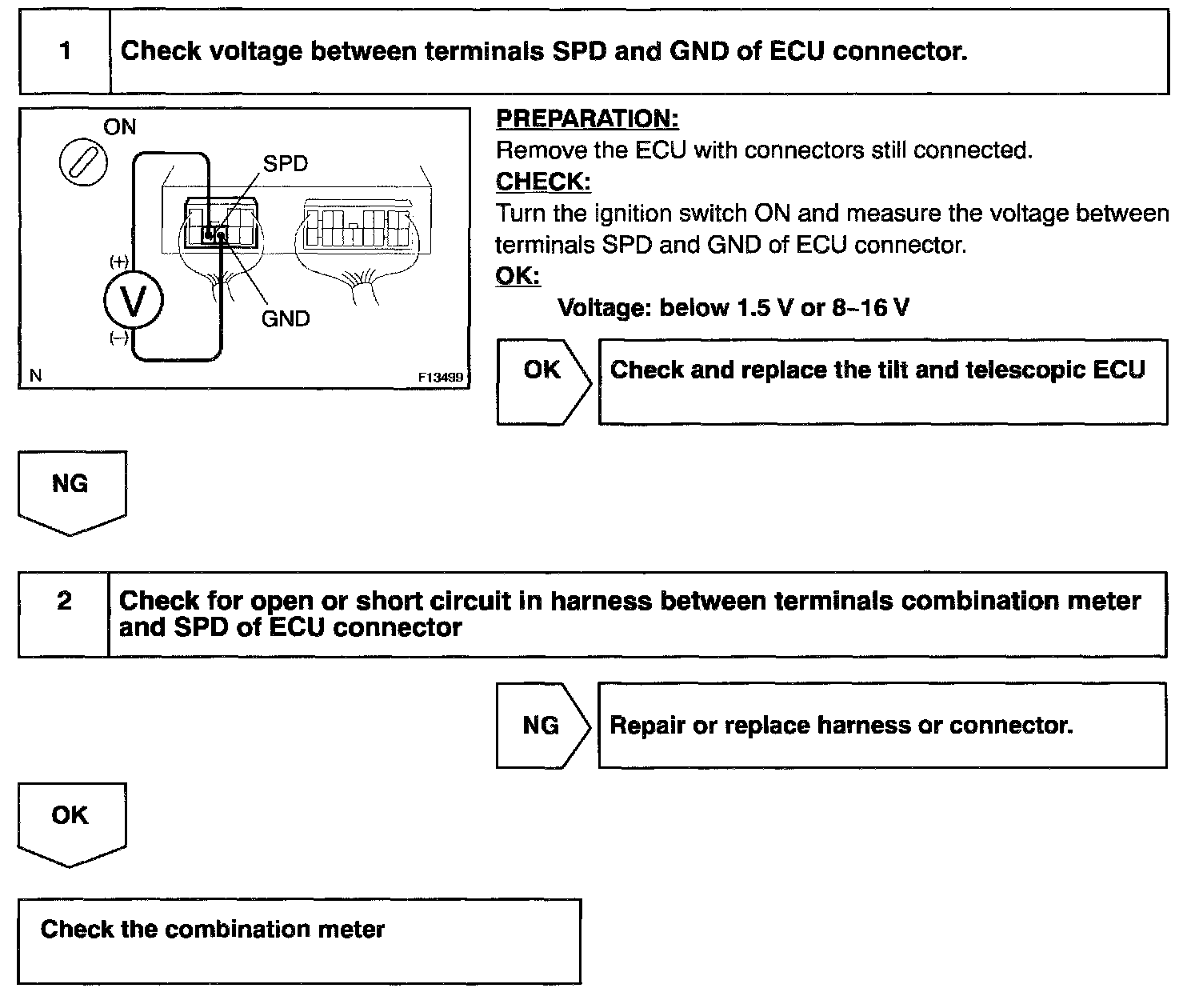

Step 1 - 2:




INSPECTION PROCEDURE
