Brake Warning, VSC Buzzer Circuit

CIRCUIT DESCRIPTION

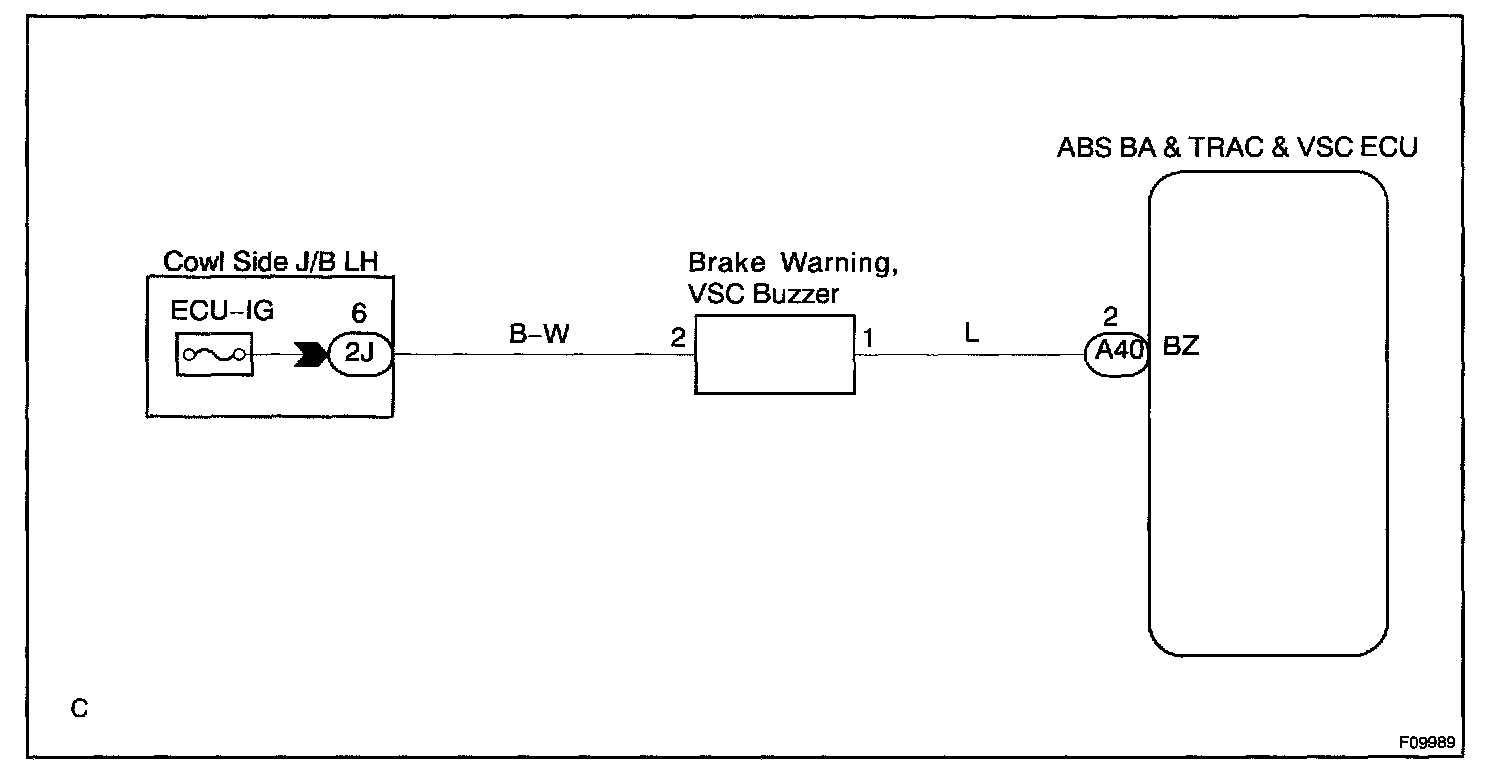

Wiring Diagram:

The brake warning, VSC buzzer sounds while the accumulator pressure is abnormally low or an abnormality casing low fluid pressure occurs VSC is activated.

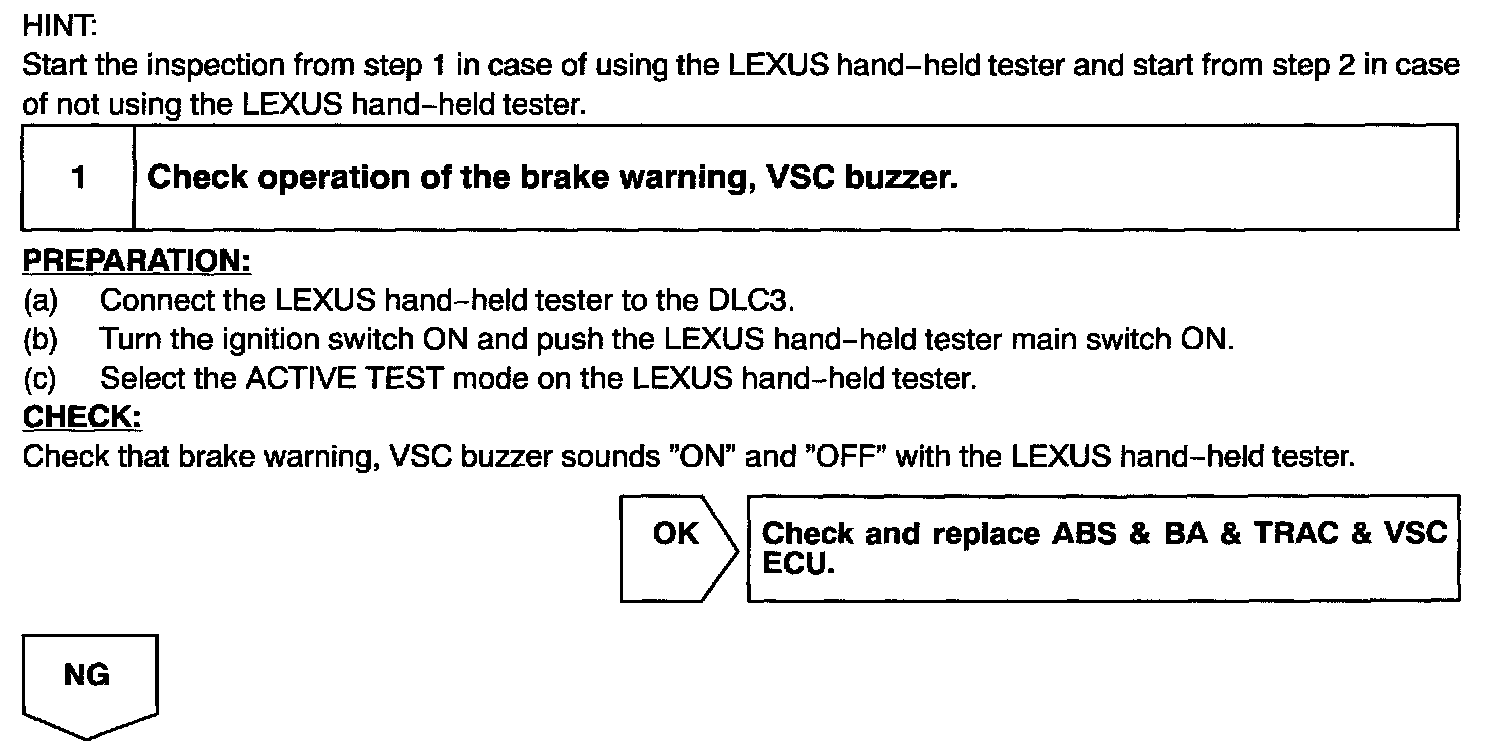

Step 1:

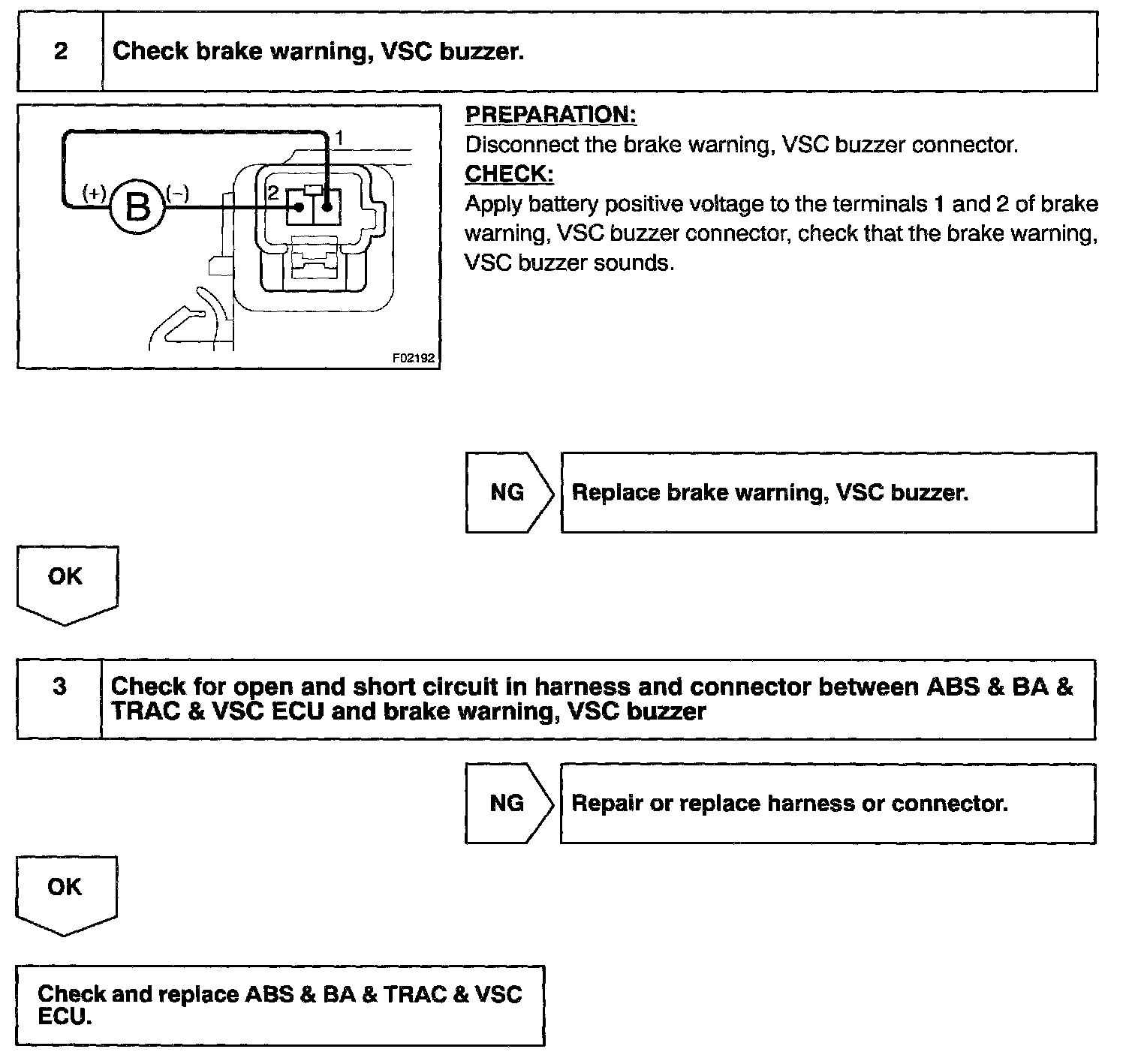

Step 2 - 3:

INSPECTION PROCEDURE
