ABS Light: Testing and Inspection

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.

Connect terminals Tc and E1 of the DLC1 or Tc and CG of DLC3 to make the ABS warning light blink and output the DTC.

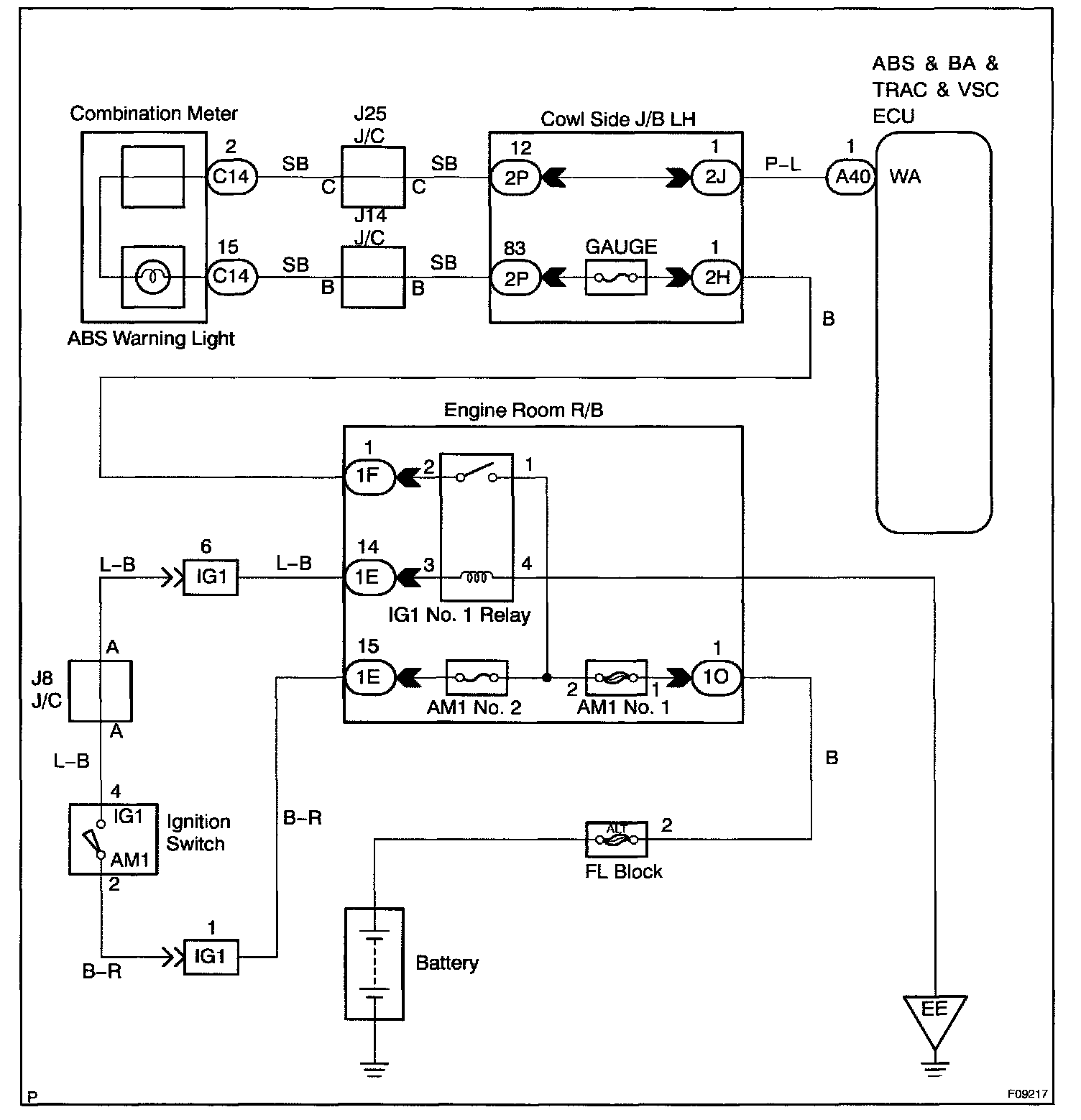

Wiring Diagram:

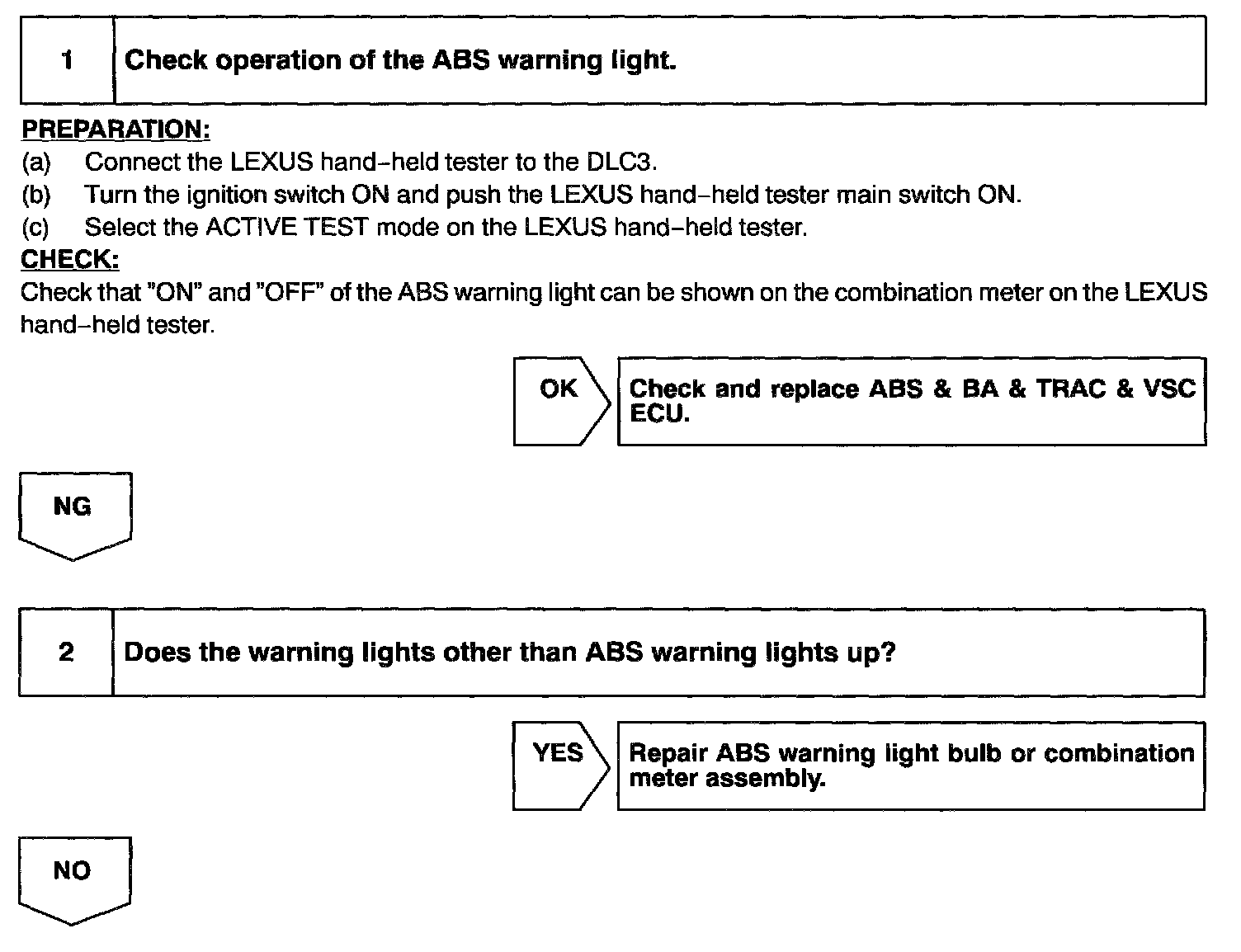

Step 1 - 2:

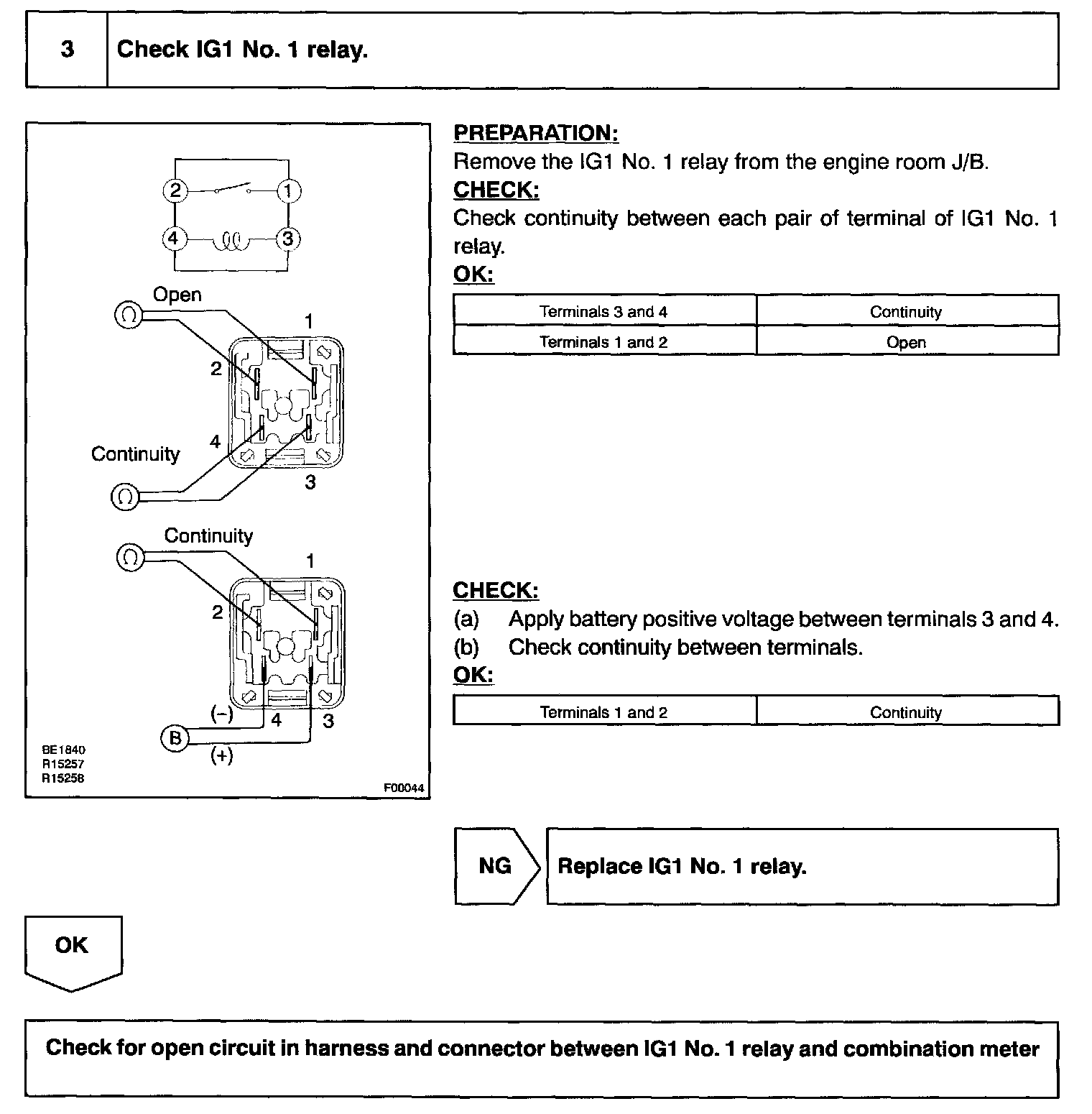

Step 3:

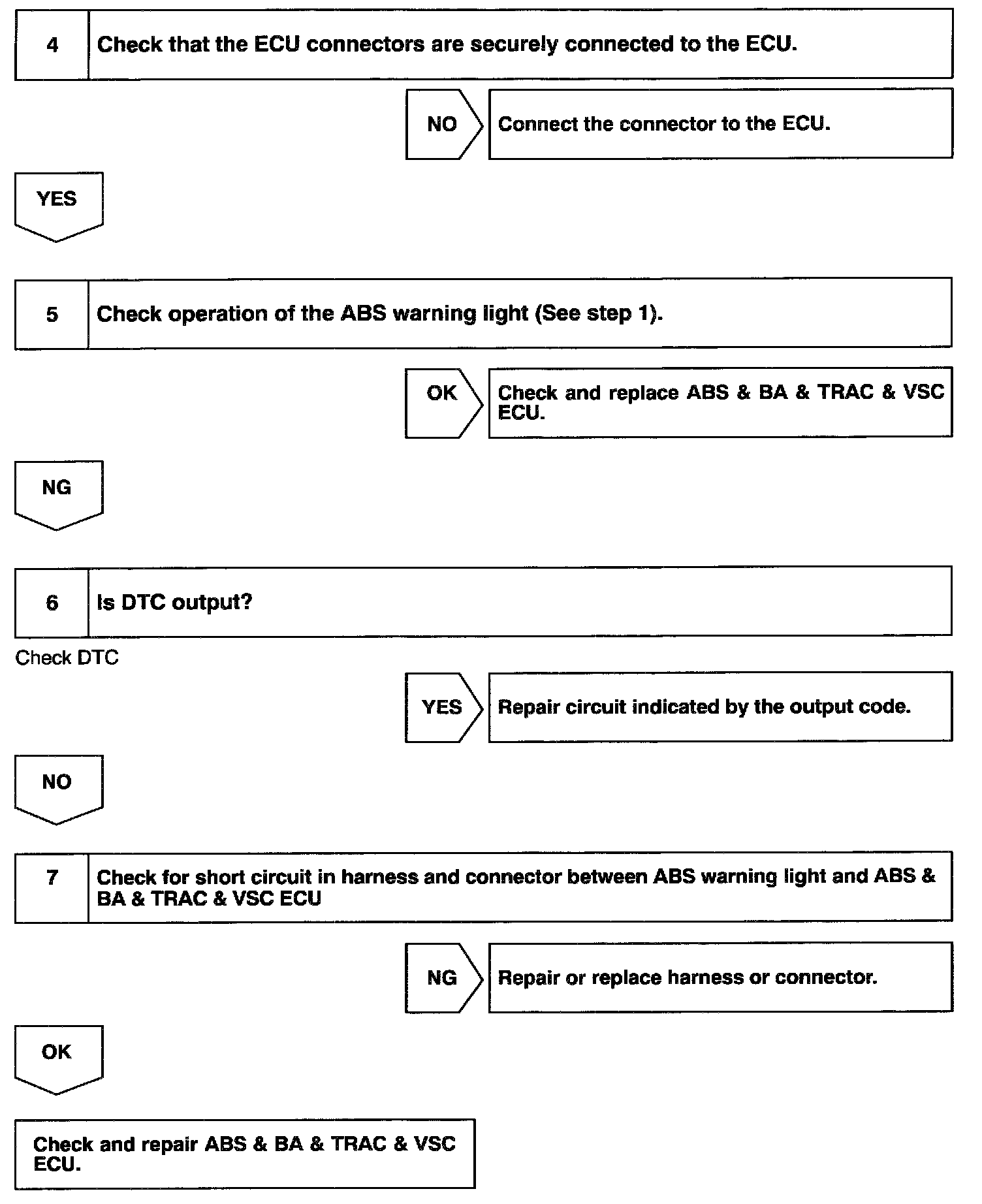

Step 4 - 7:

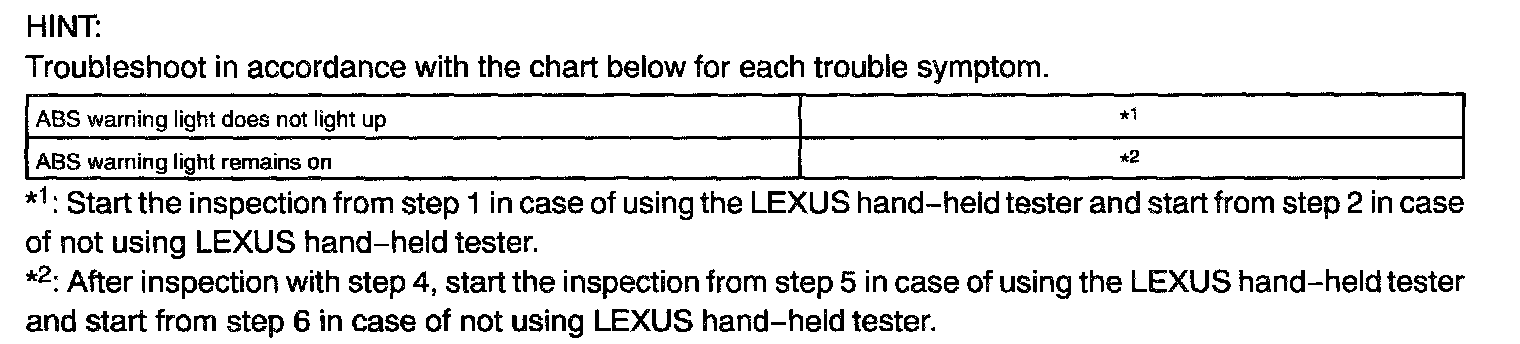

INSPECTION PROCEDURE
