Home
>>
Lexus Truck
>>
2001
>>
RX 300 FWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Valve Body
Valve Body

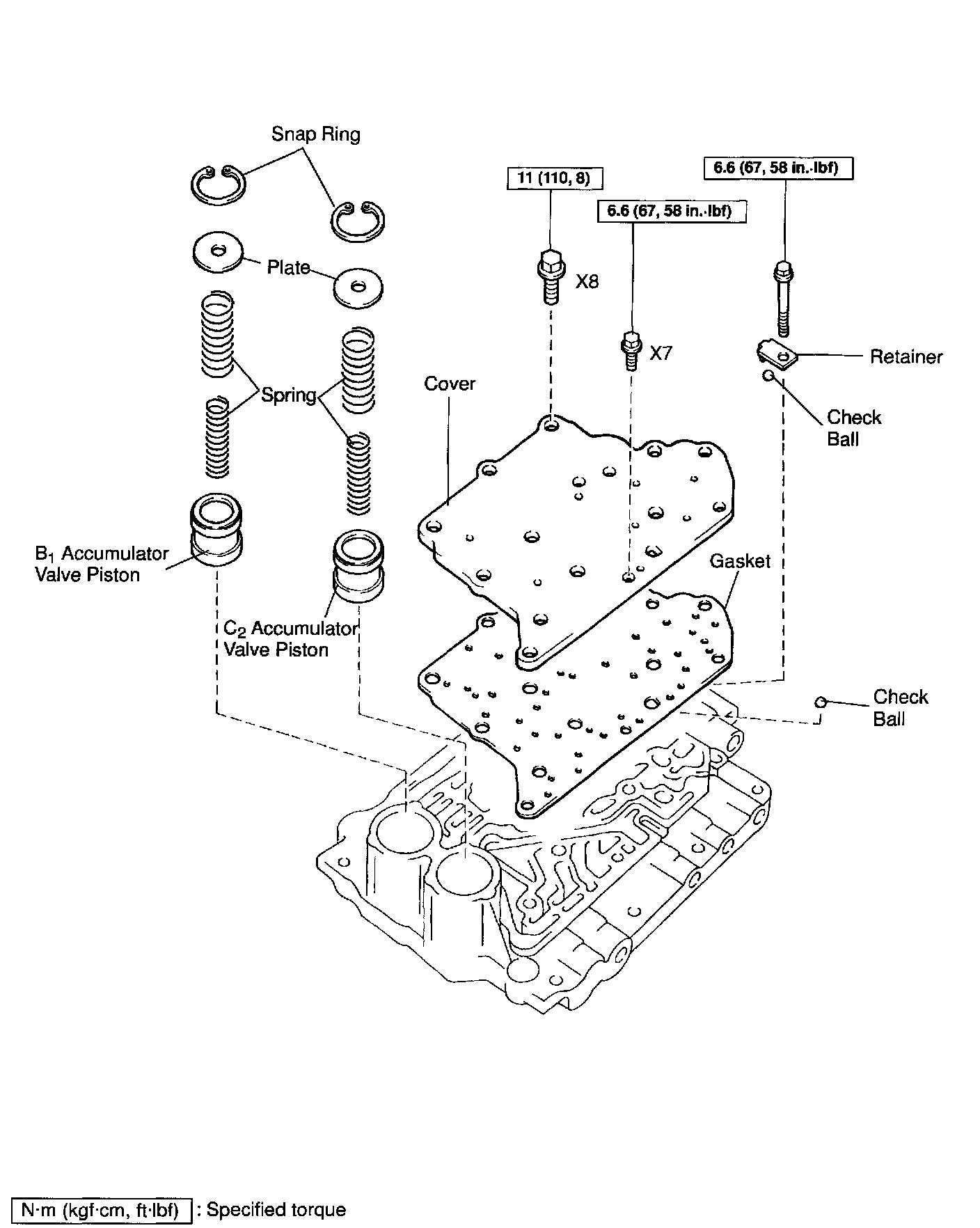

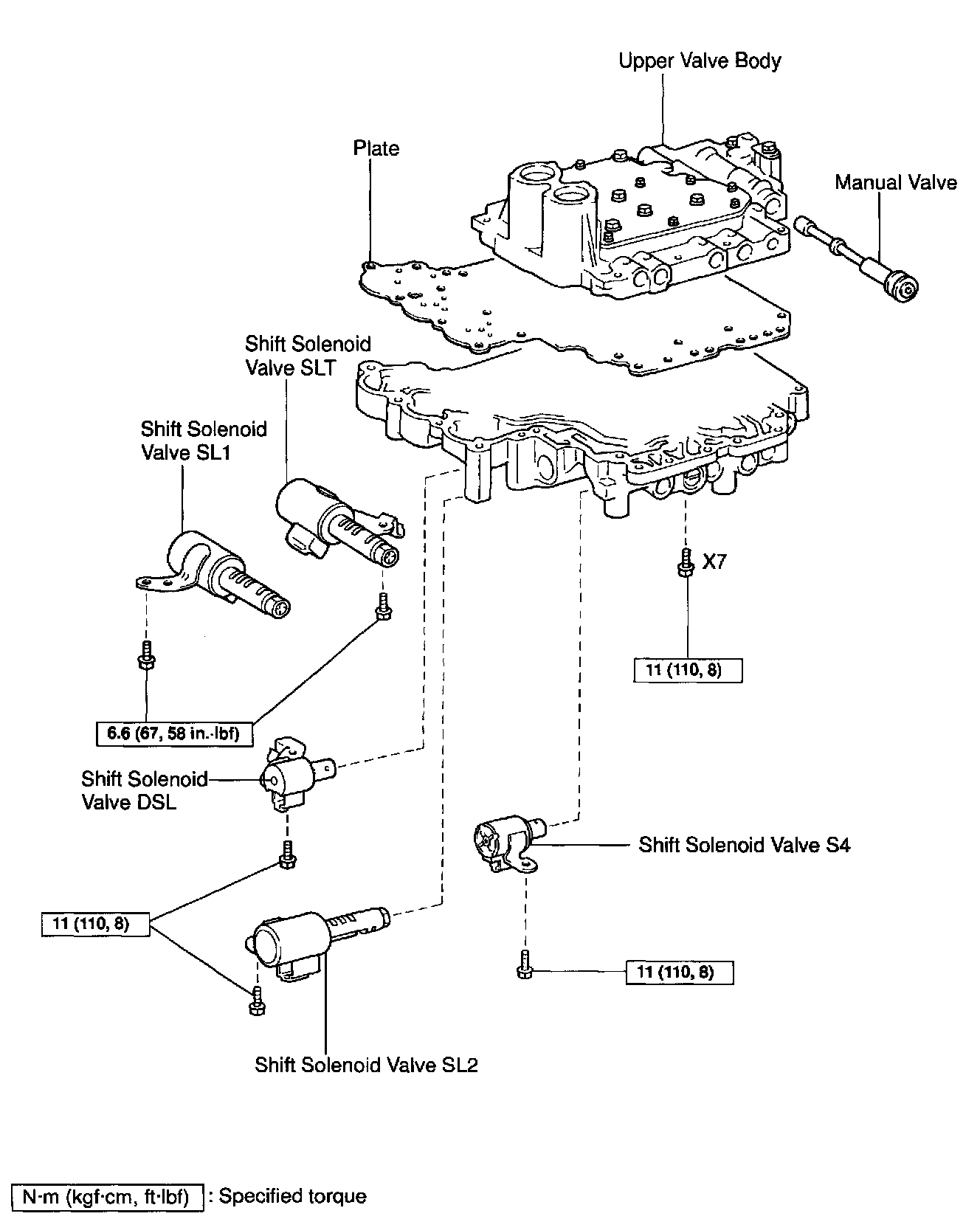

VALVE BODY OVERHAUL W/ RELATED COMPONENTS
